What Are Handheld Tire Inflators? Technical Analysis of a Small Air Compressor for Tire Inflators
In a facility management or fleet maintenance context, "handheld tire inflators" are often dismissed as consumer-grade gadgets. However, when you strip away the plastic housing, you are dealing with a fundamental engineering challenge: how to achieve high pressure from a miniature footprint without catastrophic thermal failure. For a maintenance lead or procurement officer, the question isn't just "do they work?" but rather, "is the mean time between failure (MTBF) sufficient for our utility requirements?"
Selecting a small air compressor for tire inflators requires more than a glance at the maximum PSI rating on the box. You must evaluate the Free Air Delivery (FAD), the motor’s duty cycle, and the quality of the internal seals. In industrial applications—ranging from maintaining pressure in logistics vehicle fleets to emergency utility air—the reliability of these micro-compressors can directly impact operational downtime.
Engineering the Micro-Compression Cycle
The physics of a small air compressor for tire inflators remain the same as their larger 50-HP counterparts. Air is drawn into a cylinder, compressed by a reciprocating piston, and forced through a check valve into the tire or vessel. However, at this scale, the "heat of compression" is your primary enemy.
FAD vs. Displacement
Most manufacturers list "displacement," which is a theoretical volume. As an engineer, you know that FAD (Free Air Delivery) is the only metric that matters. A pump may have a theoretical displacement of 1.5 CFM, but due to clearance volume losses and valve inefficiency at higher pressures, the actual air delivered at $30\ \text{psi}\ (2.1\ \text{bar})$ might be $30\%$ lower. When evaluating the HC5501-HC6801 small air compressor for tire inflators, you must look for a flat performance curve that maintains flow even as the backpressure in the tire increases.
Thermal Management and Duty Cycle

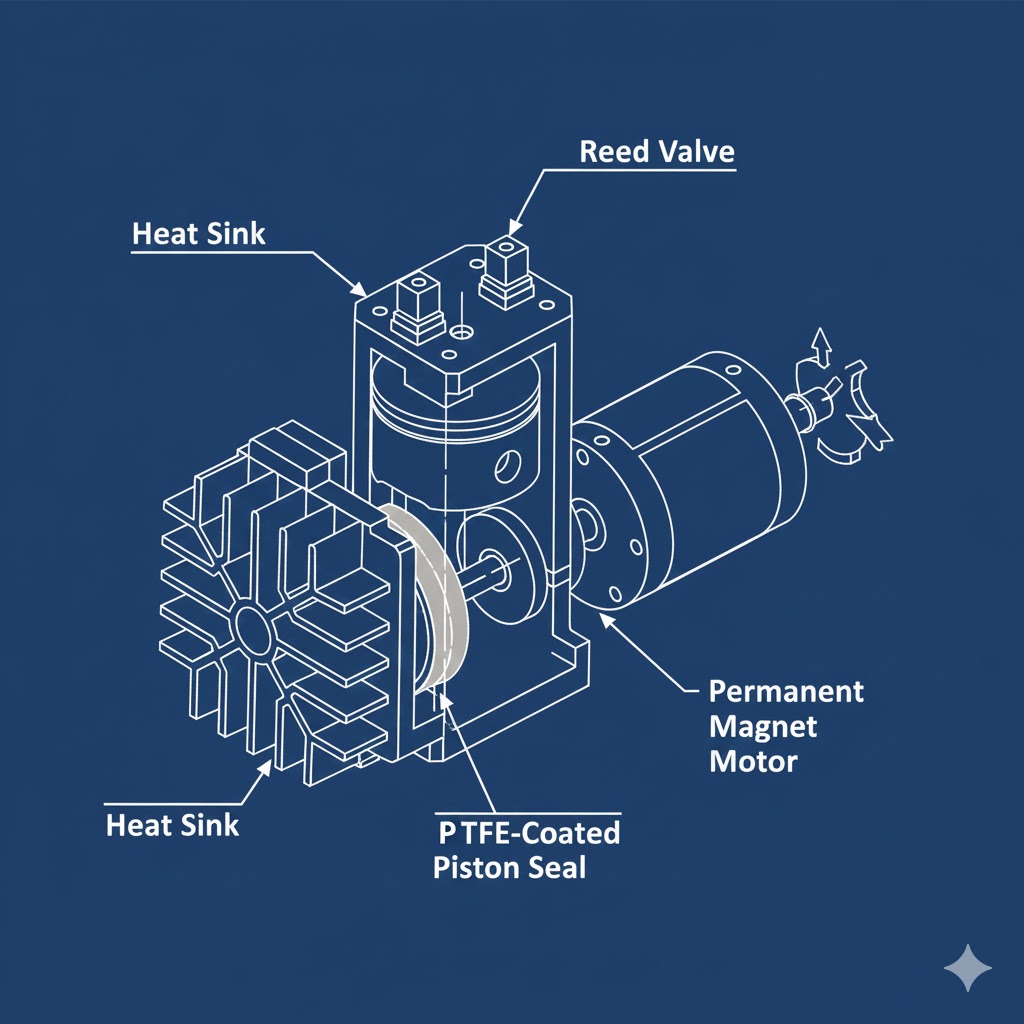

Small-scale compressors typically operate on an S3 duty cycle (intermittent periodic duty). If you attempt to use a consumer-grade unit to inflate a 22.5-inch commercial truck tire from flat, the unit will likely hit its thermal cutout or melt its PTFE seals before the task is $50\%$ complete. Industrial micro-pumps mitigate this by utilizing:
- High-conductivity aluminum alloy cylinders for rapid heat dissipation.
- Precision-machined piston rings that reduce friction-generated heat.
- Permanent magnet motors with higher electrical-to-mechanical efficiency, reducing the $I^2R$ losses that contribute to overheating.
Comparative Performance: Industrial vs. Consumer Grade
When your facility is sourcing utility equipment, the price-point of consumer units is tempting. However, the total cost of ownership (TCO) tells a different story.
| Feature | Consumer-Grade Inflator | Industrial Micro-Compressor (HC Series) |
| Motor Type | Brushed DC (Limited Life) | Brushless or High-Spec Permanent Magnet |
| Piston Seal | Simple Rubber/Plastic O-Ring | PTFE Composite with Precision Tensioning |
| Sound Level | $>85\ \text{dB}(\text{A})$ | $60–75\ \text{dB}(\text{A})$ |
| Max Pressure | $100\ \text{psi}$ (Rated, rarely achieved) | $150\ \text{psi}$ (Continuous capability) |
| Cooling | Passive (Plastic housing traps heat) | Active Heat Sinks / Metal Housing |
NOTE: In industrial environments, noise pollution is a safety concern. Choosing a unit with a lower $\text{dB}(\text{A})$ rating is not just about comfort; it is about maintaining compliance with OSHA or local noise exposure standards.
The Role of Air Quality: ISO 8573-1 Compliance
While tire inflation doesn't typically require the "Class 0" oil-free air required in pharmaceutical or food-grade applications, the presence of oil or moisture can still degrade tire liners or clog sensitive valve stems. Most small air compressor for tire inflators designs are inherently oil-less. They utilize self-lubricating materials, which is critical for long-term storage. If an oil-lubricated pump sits in a maintenance truck for six months, the lubricant can settle or degrade; an oil-less unit is ready for immediate deployment.
For broader utility use, you should still consider the ISO 8573-1:2010 classes for particles and moisture if the compressor will be used for blowing out sensitive equipment or actuators.
Case Study: Logistics Fleet Maintenance
Industry: Third-Party Logistics (3PL) Warehouse.
Problem: Frequent "low pressure" alerts on yard mules and delivery vans led to increased rolling resistance and an estimated $4\%$ fuel efficiency loss. Large shop compressors were too far from the parking areas.
Technical Solution: The facility deployed industrial-grade small air compressor for tire inflators units to each yard supervisor. These units featured high-torque motors capable of reaching $110\ \text{psi}$ without thermal shutdown.
Outcome: Average tire pressure across the fleet was maintained within $2\%$ of OEM spec, resulting in a documented $3.5\%$ reduction in fuel costs and a $15\%$ increase in tire tread life.
Maintenance and Reliability
From an applications standpoint, the "Achilles heel" of any small air compressor for tire inflators is the check valve. In cheap units, a simple rubber flap is used. Under high heat, these flaps lose elasticity and fail to seal, leading to "back-flow" where the tire actually deflates into the compressor.
Look for units that utilize stainless steel reed valves. These can withstand the high-frequency cycling and temperature spikes associated with compressing air to $100+\ \text{psi}$. Additionally, ensure the intake filter is accessible. In dusty warehouse or construction environments, a clogged $10\text{-micron}$ filter will cause the motor to work harder, increasing the $\text{kW}$ draw and shortening the life of the windings.
QUOTE: "The most expensive tool in your plant is the one that fails when an operator actually needs it. For utility air, reliability is the only metric that provides a true ROI." — Senior Maintenance Engineer.
Power Supply and Portability
You must decide between 12V DC (battery/vehicle powered) and 120V/230V AC (mains powered). For field service, a DC-powered small air compressor for tire inflators is standard, but you must account for voltage drop. If you are running a long power lead from a vehicle battery, the resistance in the wire can drop the voltage at the motor, increasing current draw and heat.
If your facility requires a stationary but "moveable" solution for a workbench, an AC-powered micro-pump is superior. It avoids the complications of battery degradation and provides a more consistent torque profile for the compression stroke. You can explore technical specifications for HC5501-HC6801 to see how different power configurations affect FAD and maximum pressure ceilings.
For more information on compressed air efficiency and standards, refer to the Compressed Air and Gas Institute (CAGI) or the US Department of Energy's Office of Energy Efficiency & Renewable Energy.
If you are currently evaluating your facility's utility air needs or need help sizing a micro-pump for a specific OEM application, contact our applications team. We can provide detailed flow curves and thermal performance data to ensure your selection meets your specific ROI requirements.
FAQ
1. How do I calculate the time required for a small air compressor to inflate a tire?
To estimate inflation time, you must know the tire's volume and the compressor's FAD at the target pressure. Use the formula: $Time = (V_{tire} \times (P_{final} - P_{initial})) / (FAD \times P_{atm})$. Note that as the pressure increases, the FAD of a small air compressor for tire inflators typically drops. In real-world industrial applications, always add a $25\%$ safety margin to account for heat-related efficiency losses. Most micro-pumps will take 3–5 minutes for a standard passenger tire, but commercial tires require significantly more volume and a higher duty cycle pump.
2. Why does my handheld inflator get extremely hot after only five minutes of use?
This is due to the "heat of compression." When you compress air, the energy used to decrease its volume is converted into heat. In a small air compressor for tire inflators, there is very little surface area to dissipate this heat. Lower-quality units use plastic shrouds that act as insulators, trapping the heat near the motor and cylinder. Industrial-grade units use metal heads and cooling fins to move this heat away. If a unit exceeds its thermal limit, the piston seals (often PTFE) can deform, leading to a permanent loss of compression and pressure-building capability.
3. Can a small air compressor be used for continuous industrial tasks?
Generally, no. Most handheld or small-scale units are designed for "intermittent duty," typically rated for 10–15 minutes of run time followed by an equal or greater cooling period. If your application requires continuous air (e.g., small-scale pneumatic actuators or constant aeration), you should look for a "100% duty cycle" rated micro-pump. These units feature larger heat sinks, often include integrated cooling fans, and utilize high-grade motor insulation (Class F or H) to withstand the constant thermal load without winding failure.
4. What is the impact of noise ($\text{dB}(\text{A})$) on the choice of a micro-compressor?
In an industrial or laboratory setting, noise is a critical factor for worker safety and comfort. A standard small air compressor for tire inflators can produce over $85\ \text{dB}(\text{A})$, which is the threshold where OSHA requires hearing protection for 8-hour exposures. High-quality reciprocating pumps use vibration isolation mounts and precision-balanced crankshafts to reduce noise to the $60–70\ \text{dB}(\text{A})$ range. Reducing vibration not only lowers noise but also extends the life of the internal bearings and electrical connections by reducing mechanical stress.
