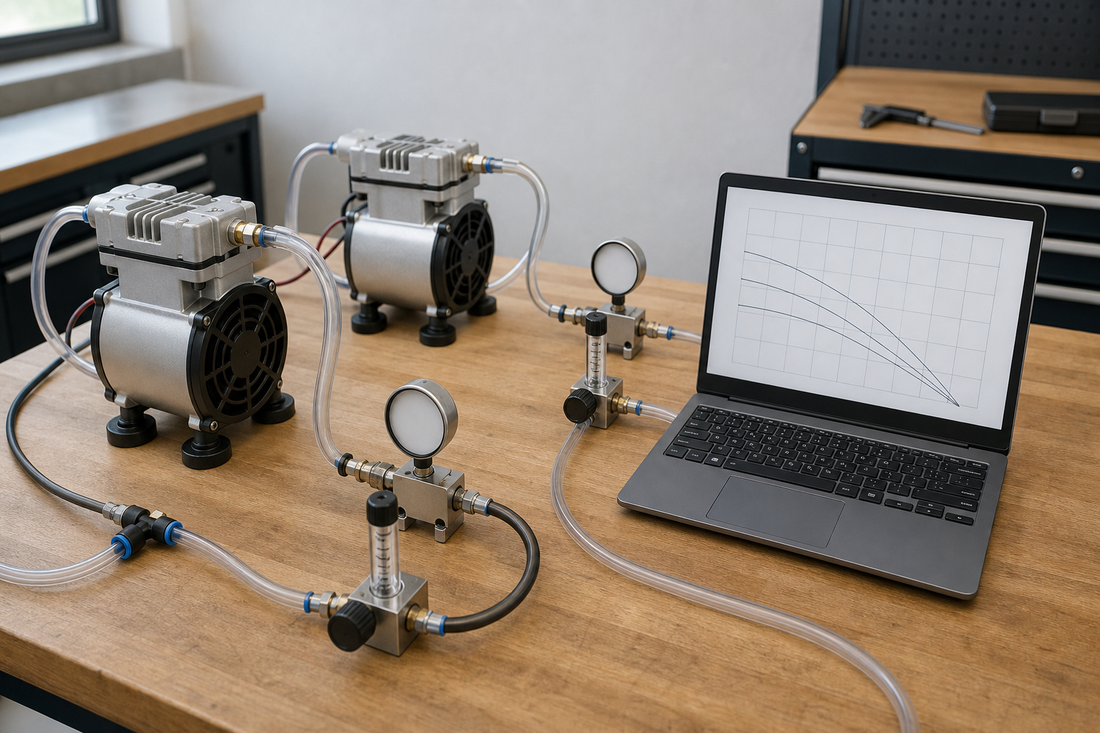

How to Request and Compare Air Pump Performance Curves
HCEM Pump TeamShare
An air pump performance curve shows how flow changes as pressure or vacuum changes, so OEM buyers can compare pumps at the real operating point instead of relying on a single rated flow value. Request the current, configuration-specific curve, test conditions, tolerances, and supporting documents before making any sourcing decision.
Quick Facts
- Best first document: Ask for the latest pressure flow curve or vacuum curve for the exact model, voltage, frequency, motor option, and intended duty condition.
- Useful comparison method: Compare pumps at the same inlet condition, outlet pressure or vacuum level, ambient assumptions, and duty cycle, not only at free flow.
- Catalog context: HCEM's Shopify catalog includes separate AC AIR COMPRESSOR PUMP and DC AIR COMPRESSOR PUMP collections.
- Page presence: The catalog includes product pages titled HC280 Oilless Air Pump, HC280D Oilless DC Air Pump, HC580 Oilless Air Pump, and HC580D Oilless DC Air Pump.
- Evidence rule: A catalog title or page presence does not prove current performance, tolerance, certification, noise, duty cycle, warranty, availability, MOQ, lead time, or production capacity.
Why a Single Rated Flow Value Is Not Enough
A listed flow value can be useful for screening, but it is not enough for an OEM purchase decision. Many air pumps show their highest flow at or near zero pressure differential. Once the application adds tubing, filters, valves, mufflers, check valves, manifolds, or a process load, the operating point moves along the air pump performance curve. Two pumps with similar free-flow ratings may deliver different flow at the pressure your equipment actually needs.
For industrial procurement teams, this matters because the pump is usually only one part of a larger pneumatic or vacuum system. A medical device, analytical instrument, packaging machine, environmental sampler, ink handling unit, or automation subsystem may have a narrow acceptable range for flow, pressure, noise, temperature rise, vibration, and electrical load. If the curve is missing, outdated, or based on a different configuration, the buyer cannot reliably judge whether a model fits the design envelope.
A disciplined air pump curve comparison starts by separating three types of information. First, there is catalog navigation, which tells you that a page or collection exists. Second, there is product-level documentation, such as a curve, datasheet, drawing, wiring diagram, or material declaration for a defined configuration. Third, there is application evidence, such as a buyer's own validation in the final assembly. These are related, but they are not interchangeable.
For example, the existence of an HC280 Oilless Air Pump page or an HC280D Oilless DC Air Pump page helps a buyer locate a product family or listing. It does not, by itself, prove the latest curve, motor winding, voltage range, tolerance band, noise value, compliance scope, or inventory status. The practical sourcing step is to request current documents for the exact model and configuration under consideration.
Buyers should also be careful with ambiguous words such as maximum, nominal, rated, typical, and standard. A maximum value may describe a short-duration or boundary condition. A typical value may not be a guaranteed minimum. A rated value may depend on a test standard, ambient condition, or duty pattern. If those details are not included, ask for them before comparing offers.
How to Read Pressure, Flow, and Vacuum Curves
An air pump performance curve usually plots flow on one axis and pressure or vacuum on the other. For pressure service, the curve often begins near maximum flow at low pressure and slopes downward as discharge pressure rises. For vacuum service, the curve may show flow falling as vacuum level increases. The exact shape depends on the pump mechanism, motor, valves, internal leakage, heat, and test conditions.
Use consistent units before comparing documents. Pressure may be shown in kPa, bar, psi, mmHg, or inHg. Flow may appear as L/min, m3/h, CFM, or another volumetric unit. Temperature, humidity, altitude, and gas composition can affect interpretation. NIST Special Publication 811 is useful when normalizing units across supplier documents, especially for global sourcing teams that receive mixed metric and imperial datasheets.
A pressure flow curve should be read together with the test note. Look for the inlet condition, outlet condition, ambient temperature, supply voltage, frequency for AC versions, motor speed if relevant, measurement method, and whether the values are typical or guaranteed. For DC pumps, voltage and control method can be especially important because speed and load can change with the electrical supply. For AC pumps, frequency and voltage variation may affect speed, heat, and output.
When a supplier provides several curves, confirm whether they represent separate models, motor options, voltage variants, or duty settings. A curve for a 12 V DC configuration should not be treated as evidence for a 24 V DC configuration unless the supplier document clearly says it covers both and explains the conditions. Likewise, a curve taken at one altitude or ambient temperature may not describe field performance in a hot enclosure or high-altitude installation.
The following table shows what to check when interpreting a curve. It is a procurement aid, not a claim about any specific HCEM product.
| Curve element | What to verify | Why it matters |
|---|---|---|
| Flow unit | L/min, CFM, m3/h, and whether flow is actual or standardized | Different flow references can change the comparison result |
| Pressure or vacuum unit | Gauge or absolute basis, and unit conversion method | A vacuum value can be misunderstood if the reference point is unclear |
| Electrical condition | Voltage, frequency, current, motor option, and control method | Output and heat may shift when the electrical condition changes |
| Tolerance | Typical curve, minimum curve, or tolerance band | OEM design margins depend on the lower expected performance, not only the average |
| Duty condition | Continuous, intermittent, or application-specific duty statement | Thermal behavior and life validation depend on duty assumptions |
| Document scope | Exact model, configuration, issue date, and revision | Older or broader documents may not match the unit being quoted |
If you need a quick teaching formula, pressure drop in a line or component can be summarized as: system pressure requirement = process pressure requirement + pressure drop across filters, tubing, valves, fittings, and silencers. Every number in that equation must come from your design or validated supplier data. If a hypothetical example uses a 20 kPa process requirement and a 5 kPa filter drop, those numbers are hypothetical assumptions only and are not product claims.
How to Match a Curve to OEM Operating Conditions
The right operating point is where the pump curve intersects the system resistance or process requirement. In practice, buyers often begin with a target flow and pressure, then check whether the pump can deliver that flow with margin under the worst expected conditions. Worst conditions may include low supply voltage, high ambient temperature, partially loaded filters, long tubing runs, altitude, or enclosure heat.
For OEM air pump sourcing, define the operating condition in writing before asking suppliers to quote. A clear request may include target flow, minimum acceptable flow, pressure or vacuum level, inlet and outlet restrictions, duty cycle, ambient range, acoustic target, allowed current draw, mounting orientation, expected life validation method, and any market-specific documentation needs. If compliance is relevant, do not accept a broad claim. Request current exact-model and configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, and configuration covered.
System resistance is often underestimated. A pump may look suitable when tested with an open outlet, then fall short after the design adds a filter, needle valve, water trap, membrane, manifold, or muffler. The U.S. Department of Energy compressed-air systems resources emphasize system-level thinking for compressed air performance. While OEM miniature and compact pumps differ from plant-scale compressed air systems, the same procurement lesson applies: evaluate the pump and the system together.
For an air pump curve comparison, align the data before ranking suppliers. Convert units, mark the required operating point, and review the curve at that point. Then ask whether the supplier can provide a tolerance band or minimum guaranteed flow under stated conditions. If only a typical curve is available, the buyer should decide whether additional design margin, sample testing, or a revised specification is needed.
Noise and temperature should also be treated as separate evidence items. A performance curve does not automatically prove acoustic performance, surface temperature, internal temperature, or acceptable duty. If your product has enclosure constraints or user-facing noise limits, request current configuration-specific noise data and thermal guidance. If the supplier cannot provide enough information, validate with samples in the final assembly before release.
A practical comparison file can include one chart with all candidate curves and one table listing the document basis for each curve. This prevents a common mistake: comparing one supplier's typical free-flow value against another supplier's guaranteed flow at pressure. It also helps purchasing, engineering, and quality teams discuss the same evidence instead of relying on isolated catalog values.
Air Pump Curve Request Checklist
Use the checklist below when requesting an air pump performance curve from HCEM or any other oil-free air and vacuum pump supplier. It is designed for OEM buyers, distributors, and industrial procurement teams that need comparable evidence rather than general catalog descriptions.
- Identify the exact item: Provide the model name or page reference, but ask the supplier to confirm the exact configuration, voltage, motor option, connector, mounting, and revision being quoted.
- State the operating point: Specify required flow, pressure or vacuum, inlet condition, outlet condition, ambient temperature, altitude if relevant, and whether the flow is minimum, nominal, or target.
- Request the curve: Ask for the current pressure flow curve or vacuum curve for that configuration, including units, test method, issue date, and whether values are typical or guaranteed.
- Ask for tolerance information: Request a tolerance band, minimum curve, or explanation of production variation if the design depends on tight margins.
- Separate performance from compliance: If certifications, declarations, or market approvals matter, request current exact-model evidence and verify scope, issuer or lab, issue date, and configuration.
- Confirm duty and environment: Ask for applicable duty guidance, cooling assumptions, ambient range, and any limits that affect continuous or intermittent operation.
- Request supporting documents: Ask for dimensional drawings, wiring details, material or regulatory documents when needed, but avoid treating unrelated documents as proof of curve performance.
- Plan sample validation: Use supplier documents for screening, then validate samples in your actual assembly with filters, tubing, valves, firmware, enclosure, and power supply installed.
HCEM's Shopify site also includes an ODM/OEM page, a resource center, a pressure-drop calculator, and a Contact HCEM page. Those page types can support the sourcing workflow, but buyers should still request current configuration-specific documents rather than infer performance from page presence.
For a restrained next step, send your required operating point, target units, and document needs through Contact HCEM and ask for the current curve and evidence package for the exact configuration under review.
FAQs
What is an air pump performance curve?
An air pump performance curve is a graph that shows how flow changes as pressure or vacuum changes. It helps buyers estimate pump output at a real operating point instead of relying only on a free-flow or single rated value.
How should I compare AC and DC air pump curves?
Compare them at the same required pressure or vacuum, flow unit, ambient condition, and duty condition. For AC pumps, verify voltage and frequency. For DC pumps, verify voltage, control method, and motor configuration. Do not assume curves transfer across configurations.
Does a product page prove the current pressure flow curve?
No. A product page title proves that the page exists, not the current curve, tolerance, duty cycle, noise, certification, warranty, availability, MOQ, lead time, or production capacity. Request current documents for the exact configuration.
What if the supplier only provides a typical curve?
A typical curve can support early screening, but it may not be enough for release decisions. Ask for tolerance information, a minimum curve, or sample validation data from your own assembly before locking the design.
Which documents should procurement keep with the quote?
Keep the curve, datasheet, drawing, configuration description, revision or issue date, test conditions, tolerance statement, and any required compliance evidence. Match every document to the exact model and configuration being purchased.
