Are Portable Air Compressors Safe? A Professional Engineering Audit
Operating a portable air compressor on an industrial job site or within a plant facility involves managing significant stored energy and mechanical risks. For plant managers and maintenance leads, the question of safety is not merely about the equipment's brand but about its compliance with ASME (American Society of Mechanical Engineers) standards, pressure vessel integrity, and operational protocols. When properly sized, maintained, and operated within its specified Free Air Delivery (FAD) limits, a high-quality unit is exceptionally safe. However, negligence in moisture management or pressure relief testing can transform a vital utility into a high-risk liability.

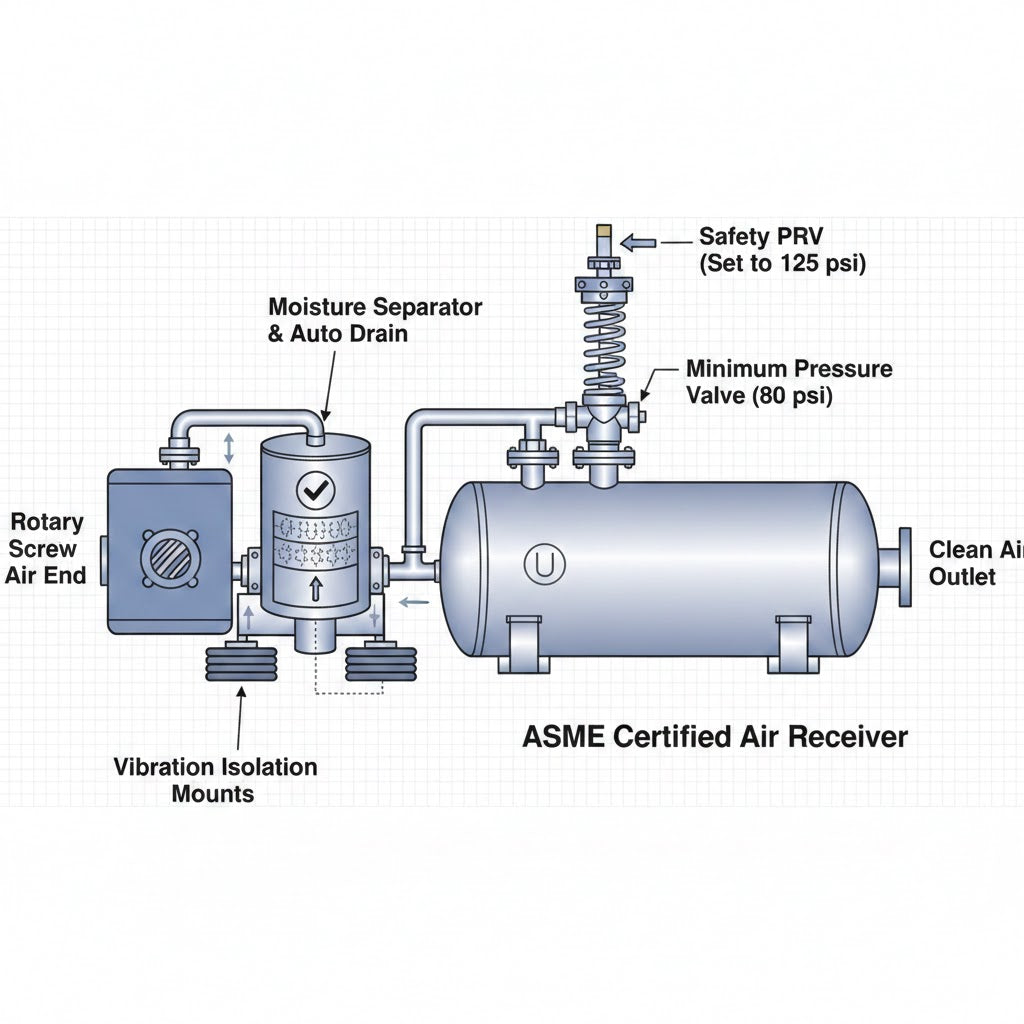

Pressure Vessel Integrity in Your Portable Air Compressor
The receiver tank is the most critical safety component of any portable air compressor. These vessels store compressed air at pressures ranging from $90\ \text{psi}$ ($6.2\ \text{bar}$) to $175\ \text{psi}$ ($12\ \text{bar}$) or higher. Under federal and international safety guidelines, any vessel operating above $15\ \text{psi}$ must adhere to strict manufacturing codes.
ASME Section VIII Compliance
You must verify that the receiver tank on your portable air compressor carries the "U" or "UM" stamp, indicating it was constructed according to ASME Section VIII Division 1. This certification ensures the steel thickness and weld quality can withstand the cyclic loading of compression. In many jurisdictions, an uncertified tank is a direct OSHA violation and a significant insurance risk.
Corrosion and Drainage
The primary cause of catastrophic tank failure is internal corrosion. As air is compressed, moisture precipitates. If the unit lacks an automatic drain or if the operator fails to manual-drain the tank daily, water sits at the bottom, thinning the metal over time. In a high-duty-cycle industrial {Product Name}({Product URL}), integrated moisture separators are standard to mitigate this risk.
Noise Attenuation and $\text{dB}(\text{A})$ Compliance for Portable Air Compressor Units
Industrial safety extends beyond mechanical failure to the physiological impact on your crew. A standard diesel-driven portable air compressor can generate noise levels exceeding $100\ \text{dB}(\text{A})$ at full load.
OSHA and Hearing Conservation
OSHA 1910.95 mandates that employees should not be exposed to noise levels above $90\ \text{dB}(\text{A})$ for an eight-hour TWA (Time Weighted Average). To ensure safety, modern units utilize acoustic enclosures that drop the noise to $70$–$76\ \text{dB}(\text{A})$ at 7 meters. If your current equipment lacks these enclosures, you must implement strict hearing conservation programs and exclusion zones.
Specific Power and Heat Management
Safety is also tied to thermal stability. A unit with a high specific power (e.g., exceeding $22\ \text{kW}/100\ \text{cfm}$) generates excessive heat. If the cooling system is obstructed by dust or debris, the discharge temperature can exceed $200^\circ\text{F}$ ($93^\circ\text{C}$), risking oil fires or "runaway" conditions in oil-injected screw compressors. High-end units feature automatic high-temp shutdown switches to prevent these scenarios.
NOTE: Always verify that your pressure relief valve (PRV) is set at $10\%$ above the maximum operating pressure and is tested monthly to ensure it hasn't "vibrated shut" or corroded into place.
Air Quality and ISO 8573-1 Standards
Safety often concerns the air being delivered to the tool or the worker. For applications involving breathing air or sensitive pneumatic controls, the purity of the air coming from your portable air compressor is paramount.
ISO 8573-1:2010 classifies air quality based on solid particles, water, and oil.
- Class 1.4.1: Common for high-quality industrial air.
- Class 0: Necessary for pharmaceutical or food-grade applications where zero oil carryover is permitted.
Using a standard oil-injected unit for sandblasting without proper filtration can lead to oil mist inhalation, which is a severe health hazard. Ensure your filtration chain includes particulate, coalescing, and potentially charcoal filters to maintain a safe working environment. You can [explore technical specifications]({Product URL}) to find the appropriate filtration grades for your specific application.
Comparing Technology: Electric vs. Diesel Portability
The power source of your portable air compressor dictates its safety profile in different environments.
| Feature | Electric Portable Compressor | Diesel Portable Compressor |
| Emission Risk | Zero emissions; safe for indoor use. | High CO/NOx; requires ventilation. |
| Noise Level | Typically $65$–$72\ \text{dB}(\text{A})$. | Typically $75$–$85\ \text{dB}(\text{A})$ (enclosed). |
| Electrical Hazard | Requires GFCI and proper grounding. | Minimal electrical risk. |
| Maintenance | Lower; no fuel or cooling systems. | Higher; requires fuel/oil management. |
| Primary Safety Concern | Cable trip hazards and arc flash. | Flammable fuel storage and exhaust heat. |
Practical Field Maintenance and Reliability
Safety in the field is a product of rigorous maintenance. A portable air compressor that is neglected will eventually become a hazard.
Hose Safety and Whip Checks
One of the most common injuries involves "whipping" hoses. If a coupling fails under $100\ \text{psi}$, the hose becomes a lethal projectile. Every connection on your portable air compressor must be secured with a "whip check" safety cable. These simple steel cables prevent the hose from thrashing if the coupling disconnects.
Mini Case Study: Marine Maintenance Facility
A shipyard in Singapore was using an aging portable air compressor for grit blasting. Due to a failed moisture separator and a bypassed thermal shutdown switch, the unit's air end overheated, causing a flash fire in the discharge hose. The facility transitioned to a fleet of VSD-controlled electric units with integrated aftercoolers. This shift reduced their energy consumption by $25\%$ and eliminated the risk of internal oil combustion, significantly improving site safety.
Managing Residual Risk: The Human Factor
Even the most technologically advanced portable air compressor can be dangerous if the operator lacks training.
- Blow-down procedures: Ensure operators know how to safely depressurize the system before disconnecting any lines.
- Towing Safety: For trailer-mounted units, verify tire pressure and lug nut torque. A runaway compressor on a highway is a catastrophic safety failure.
- Vibration Monitoring: Excessive vibration can lead to metal fatigue in piping. Ensure the unit is level and the vibration isolators are intact.
For further guidance on system safety and efficiency, refer to the Compressed Air and Gas Institute (CAGI) or the U.S. Department of Energy (DOE) resources on industrial utility management.
Implementing these safety protocols protects your personnel and ensures your equipment reaches its maximum ROI through reduced downtime and liability. If you are unsure about your current system's compliance, consult with a certified applications engineer to conduct a site audit and pressure vessel inspection.
FAQ
How often should I test the safety relief valves on a portable air compressor?
In an industrial setting, you should manually "pop" the safety relief valve at least once a month. This ensures that the internal spring and seat have not become seized due to oil varnish or environmental contaminants. Additionally, these valves should be replaced every 3-5 years, depending on the manufacturer's recommendation and the severity of the operating environment. Failure to test these valves can lead to over-pressurization of the receiver tank, which is a primary cause of catastrophic vessel failure.
Can I safely use a diesel portable air compressor inside a warehouse?
No. Operating a diesel-driven portable air compressor indoors is a violation of safety standards due to the risk of Carbon Monoxide (CO) poisoning. Even with large bay doors open, exhaust gases can pocket in corners or upper mezzanines. If you require portable air indoors, you must use an electric-driven unit. These units provide the same FAD (Free Air Delivery) without the emission of toxic fumes or the fire hazard associated with on-site fuel storage.
What is the safe operating temperature for a portable air compressor?
Most industrial rotary screw units are designed to operate with a discharge temperature between $180^\circ\text{F}$ and $200^\circ\text{F}$ ($82^\circ\text{C}$–$93^\circ\text{C}$). If the temperature exceeds $220^\circ\text{F}$ ($104^\circ\text{C}$), the unit should automatically shut down. Operating at elevated temperatures degrades the lubricating oil, reduces the efficiency of the air end, and increases the risk of an oil fire within the separator tank. Regular cleaning of the oil cooler and ensuring adequate ambient airflow are essential for maintaining these safe temperature ranges.
Is it safe to use PVC piping with a portable air compressor?
Absolutely not. PVC and most other plastic piping are not rated for compressed air. When PVC fails under pressure, it shatters into sharp, high-velocity shrapnel. For temporary or permanent headers connected to your portable air compressor, always use ASME-rated steel, copper, or specifically engineered aluminum piping systems. Ensure that any flexible hoses used for portability are rated for at least $150\%$ of the maximum operating pressure of the compressor.
