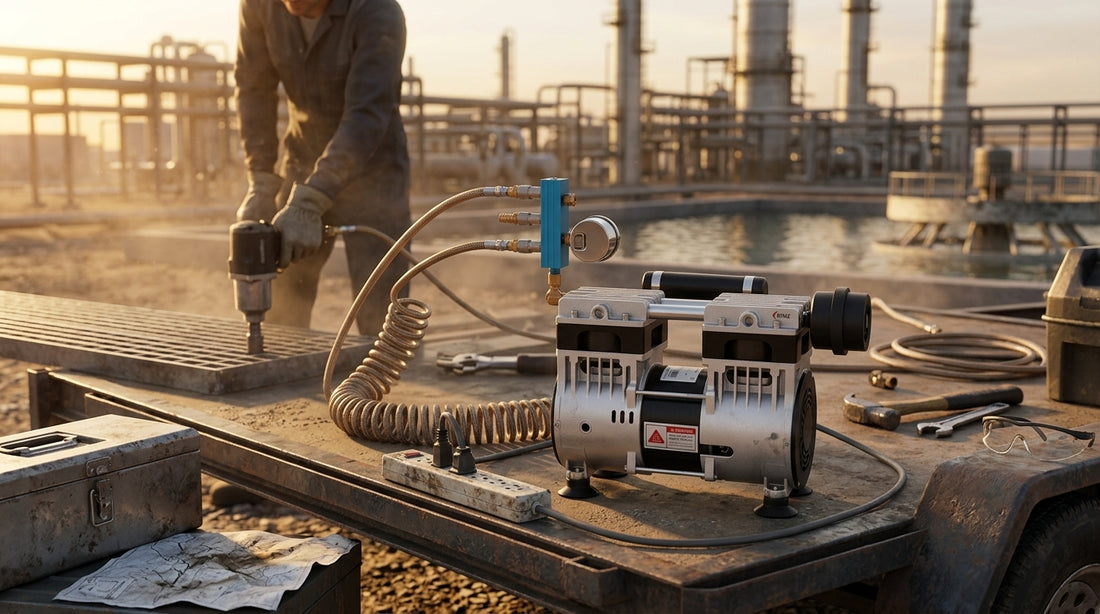

Oil Refinery Pond Aerator Pump Troubleshooting: Curing the Daily 20A Breaker Trip

It happens at 2:00 AM. The control room alarm flashes, indicating the biological treatment basin has lost agitation.

If you are handling oil refinery pond aerator pump troubleshooting, a daily 20A breaker trip usually points to a thermal or mechanical overload rather than a simple electrical fault. When I audited a 60,000 sq ft automotive coatings plant last year, the air intake was undersized by 30% — causing the main compressor to overheat and trigger shutdown sequences every summer. Similarly, in wastewater applications, ignoring the aeration equipment’s specific operating parameters degrades effluent quality fast.

Upgrading to the HC580A Pond Aerator Pump can stabilize produced water aeration, provided the underlying system constraints are resolved first.

Symptom Checklist: Is This Your Problem?

Before disassembling the equipment, observe the operating parameters under load. A tripping breaker leaves specific forensic clues:

• Current draw spikes above 18.5A during startup = check the starting capacitor and calculate the voltage drop from the main panel.
• Breaker trips after 45 minutes of continuous duty cycle = suspect thermal expansion in the rotor assembly or heavily blocked external cooling fins.
• Dissolved oxygen mg/L drops below 2.0 mg/L before the trip = inspect thediffuser grid for severe bio-fouling or mineral scaling, which artificially creates head pressure on the blower. But replacing the breaker without measuring the actual phase resistance only masks the real mechanical failure.

To diagnose the system accurately, you must trace the pneumatic and electrical pathways simultaneously.

Root Cause #1: High Backpressure Complicating Oil Refinery Pond Aerator Pump Troubleshooting

When pushing exactly 120 CFM of air through submerged EPDM diffusers, the compressor expects a predictable, factory-tested resistance curve. In wastewater applications, the fluid characteristics change constantly. As crude oil residuals, heavy metals, and suspended solids precipitate out of the produced water, they rapidly coat the microscopic slits in the diffuser membranes. This biological and chemical coating increases the system backpressure from a nominal 0.45 bar (6.5 psi) up to 0.82 bar (11.9 psi).

This forces the motor to work harder, increasing the 220V power draw beyond the breaker’s trip curve. The U.S. DOE Compressed Air Challenge documents how a 2 psig increase in system pressure requires a 1% increase in energy consumption, but in positive displacement blowers, the current spike is exponential as slip increases. Effective oil refinery pond aerator pump troubleshooting requires verifying the manifold pressure directly at the discharge port rather than guessing.

Root Cause #2: Thermal Overload Switch Fatigue

The thermal overload switch degrades over time dueto repeated heat cycling. Operating a blower in a 42°C (107°F) ambient environment beside a settling tank pushes the internal winding temperatures dangerously close to the Class F insulation limit of 155°C. When the bimetallic strip inside the thermal overload switch experiences hundreds of micro-trips over months of operation, its metallurgical yield strength permanently changes. A switch originally calibrated to trip at 24A might start tripping prematurely at 19A. This phantom tripping makes you suspect a catastrophic motor failure when the actual culprit is an inexpensive sensor. You can reference CAGI Compressed Air Data Sheets to verify the expected full-load amperage against your specific ambientconditions to confirm if the motor is genuinely pulling excess current or if the switch has degraded mechanically.

Root Cause #3: Voltage Unbalance in Oil Refinery Pond Aerator Pump Troubleshooting

Plant engineers often check line-to-line voltage with a basic multimeter but ignore phase unbalance entirely. This is the failure mode most technicians miss during routine inspections. A minor voltage unbalance on a three-phase 220V system creates negative sequence currents in the stator windings. Because negative sequence magnetic fields rotate in the opposite direction of the rotor, they induce massive rotor heating without tripping standard thermal overload relays immediately.

The localized temperature rise follows a specific mathematical relationship. The percentage increase in temperature rise is calculated as . If your facility has a 3.5% voltage unbalance due to single-phase loads unevenly distributed across the plant, you generate a increase in winding temperature. This excess heat bakes the epoxy insulation while the pump operates at an ostensibly safe 16A. NEMA MG 1-2016 requires motors to operate successfully with only up to 1% voltage unbalance before derating becomes mandatory.

Engineering Warning: Bypassing a nuisance-tripping thermal breaker without measuring phase-to-phase voltage unbalance risks a catastrophic stator burn-out. A rewound 5.5 kW motor will cost upwards of 6,200/year energy saving, 18-month payback.

Frequently Asked Questions

Q: How often should I acid-wash EPDM diffusers to prevent motor overload?
A: In heavy industrial wastewater applications, plan for chemical cleaning every 6 to 12 months. When dissolved oxygen mg/L drops or discharge pressure rises by 0.15 bar (2.1 psi) above the baseline, scaling has restricted the airflow. Injecting a heated 8% formic acid solution through the distribution manifold dissolves calcium carbonate and bacterial slime without requiring basin drainage, immediately dropping the 220V power draw back to nameplate specifications.

Q: Can air leaks cause the continuous duty cycle blower to overheat and trip the breaker?
A: Yes, indirectly. When plant operators notice a drop in aeration basin agitation, they often adjust the bypass valves or increase motor speed via a VFD to compensate for the lost volume. This pushes the equipment past its continuous duty cycle limits. You should implement a routine audit using the Compressed Air Best Practices — Leak Detection Guide to identify failing PVC joints or cracked hoses before making any mechanical adjustments to the blower itself.

Q: Why does my thermal overload switch trip when the ambient temperature drops at night?
A: Cold weather tripping usually points to high oil viscosity in the gearbox or bearing housings rather than electrical faults. Standard mineral oils thicken at lower temperatures, creating severe mechanical drag during cold starts. The motor pulls locked-rotor amperage for several seconds longer than the overload relay’s trip curve allows. Switching to an ISO VG 220 synthetic polyalphaolefin (PAO) gear oil maintains a stable viscosity index across extreme temperature swings, resolving the nuisance trips immediately.

Effective oil refinery pond aerator pump troubleshooting relies on measuring specific electrical and pneumatic parameters rather than guessing based on surface-level symptoms. If the motor casing exceeds 85°C (185°F) or you detect bearing vibration over 4.5 mm/s RMS, schedule a certified technician for a full rebuild. Otherwise, implement a strict 4,000-hour preventive maintenance interval for air filters and oil changes. And if your current equipment cannot handle the aggressive environmental conditions, view full technical specifications to evaluate a unit designed specifically for these harsh environments.
