Oil-Free Vacuum Pump for Analytical Equipment OEMs: Engineering Stable Vacuum
Reliability in analytical instrumentation is rarely about the primary sensor alone; it is dictated by the stability of the backing systems. For OEMs designing Mass Spectrometers (MS), Gas Chromatographs (GC), or electron microscopes, the vacuum source is often the single most critical failure point. A fluctuation in vacuum pressure of just a few mbar can alter ionization efficiency or disrupt carrier gas flow, rendering hours of data collection useless.
When sourcing an oil-free vacuum pump for analytical equipment, plant managers and procurement leads are moving away from traditional rotary vane technology. The risk of hydrocarbon backstreaming—coating sensitive optics or detectors with oil mist—is simply too high for modern detection limits. However, shifting to dry technology presents its own challenges regarding heat dissipation, vibration, and piston seal longevity.
The Engineering Challenge: Dry Vacuum Without the Noise
In the past, opting for oil-free meant accepting higher noise levels (dBA) and increased vibration. In a laboratory environment, a pump rattling at 75 dBA is unacceptable. It disrupts the work environment and, more critically, transmits micro-vibrations to the analytical equipment, potentially causing signal noise in sensitive measurements.

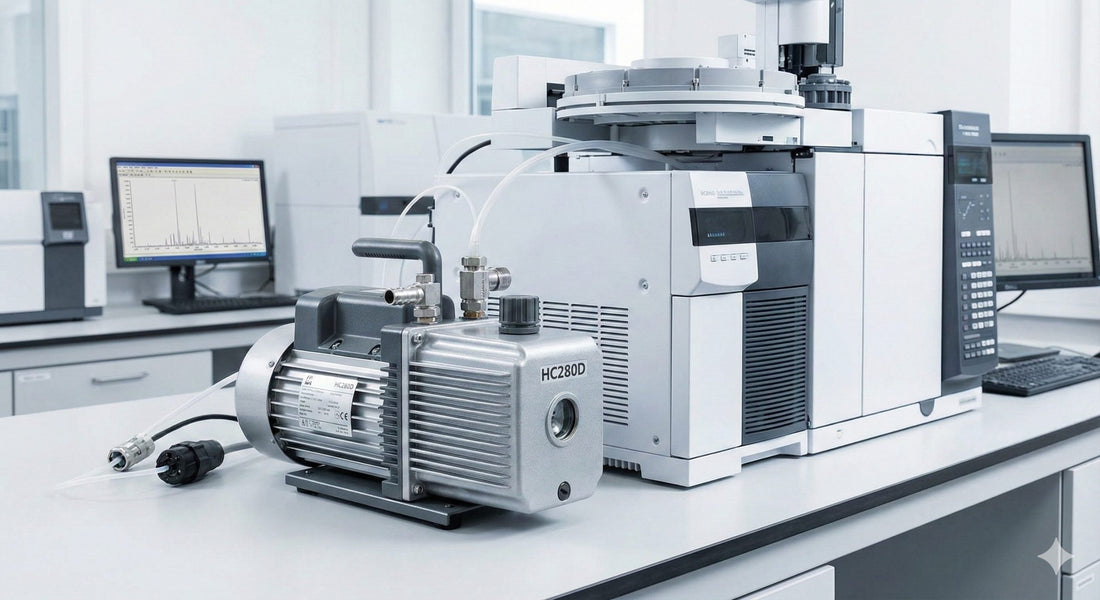

The HC280D vacuum pump addresses these specific OEM constraints. By utilizing a precision-machined rocking piston mechanism and high-grade bearing assemblies, the unit operates at approximately 58 dBA. This reduction allows for integration directly inside instrument chassis or on benchtop setups without requiring sound-dampening enclosures that restrict airflow and lead to overheating.
Technical Specifications and Duty Cycles
When specifying a pump, "ultimate vacuum" is often overemphasized compared to the flow curve at working pressure. Analytical instruments typically require a roughing pressure between 50 to 200 mbar absolute, rather than the deep vacuum of the pump's limit.
The HC280D is engineered for continuous duty (S1) at these intermediate pressures.
- Flow Rate: High CFM/LPM throughput ensures rapid pump-down times between sample batches.
- Thermal Management: The aluminum alloy casing acts as a heat sink. Unlike diaphragm pumps that can struggle with heat buildup in the heads, the piston design allows for efficient heat transfer, keeping operating temperatures well below the critical failure threshold of seal materials.
- Power Consumption: Optimized motor winding reduces amperage draw, lowering the total cost of ownership for the end-user.
Comparative Analysis: Pump Technologies
Choosing the right backing pump depends on the balance between maintenance intervals and vacuum depth.
| Feature | Oil-Free Piston (HC280D) | Diaphragm Pump | Rotary Vane (Oil-Sealed) |
| Contamination Risk | Zero (Class 0 equivalent) | Zero | High (Oil Mist) |
| Vibration | Low (Balanced) | Low | Low to Moderate |
| Maintenance | Cup replacement (Simple) | Diaphragm swap (Frequent) | Oil changes & Filter disposal |
| Moisture Tolerance | Moderate | High | Low (Emulsification risk) |
| Heat Dissipation | Excellent (Air cooled) | Poor (Head heat retention) | Good (Oil cooled) |
Field Note: Solving the "Drift" Issue
In a recent application review with a US-based manufacturer of portable gas analyzers, the engineering team faced persistent calibration drift. Their existing diaphragm pumps were suffering from micro-cracks in the elastomer after 2,000 hours of operation. While the pumps didn't fail catastrophically, the slight loss in ultimate vacuum shifted the instrument's baseline.
We transitioned their prototype to the HC280D. The rigid piston design eliminates the fatigue failure mode associated with stretching elastomers. The result was a stable vacuum curve that remained within 2% variance over 5,000+ hours of run time. This stability allowed the OEM to extend their recommended service interval, directly improving their competitive advantage.
Integration and Maintenance
For OEMs, the ease of integration is paramount. The HC280D utilizes standard port sizes and a compact footprint, but proper installation is vital for longevity.
- Vibration Isolation: While the pump is balanced, mounting on rubber grommets (shore hardness 40-60A) further decouples the pump from the instrument frame.
- Inlet Filtration: Always install a particulate filter (5 micron or finer) on the intake. Silica dust or column packing material entering the cylinder will accelerate cup wear.
- Exhaust Management: Ensure the exhaust is not restricted. Backpressure on the exhaust side increases motor load and heat.
Refer to general guidelines on vacuum systems from the Department of Energy (DOE) or standards from ISO.org regarding vacuum consistency testing to validate your system design.
Securing the Supply Chain
The transition to the HC280D vacuum pump provides analytical equipment manufacturers with a component that matches the precision of their sensors. By eliminating oil, you eliminate the primary source of background interference. By choosing a robust piston design, you mitigate the downtime associated with diaphragm fatigue.
For detailed CAD files, performance curves at specific voltages, or to discuss custom mounting configurations for your chassis, contact our engineering department.
4. Frequently Asked Questions
## Frequently Asked Questions
Q: What is the maintenance interval for the HC280D in a continuous duty application?
A: Under standard laboratory conditions (clean air, 20°C ambient), the piston cups and cylinder sleeves typically require inspection or replacement every 6,000 to 8,000 hours. This interval is significantly longer than many oil-sealed pumps which require frequent oil changes, or diaphragm pumps prone to fatigue. Dusty or humid environments may require more frequent checks of the intake filters.
Q: Can this pump handle moisture from liquid chromatography applications?
A: The HC280D is capable of handling typical humidity levels found in lab environments and minor vapor loads. However, it is not a liquid pump. If your application involves high volumes of solvent or water vapor (as seen in some LC-MS drying stages), we recommend installing an upstream liquid trap or condenser to prevent liquid from entering the compression chamber, which could cause hydraulic lock or corrosion.
Q: How does the noise level compare to a rotary vane pump?
A: The HC280D operates at approximately 58 dBA. While a healthy rotary vane pump can be slightly quieter (50-55 dBA), it requires a mist eliminator and constant oil maintenance to stay that way. As rotary vane pumps age, they often become louder. The HC280D maintains a consistent noise profile throughout its service life, making it suitable for benchtop analytical equipment.
Q: Is the HC280D compatible with variable speed drives (VFD)?
A: Yes, the motor can be controlled via VFD to adjust flow rates and vacuum levels dynamically, provided the frequency remains within the motor's cooling limits (typically not below 20Hz without auxiliary cooling). This is particularly useful for OEMs looking to implement "standby modes" in their instruments to conserve energy and extend component life.
