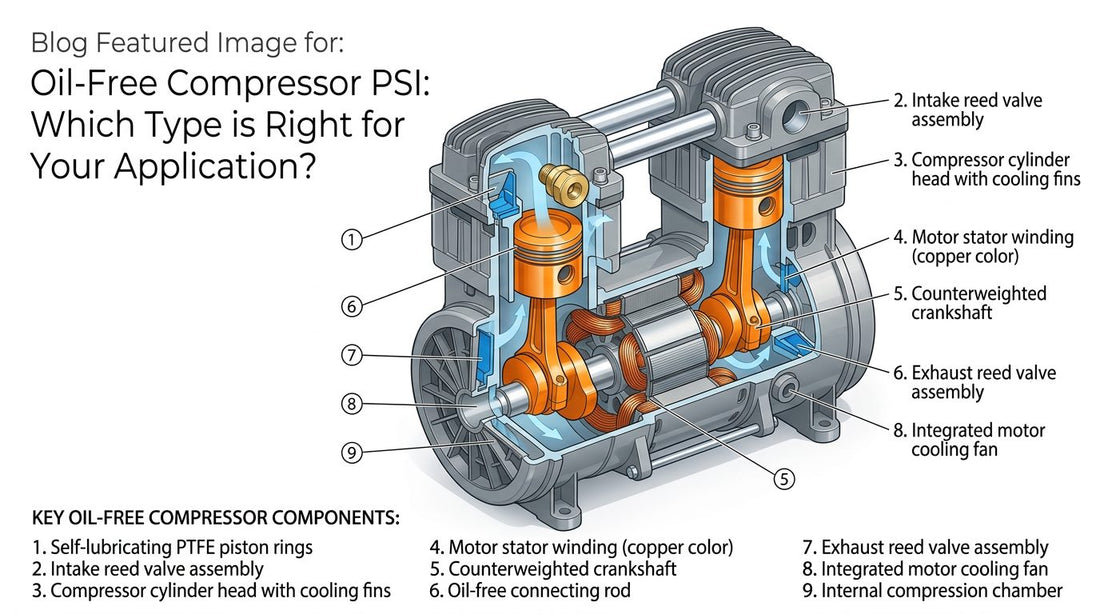

Oil-Free Compressor PSI: Which Type is Right for Your Application?

When specifying pneumatic equipment for sensitive environments like pharmaceutical processing or food and beverage manufacturing, engineers frequently struggle with artificial demand caused by compensating for pipeline pressure drops. Ramping up the centralized system pressure directly increases electrical energy expenditure and thermodynamic waste. Properly specifying your oil-free compressor PSI is critical to mitigating this waste while ensuring sufficient volumetric flow at the point of use. Choosing the correct discharge pressure prevents over-pressurization and reduces thermal losses throughout the piping header. For applications demanding absolute product safety, achieving ISO 8573-1 Class 0 air quality is a non-negotiable requirement. We have seen significant improvements in overall system efficiency when plant managers utilize dedicated equipment like the HC1500 Oilless Air Pump to handle specific process loads, rather than relying exclusively on an oversized, high-pressure central unit.

Matching Oil-Free Compressor PSI to Free Air Delivery

When sizing a pneumatic system, understanding the relationship between operating pressure (psi/bar) and Free Air Delivery (FAD) is foundational. A common engineering error is assuming that high pressure automatically equates to sufficient force and speed for downstream actuators. In reality, the target oil-free compressor PSI must be evaluated concurrently with the required CFM delivery at the point of use.

According to Boyle’s Law ($P_1V_1 = P_2V_2$), assuming constant temperature, compressing a gas decreases its volume proportionately. If an application requires 100 cfm at 90 psi, selecting a machine that provides 100 cfm at 145 psi forces the compressor element to work much harder than necessary. Every 2 psi increase in operating pressure results in approximately a 1% increase in power consumption. Therefore, right-sizing your oil-free compressor PSI is a primary defense against excessive operational costs.

NOTE: Always calculate the specific pressure drop across particulate filters, the inline air dryer, and piping friction before determining the final compressor discharge pressure. A 15 psi differential across an aging or undersized dryer will severely handicap your effective terminal pressure at the machine level.

Analyzing Power Demand: kW Power Consumption and VSD Efficiency

Energy efficiency metrics can be independently verified using engineering resources like the CAGI Compressed Air Data Sheets. These standardized sheets provide critical performance metrics, specifically kW/100 cfm at both full and partial loads. When assessing your required oil-free compressor PSI, one of the most effective mechanical methods to control kW power consumption is the integration of a Variable Speed Drive (VSD).

Unlike traditional fixed-speed units that operate on a highly inefficient load/unload cycle, a VSD alters the motor's rotational frequency to match the precise CFM delivery demanded by the facility in real-time. This eliminates large, wasteful pressure bands and tightly maintains the target oil-free compressor PSI within a fraction of a bar. Furthermore, engineers must understand that compensating for system leaks by artificially raising the oil-free compressor PSI is a catastrophic design flaw. A cumulative leak rate equivalent to a 1/4-inch orifice across a facility can vent tens of thousands of dollars in electrical energy annually. Identifying and repairing pipeline leaks must precede any new equipment sizing.

Optimizing Oil-Free Compressor PSI for Portable Operations

Not all pneumatic applications are permanently confined to a static factory floor. The deployment of portable pneumatics heavily influences compressor selection and sizing constraints. When operating sensitive tools on a mobile jobsite, fluctuations in ambient conditions—such as extreme temperature gradients and high relative humidity—can drastically alter the density of the intake air, thereby impacting the unit's volumetric efficiency.

Delivering a consistent oil-free compressor PSI on a mobile jobsite requires robust mechanical tolerances. Portable units must endure constant vibrations and highly varying duty cycles while still driving portable pneumatics effectively. The complete absence of lubricating oil in the compression chamber eliminates the risk of oil aerosol carryover into sensitive environments. This characteristic is highly advantageous for specialized applications like mobile painting, mobile medical equipment servicing, or field instrumentation calibration.

Air Purity and the Inline Air Dryer

Regardless of whether the pneumatic system is stationary or mobile, atmospheric intake air contains water vapor. The physical act of compressing this air concentrates the moisture content. Achieving stringent ISO 8573-1 Compressed Air Purity Classes requires more than just an oil-free mechanical compression element; it mandates highly effective moisture and particulate removal.

Integrating an inline air dryer—whether utilizing desiccant beds or refrigerated heat exchangers—ensures that the pressure dew point remains well below the critical threshold for the manufacturing process. While every inline air dryer introduces a measurable flow resistance, accurately factoring this restriction into your initial oil-free compressor PSI calculation prevents downstream starvation and mechanical faults.

Technology Comparison: Oil-Free vs. Oil-Injected

To clarify the operational and financial differences between technologies, facility engineers must look beyond just the upfront capital expenditure and evaluate the total lifecycle characteristics.

Parameter	Oil-Free Compressor	Oil-Injected Compressor
Air Purity Standard	ISO 8573-1 Class 0 (Zero added oil)	Class 1 or worse (Requires heavy inline filtration)
Maintenance Profile	Lower frequency, specialized airend rebuilds	Frequent oil sampling, fluid changes, separator replacements
Operating Pressure	Strictly defined oil-free compressor PSI limits	Generally higher maximum discharge pressure per stage
Thermal Management	Air/Water cooling, complex internal jacketing	Fluid serves as a primary thermal sink for the rotors
Filtration Loss	Minimal pressure drop across standard particulate filters	High cumulative pressure drop across coalescing separators

Engineering Case Study: Stabilizing System Pressure in Packaging

The Problem: A mid-sized pharmaceutical packaging facility was experiencing frequent automated pneumatic valve faults on their primary production line. The centralized utility system was aggressively set to 125 psi to compensate for significant pipeline pressure drops and an aging, undersized desiccant inline air dryer. Despite the high header pressure in the compressor room, the terminal oil-free compressor PSI at the packaging machines fluctuated wildly, routinely dropping to 75 psi during peak demand shifts. This artificial demand was driving up kW power consumption exponentially and causing unacceptable product reject rates.

Technical Solution: Our engineering team conducted a comprehensive system audit utilizing the technical guidelines provided by the U.S. DOE Compressed Air Challenge. The audit verified that pushing the central utility unit to 125 psi was thermodynamically inefficient and mechanically damaging. Instead of replacing the massive central unit with a larger equivalent, we decentralized the pneumatic network. We installed dedicated, point-of-use scroll units specifically sized for the packaging line's exact CFM delivery requirements, directly bypassing the bottlenecked central desiccant dryer.

The Outcome: By delivering a targeted, stable oil-free compressor PSI of 90 psi exactly where it was needed, the facility eliminated 35 psi of wasteful artificial demand. The dedicated point-of-use units provided highly reliable CFM delivery, the automated valve faults ceased entirely, and the plant realized a verified 22% reduction in overall kW power consumption.

NOTE: Decentralizing a pneumatic network often yields a significantly better return on investment than fighting header friction. Moving the compression source directly adjacent to the demand reduces the volume of air lost to leaks, minimizes pipe friction, and allows for lower operating pressures.

FAQ: Specifications and Oil-Free Compressor PSI

What factors most significantly impact my required oil-free compressor PSI? The primary factors include the minimum operating pressure of your most demanding downstream pneumatic cylinder or tool, the cumulative pressure drop across all inline filtration and the inline air dryer, and the frictional losses generated through the piping distribution network. Always apply the $P_1V_1 = P_2V_2$ principle to understand how pressure changes affect actual volume. Specifying a discharge pressure exactly 15 to 20 psi higher than the highest terminal requirement is standard engineering practice to account for these inherent system losses without wasting energy.

How does CFM delivery differ from piston displacement? Piston displacement is simply the theoretical internal volume swept by the compression mechanism during its stroke. Free Air Delivery (CFM delivery) is the actual volume of usable air expelled from the machine at the stated discharge pressure, normalized back to ambient intake conditions. Volumetric efficiency accounts for the mathematical difference between these two figures. Always size your equipment based strictly on CFM delivery at your target operating pressure. Evaluating a machine based solely on theoretical displacement will inevitably result in a severely undersized system that cannot meet your continuous process demands.

Why is the dB(A) noise rating critical for point-of-use applications? When installing mechanical equipment directly on the factory floor or near active workstations, the dB(A) noise rating becomes a strict regulatory and ergonomic constraint. High ambient noise levels cause operator fatigue and routinely violate occupational safety exposure limits. Oil-free technologies like scroll or diaphragm compressors inherently produce less vibration and acoustic resonance compared to traditional reciprocating models. Utilizing machines with integrated acoustic sound enclosures ensures the dB(A) noise rating remains manageable, facilitating immediate proximity to the application without demanding expensive, sound-proofed utility rooms.

Can I achieve ISO 8573-1 Class 0 without an inline air dryer? No, you cannot. ISO 8573-1 Class 0 refers strictly to the concentration of total oil (including liquid, aerosol, and vapor states). However, untreated atmospheric air is fully saturated with water vapor. To prevent internal pipeline corrosion, microbial growth, and product contamination, you must actively manage this moisture. While the oil-free compressor PSI dictates the mechanical force available, an inline air dryer is absolutely mandatory to depress the dew point and achieve comprehensive air purity suitable for critical pharmaceutical, food and beverage, or advanced electronics manufacturing processes.

Determining the optimal pneumatic system parameters requires a rigorous evaluation of applied thermodynamics, specific application demand, and facility environmental constraints. Selecting the correct oil-free compressor PSI is not an isolated mechanical decision; it interacts directly with your required CFM delivery, total kW power consumption, and your ability to maintain strict ISO 8573-1 Class 0 compliance. Whether you are engineering a high-capacity stationary factory network or specifying rugged equipment for portable pneumatics on a mobile jobsite, absolute precision in your pressure specifications prevents long-term energy waste and premature mechanical failure. We strongly recommend calculating your true terminal pressure requirements mathematically and factoring in the restriction of all downstream treatment components. To review specialized performance curves and explore technical specifications for your next facility upgrade, consult detailed engineering data to ensure your pneumatic system operates at peak thermodynamic efficiency.
