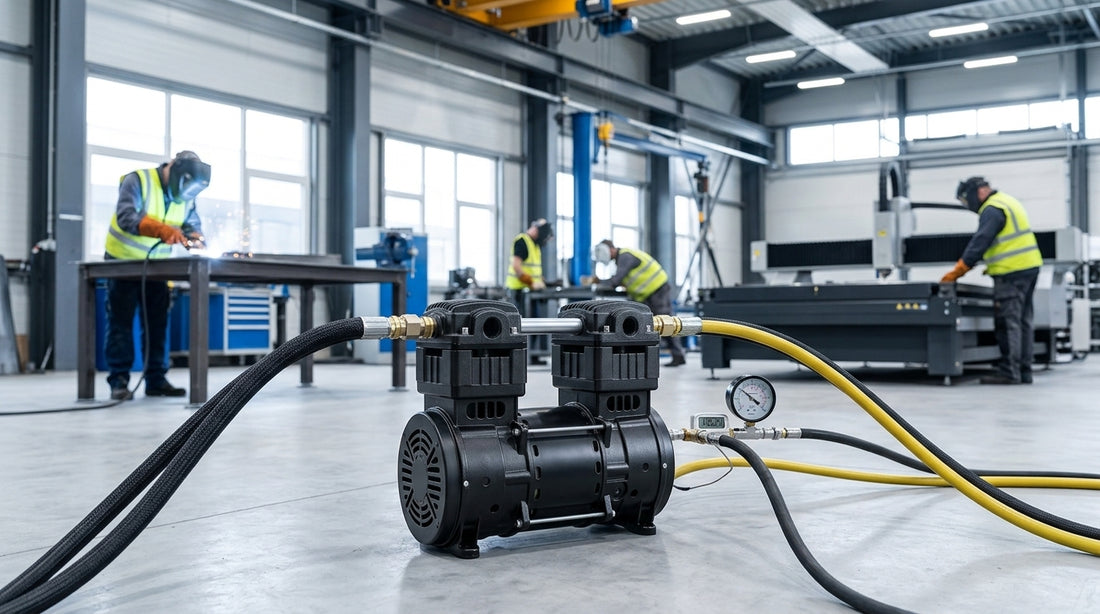

Why Does My Metal Fab Vacuum Pump Lose Pressure at 40°C?

Last Tuesday afternoon, I was standing in a metal stamping facility just outside Dayton, Ohio. The shop floor felt like a sauna. It was pushing 40°C near the presses, and the ambient noise was deafening. Over the usual clanking of the stamping dies, I heard the distinct, heavy thud of a steel plate hitting the concrete.

The operator killed the line immediately. He pointed up at the gantry crane. The sheet metal suction cup had dropped a 200-pound blank right in the middle of a transfer. We walked over to the dropped plate, and the smell of hot, burnt lubricating oil was heavy in the air.

The maintenance supervisor came running over. He sworeup and down that they had just rebuilt the rotary vanes last month. He was convinced the sheet metal suction cup had a torn lip. But I had my thermal gun out before he even finished his sentence. The pump casing was baking at 95°C.

That right there is the classic metal fabrication vacuum pressure drop scenario. We see it every summer when the midwestern shop floors heat up. The ambient temperature hits 40°C, and suddenly your handling equipment starts dropping parts.

People always blame the cups or the line filters. They rarely look at what the heat is actually doing to the gas dynamics inside the housing.

If you ever flip through the AVS Introduction to Vacuum Technology, you'll notice how heavily temperature impacts volumetric efficiency. It is dry reading, but the physics dictate everything we do on the floor. When the air entering the intake is already hot, it expands. The pump has to work twice as hard to move the same mass of air.

In a lubricated pump, high heat also thins out the oil. That oil is supposed to seal the microscopic gap between the rotor and the stator. When it gets too hot, the viscosity breaks down completely. You get blow-by. The air just slips right past the vanes instead of being pushed out the exhaust. You lose your deep vacuum, and your holding force vanishes.

I hooked up my gauge directly to their manifold. They were supposed to be pulling 24 inHg. They were barely scraping by at 14 inHg.

A 200-pound steel blank needs a solid, reliable vacuum at the sheet metal suction cup to fight gravity and acceleration forces during a swift crane movement. 14 inHg just won't cut it.

So I asked the supervisor what pump they were running. It was a competitor's unit, sized exactly for the theoretical load with zero safety margin. The motor was constantly riding the edge of a thermal overload condition.

I told him he needed something with better thermal dissipation. Usually, I'd suggestlooking at our HC1500A Vacuum Pump for this kind of heavy, continuous lifting. But space on their overhead gantry was incredibly tight. They just couldn't fit a larger block up there without re-engineering the entire carriage assembly.

So we looked at swapping in the HC580A small vacuum pump instead. It pushes about 20 CFM, which is plenty of flow for a four-cup array if your pneumatic lines are tight. The real difference is in the cooling fins and the oil reservoir capacity. It sheds heat much faster than the standard block units you usually see bolted onto these older stamping presses.

We also had to look closely at the noise on the floor. The old pump was screaming at 82 dB(A) because the bearings were literally cooking in the heat. OSHA regulations start getting really strict around that 85 dB(A) limit for an eight-hour shift. The operators were already wearing heavy ear pro, but you could still feel the mechanical vibration right in your teeth.

When I talk to plant managers about these heat issues, they often get tripped up by the engineering terminology. If you ever have a slow afternoon, pull up the CAGI Glossary of Compressed Air Terms. It clarifies the exact difference between absolute pressure and gauge pressure. Most guys just look at the analog dial and assume 24 inHg is a static, unchanging number.

But vacuum is highly dynamic. Back in Dayton, we let that old pump cool down for an hour and drained the oil into a bucket. It looked and smelled exactly like burnt black coffee. The thermal breakdown was obvious.

We temporarily bypassed their overhead unit entirely. I ran a high-temp flex hose down to a floor-mounted test pump we brought in the truck. We fired it up and watched the gauges. The ambient air near the floor was a bit cooler, maybe hovering around 32°C.

The holding force immediately snapped back to normal. The crane picked up the next 200-pound blank without a single shudder.

You really have to read the performance curves at actual operating temperatures. Manufacturers test these things in climate-controlled labs at 20°C (which is a luxury we don't have on the floor). If you pull up the CAGI Compressed Air Data Sheets for most industrial rotary equipment, you'll see those standard conditions listed in the fine print.

Nobody stamps sheet metal in a laboratory. You have to derate the pump for your actual factory floor conditions.

I spent the next hour walking the maintenance guy through the new setup. We talked about running a dedicated 120V cooling fanstraight across the cooling fins if they decided to stick with a compact overhead mount. It is a cheap fix, but it only does so much when the ambient air itself is scorching.

Heat doesn't just sit still in a stamping plant. It radiates up from the presses and gets trapped right under the roof trusses. You can easily see a 15°C temperature differential between the concrete slab and the gantry crane track.

That means your pump oil is fighting a losing battle from the second you hit the power switch. I told the supervisor to throw out his standard maintenance schedule during the summer months. You have to swap the synthetic oil every 500 hours instead of 1000 when the building gets this hot.

It costs maybe $120 a year in extra lubricants. That is practically nothing. Dropping a raw steel plate on a $50,000 stamping die because your vacuum pressure dropped? That will ruin your entire quarter.

They eventually realized they couldn't cheat the thermodynamics. They approved the carriage modification a week later so we could safely mount a heavier block. If you want to see the thermal ratings and operating curves for the exact unit we ended up bolting up there, you can view full technical specifications on our site.

We got the new setup wired in and ran the pneumatic lines. The rig pulled a steady 26 inHg all afternoon. The casing temperature never broke 65°C, even with the afternoon sun beating down on the corrugated tin roof.

I packed up my gauges and headed out to the parking lot. My truck cab felt like a furnace, but at least the factory line was running smooth again. You can't ignore the laws of physics, especially when the shop floor heats up.
