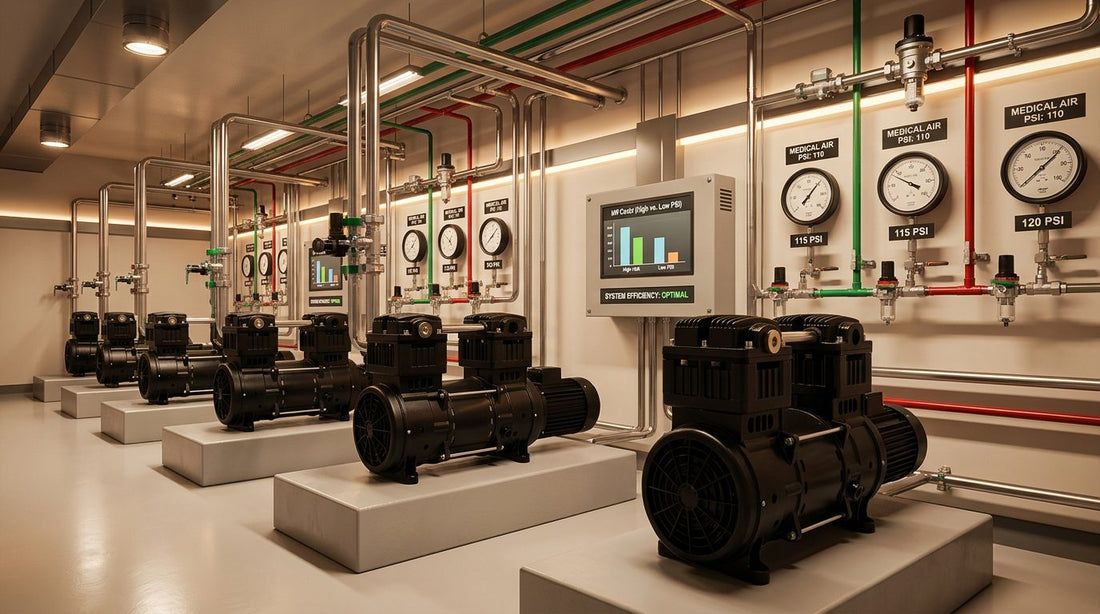

Medical Air Compressor PSI: Stop Overheating & Cut kW Costs

Facilities managers in acute care hospitals routinely face a common operational trap: compensating for distal pressure drops by artificially increasing the setpoint at the central plant. When piped respiratory gas systems show low pressure at the terminal units, the standard knee-jerk reaction is to immediately crank up the Medical air compressor PSI.

This band-aid fix masks the root cause of pressure degradation—whether it is undersized distribution piping, clogged desiccant filters, or basic friction losses—and introduces severe mechanical penalties. Running a system at an excessive discharge pressure drives up the kW/100 cfm energy consumption and subjects the bare block to dangerous thermal loads. For modern pneumatic systems, such as the HC1500 Oilless Air Pump, maintaining the precise design pressure is critical for longevity. As an applications engineer with two decades in the field, I consistently see facilities battling equipment failure simply because they misunderstand the fundamental relationship between pressure, flow volume, and heat rejection.

The Thermodynamics of Medical Air Compressor PSI

Let us examine the physics of pneumatic energy. The baseline rule of thumb in compressed air generation dictates that every 2 psi (0.14 bar) increase in discharge pressure requires a 1% increase in electrical energy consumption. If your facility inflates the Medical air compressor PSI from 100 psi to 120 psi just to overcome secondary line losses, you are adding roughly 10% to the total kW power draw without gaining a single cubic foot of usable capacity. You can verify this baseline efficiency loss by reviewing standard CAGI Compressed Air Data Sheets for your specific machinery.

Furthermore, compression is an inherently exothermic process. We can map the theoretical discharge temperature using the standard isentropic compression formula:

$T_2 = T_1 \left( \frac{P_2}{P_1} \right)^{\frac{k-1}{k}}$

Where $T_2$ is the absolute discharge temperature, $P_2/P_1$ is the pressure ratio, and $k$ is the specific heat ratio (approximately 1.4 for ambient air). As the Medical air compressor PSI ratio increases, the discharge temperature $T_2$ scales exponentially. This excess heat degrades internal seals, warps valves, and overworks the cooling fans. Consequently, the fans running at maximum RPM drive up the dB(A) acoustic rating of the plant room to unacceptable levels, violating occupational noise guidelines.

Optimizing Sizing: CFM Flow Rate vs. Medical Air Compressor PSI

Mechanical engineers must strictly uncouple pressure from volume when designing or auditing a medical gas manifold. The CFM flow rate (specifically Free Air Delivery, or FAD) dictates exactly how many ventilators, blenders, or surgical tools the system can support simultaneously. Conversely, the pressure merely dictates the motive force behind that volume.

According to guidance from the U.S. DOE Compressed Air Challenge, creating "artificial demand" by over-pressurizing the distribution network actually forces unregulated terminal equipment to consume more air than necessary. Using Boyle's Law, $P_1V_1 = P_2V_2$, we see that supplying air at a higher pressure to a fixed-orifice device inherently increases the volume of free air consumed. If a facility runs an abnormally high Medical air compressor PSI, they are actively causing their own volumetric shortages by forcing the terminal ends to waste air.

NOTE: Before adjusting the primary machine regulators, log the pressure differential ($\Delta P$) across your intake filters, dryer beds, and primary headers. A $\Delta P$ exceeding 5 to 7 psi indicates a mechanical restriction that requires immediate maintenance, not a demand for a higher central compressor setpoint.

Mitigating Thermal Shutdown in Oil-Free Architectures

In critical medical applications, the risk of hydrocarbon contamination means we rely heavily on the oil-free piston compressor or scroll technologies. Because these specialized machines lack the cooling benefits of injected fluid to absorb the latent heat of compression, they are highly sensitive to over-pressurization.

When operators push the Medical air compressor PSI beyond the OEM performance curve, the localized heat in the bare block rapidly exceeds the metallurgical limits of the PTFE piston rings or scroll tips. The resulting friction trips the internal thermistors, triggering an immediate thermal shutdown. This is a catastrophic failure mode for life-support pneumatic grids. By strictly regulating the Medical air compressor PSI to the minimum viable threshold for the facility, engineers preserve the longevity of non-lubricated wear parts and prevent sudden offline events.

Purity and Performance: The ISO 8573-1 Standard

Patient safety dictates that medical air must be absolutely free of liquid water, oil aerosols, and particulates. To meet these stringent requirements, systems must be validated against the ISO 8573-1 Compressed Air Purity Classes. Specifically, medical breathing air must consistently achieve ISO 8573-1 Class 0 for total oil carryover.

System Feature	Oil-Free Piston Compressor	Oil-Injected Rotary Screw (with filtration)
Contamination Risk	Zero (Class 0 by design)	High (Relies heavily on cascading filter elements)
Heat Dissipation	Relies on ambient air/fins; highly sensitive to high PSI	Oil absorbs heat; more tolerant to over-pressurization
kW Power Draw	Highly efficient in intermittent duty cycles	High idle energy consumption (unload kW)
Maintenance Cost	Lower (no fluid changes or separator elements)	Higher (routine fluid, filter, and separator changes)
Acoustic Profile	Variable; often requires acoustic enclosures	Generally lower native dB(A) acoustic rating

Mini Case Study: Eliminating Artificial Demand and Restoring Oxygenation Pump Efficiency

The Problem: A Level 1 trauma center was experiencing sporadic low-pressure alarms in their secondary surgical suites. The maintenance team responded by increasing the central plant's Medical air compressor PSI from 105 to 125. Within a week, the primary machines began experiencing mid-afternoon thermal shutdown events, and the overall plant room energy consumption spiked by 12%. Furthermore, the hospital's hyperbaric and ECMO support units showed decreased oxygenation pump efficiency due to erratic inlet pressures and excess moisture bypass.

The Technical Solution: We conducted a full pneumatic audit and discovered that the pressure drop was caused by saturated desiccant towers and improperly sized secondary regulators on the second floor. We replaced the fouled desiccant media, resized the local regulators to handle the peak CFM flow rate, and dropped the main plant setpoint back down to 102 psi.

The Outcome: The system stabilized immediately. The kW power draw dropped by 14%, saving the facility approximately $8,500 annually in pure electricity costs. The lower operating temperatures completely eliminated the thermal tripping, and the oxygenation pump efficiency returned to nominal OEM baselines. This proved that localized mechanical fixes are always superior to brute-force pressure increases.

Strategies for Maintaining Optimal Medical Air Compressor PSI

To stop overheating and cut operational expenses, facilities engineers should immediately implement the following best practices:

1. Implement Variable Speed Drives (VSD): Standard fixed-speed compressors operate on a load/unload cycle, meaning they run at full capacity or not at all. A VSD matches the motor speed to the real-time CFM flow rate demand. This precise control eliminates pressure bands, keeping the Medical air compressor PSI strictly at the target setpoint without overshooting.
2. Zone Regulation: Instead of running the entire hospital network at 110 psi to satisfy a single sterile processing tool that requires high pressure, isolate that specific tool. Provide it with a dedicated booster or localized oil-free piston compressor, allowing the main hospital grid to run at a highly efficient 50-55 psi (depending on NFPA 99 piping requirements).
3. Acoustic Management: As system pressure drops and workloads normalize, the cooling fans run at lower RPMs. This directly improves the dB(A) acoustic rating of the mechanical room, ensuring compliance with strict workplace noise exposure limits and reducing operator fatigue.

Summary

Managing a hospital’s pneumatic infrastructure requires technical discipline and constant monitoring. Using elevated pressure as a crutch for underlying mechanical bottlenecks is a guaranteed path to excessive kW power draw, premature component wear, and catastrophic thermal shutdown. By understanding the thermodynamics of compression, calculating exact FAD volumetric requirements, and respecting the design limits of your machinery, you can maintain ISO 8573-1 Class 0 purity without ever sacrificing reliability.

If you are evaluating your central plant equipment or looking to reduce your energy baseline, auditing your Medical air compressor PSI is the most effective first step. For engineers looking to upgrade to robust, thermally stable pneumatic technology, explore technical specifications of the HC1500 system to see how modern engineering mitigates these exact facility challenges.

Frequently Asked Questions

What is the ideal Medical air compressor PSI for a hospital? The optimal Medical air compressor PSI depends on your local regulatory code (such as NFPA 99 in the United States) and the specific requirements of your terminal equipment. Typically, the pipeline distribution pressure is maintained around 50 to 55 psi (3.4 to 3.8 bar) at the wall outlets. The central plant compressor setpoint is usually higher—around 100 psi—to account for the natural pressure drop across the desiccant dryers, carbon filters, and main distribution headers before being regulated down.

How does CFM flow rate affect my compressor's temperature? The CFM flow rate represents the sheer volume of air the compressor is processing. If a compressor is undersized for the facility's peak demand, it will run continuously at a 100% duty cycle to try and maintain the system pressure. In an oil-free piston compressor, this lack of "rest" prevents the internal bare block components from shedding heat, leading to severe overheating and eventual thermal shutdown. Proper sizing ensures the unit has adequate dwell time to cool between cycles.

Why is my system drawing too much kW power? Excessive kW power draw is almost always tied to artificial demand, system leaks, or fouled filtration. Every time you increase the Medical air compressor PSI by 2 psi, you add roughly 1% to your electrical energy costs. Furthermore, if you are pushing air through saturated filters, the compressor motor must work exponentially harder to overcome the restriction, consuming significantly more electrical current and generating excess heat in the process.How does a high dB(A) acoustic rating indicate a problem with my system? A sudden increase in the dB(A) acoustic rating of your plant room is a primary diagnostic indicator of mechanical distress. When operators artificially raise the Medical air compressor PSI, the machine works against higher head pressures, causing cooling fans to ramp up to maximum RPM and increasing vibrational harmonics across the chassis. In an oil-free piston compressor, excessive noise often precedes a catastrophic thermal shutdown. Monitoring acoustic baselines allows facilities engineers to detect these friction-induced anomalies early, preventing costly downtime and ensuring the plant room remains within safe occupational noise exposure thresholds.

What maintenance is required to maintain ISO 8573-1 Class 0 certification? Achieving and maintaining ISO 8573-1 Class 0 requires strict adherence to scheduled preventative maintenance, particularly for the intake and distribution filtration stages. Even in a completely oil-free architecture, ambient hydrocarbons and particulate matter can enter the intake valves. Facilities must regularly replace pre-filters, service the desiccant dryer beds, and calibrate the dew point monitors. Furthermore, ensuring that your Medical air compressor PSI remains properly regulated prevents excessive air velocity through the filtration media. High-velocity air can cause desiccant dusting and filter bypass, which immediately voids the Class 0 purity standard and puts critical patient care equipment at risk.
