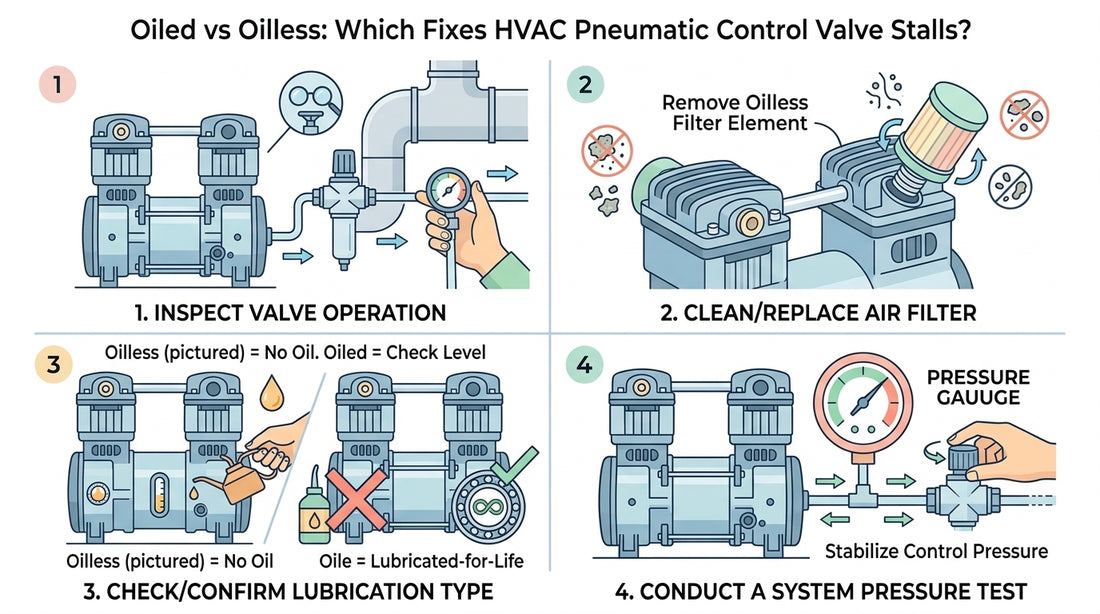

Oiled vs Oilless: Which Fixes HVAC Pneumatic Control Valve Stalls?

If you have spent any significant time in plant engineering or facility maintenance, you know the frustration of a stalled HVAC pneumatic control valve. Over my 20-plus years as an Applications Engineer, I have walked through hundreds of mechanical rooms, responding to complaints about drifting zone temperatures, stuck dampers, and unresponsive cooling coils.

In almost every instance, the first instinct of the maintenance team is to replace the actuator or attempt to recalibrate the local pneumatic thermostat. However, as any seasoned engineer will tell you, treating the symptom rarely cures the disease. When control valves stall repeatedly across a facility, the root cause is rarely the terminal equipment itself. Instead, the culprit is usually sitting in the basement or mechanical penthouse: your compressed air supply.

Effective hvac pneumatic control compressor troubleshooting requires looking upstream. The debate between utilizing traditional oiled compressors versus modern oilless technology is central to solving persistent pneumatic failures. In this comprehensive guide, we will explore the mechanical realities of both systems, dissect why pneumatic components fail, and explain how upgrading your air source can permanently resolve valve stalling.

The Silent Killer of Pneumatic Systems: Oil Carryover

To understand why pneumatic valves stall, we first have to understand the composition of the air driving them. Legacy HVAC control systems rely on clean, dry, and strictly oil-free compressed air to operate microscopic orifices and sensitive diaphragms.

When a facility utilizes a standard lubricated air compressor, they introduce the risk of oil carryover. Oil carryover occurs when the lubricating oil used in the compressor's crankcase makes it past the internal separator filter and discharges directly into the compressed air piping network.

According to industry data and field experience, oil carryover is not an anomaly; it is a highly common failure mode. It is usually triggered by several interconnected factors: * Component Failure: A ruptured or saturated air/oil separator filter will immediately allow oil vapor into the discharge line. * Temperature Instability: Compressors running too hot will vaporize the lubricating oil, allowing it to bypass standard coalescing filters that are only designed to catch liquid aerosols. * Incorrect Oil Levels: An overfilled compressor crankcase will cause excessive splashing and foaming, overwhelming the separation mechanisms. * Short-Cycling: Extended operation outside the compressor’s optimal load range prevents the system from reaching the thermal equilibrium required for optimal oil separation.

Once this oil enters the airstream, it travels throughout the entire building. For a deeper understanding of these technical definitions and how they impact system design, I highly recommend reviewing the CAGI Glossary of Compressed Air Terms.

How Oil Destroys Pneumatic Components

When oil carryover breaches your pneumatic control lines, it initiates a cascading failure across your HVAC infrastructure. The damage primarily manifests in two critical areas:

1. The Pneumatic Thermostat

A standard pneumatic thermostat operates using a highly calibrated restrictor and a flapper-nozzle mechanism. The orifices in these devices are incredibly small—often measuring just a few thousandths of an inch in diameter. When oil aerosol travels down the air lines, it inevitably cools and condenses inside these restrictions.

The oil acts as a magnet for any microscopic dust or desiccant dust in the system, creating a sticky sludge. This sludge clogs the thermostat restrictor, causing the branch line pressure to drop or lock up completely. The result? The thermostat stops responding to temperature changes, leaving the associated control valve fully open or fully closed.

2. Actuator Seal Degradation

The most expensive consequence of oil carryover is actuator seal degradation. The flexible rolling diaphragms inside pneumatic valve and damper actuators are typically manufactured from EPDM or Neoprene rubber. These materials are highly resilient to flexing and air pressure, but they are chemically incompatible with petroleum-based or synthetic compressor oils.

When compressor oil pools inside an actuator housing, it begins to chemically break down the rubber. The diaphragm will swell, soften, and eventually tear. Once the diaphragm tears, the actuator can no longer hold air pressure, resulting in a completely stalled control valve. At this point, the entire actuator must be replaced.

The Futility of Line Blowdown

When faced with oil-contaminated lines, many maintenance teams rely on line blowdown as a primary troubleshooting step. This involves disconnecting the air lines at the terminal ends and blowing compressed air through the tubing to force out accumulated oil and water.

While line blowdown can provide temporary relief, it is strictly a band-aid solution. The capillary action of oil inside small-diameter copper or polyethylene tubing makes it nearly impossible to remove completely. Even after a thorough blowdown, residual oil film remains on the inner walls of the tubing. As air continues to flow, this film slowly creeps forward, eventually re-contaminating the newly replaced thermostats and actuators. If your maintenance team is performing line blowdowns more than once a year, your compressor system is fundamentally failing you.

Oiled Compressors: The Traditional but Risky Choice

Historically, lubricated reciprocating or rotary screw compressors were the standard for industrial and large commercial applications. They are robust, capable of continuous duty, and relatively inexpensive to purchase upfront.

However, when applied to delicate HVAC pneumatic controls, oiled compressors present a massive liability. To make the air from a lubricated compressor safe for pneumatic controls, you must rely on a heavy, complex filtration train. This typically includes a water separator, a refrigerated air dryer, a bulk liquid filter, a fine coalescing filter, and an activated carbon filter to remove oil vapors.

The problem for plant engineers is that this filtration train requires flawless maintenance. If a single coalescing filter is left in place past its service life, or if the auto-drain on a filter bowl clogs, the entire downstream system is instantly compromised. Procurement managers must also factor in the ongoing consumable costs of replacing these expensive filter elements multiple times a year. When evaluating the energy and operational footprint of these traditional setups, consulting CAGI Compressed Air Data Sheets can provide a sobering look at the true life-cycle costs.

Oilless Compressors: The Permanent Solution

If you want to definitively eliminate oil carryover and halt actuator seal degradation, the engineering solution is simple: remove the oil from the equation entirely.

Oilless (or oil-free) compressors operate without any lubricating oil in the compression chamber. Instead, they utilize self-lubricating materials—such as PTFE (Teflon) coated pistons and cylinders, or precision-machined scroll elements—to generate compressed air.

Because there is physically no oil in the compression process, there is zero risk of oil carryover. This fundamental shift in technology completely changes the paradigm of hvac pneumatic control compressor troubleshooting. You transition from constantly battling contamination to merely maintaining air pressure and moisture control.

Meeting Strict Air Quality Standards

For HVAC pneumatic controls, the gold standard for air quality is achieving ISO 8573-1 Class 1 for oil content. Under this strict international standard, the total concentration of oil (including liquid, aerosol, and vapor) must be less than 0.01 mg/m³.

While heavily filtered lubricated compressors can theoretically achieve this class when perfectly maintained, oilless compressors achieve ISO Class 0 or Class 1 inherently, by design. You can explore the exact testing methodologies and limits by reviewing the ISO 8573-1 Compressed Air Purity Classes guidelines. By upgrading to an inherently oil-free system, facility managers completely bypass the complex, failure-prone filtration networks required by older technologies.

Sizing Your Oilless System: Pressure and Flow

When specifying an oilless compressor for a facility upgrade, plant engineers must correctly match the pressure and volumetric flow requirements of their specific building. Most legacy pneumatic control networks require the compressor to maintain a receiver tank pressure of at least 80 PSI. This higher storage pressure allows the system to effectively step down, via a pressure reducing valve (PRV), to the standard 15 to 25 PSI main line pressure required by the thermostats and controllers. This differential ensures a stable, fluctuation-free air supply even during peak actuation periods.

Volumetric flow capacity is equally critical to prevent system starvation. A standard commercial building with a moderate number of pneumatic zones typically requires a system capable of delivering roughly 10 CFM (Cubic Feet per Minute). Sizing an oilless unit to confidently meet this demand ensures the compressor operates within its optimal duty cycle. Proper sizing prevents the unit from running continuously, thereby extending the life of the internal self-lubricating seals and preventing thermal overload.

Integrating the Right Equipment

For facilities looking to make the permanent transition away from problematic lubricated systems, choosing industrial-grade oilless equipment is paramount. You need a system built for the rigorous, continuous-duty demands of a commercial mechanical room.

Our engineered solution for this exact application is the HC1500 Oilless Air Pump. Designed specifically for high-reliability environments, it provides the perfectly clean, uncontaminated air that sensitive pneumatic actuators and thermostats demand. Because there is no crankcase oil to check, change, or aggressively filter out of the airstream, routine maintenance is drastically reduced. Procurement managers will appreciate the immediate reduction in consumable filter costs, while maintenance teams save hundreds of labor hours previously spent rebuilding contaminated valves.

If you are evaluating replacements for your aging mechanical room equipment and need to verify performance parameters against your building's current footprint, you can view full technical specifications to see how seamlessly this technology integrates into existing pneumatic networks.

Conclusion: Stop Treating the Symptoms

Procurement managers and plant engineers are constantly forced to balance upfront capital expenditures against long-term operational costs. While a heavy-duty oilless air compressor represents a dedicated facility investment, the return on investment is realized almost immediately in maintenance savings.

By eliminating the root cause of the contamination—the oil itself—you instantly stop the cycle of actuator seal degradation, clogged thermostat restrictors, and endless, frustrating line blowdowns. When your pneumatic control valves stop stalling, your chilled water and steam loops operate as originally designed, overall building energy efficiency improves, and hot/cold calls from building occupants drop significantly.

When it comes to troubleshooting failing HVAC pneumatic controls, the verdict is clear: stop treating the symptoms at the valve, and cure the disease at the compressor. Upgrading to oilless technology is the only definitive fix.
