How to Fix a 10 PSI Pressure Drop: A Deep explore Plasma Cutter Air Compressor Requirements

You’re in the middle of a critical run of parts on your CNC plasma table. The path is programmed, the material is loaded, and the first few cuts look perfect. Then, it starts. You notice excessive dross on the bottom edge of the cut. The kerf angle is inconsistent, and the machine’s controller starts flashing a low-pressure warning. A quick check of the gauge at the plasma cutter inlet reveals the problem: you’re seeing a 10, maybe even 15 PSI drop from your main airline pressure whenever the torch is active. As a Senior Applications Engineer with over two decades in the field, I’ve seen this exact scenario play out in hundreds of shops. This pressure drop isn’t just an annoyance; it’s a direct threat to part quality, consumable life, and your bottom line. The root cause almost always traces back to a misunderstanding or misapplication of the fundamental plasma cutter air compressor requirements. Meeting these requirements isn’t about just having enough pressure; it’s about delivering the right volume and quality of air, consistently, at the point of use.

This article provides a technical breakdown of why pressure drops occur in plasma cutting systems and presents a definitive solution. We will analyze the critical differences between centralized and point-of-use air systems, explain why oil-free air is the only acceptable standard, and detail how modern pump technologies like VFDs and 24V DC controls solve these issues permanently. This is the practical guide for plant engineers and procurement managers who are tired of chasing air pressure problems and are ready to implement a reliable, long-term fix.

The Anatomy of a Pressure Drop: Root Cause Analysis

Pressure drop is a symptom of a system that cannot meet the instantaneous flow rate (CFM) demanded by the plasma torch at the required pressure (PSI). While a large central compressor might be rated for 200 CFM at 125 PSI, that means very little if the torch itself is starved for air. Understanding the specific plasma cutter air compressor requirements means looking beyond the compressor’s data sheet and analyzing the entire system.

Inadequate CFM Delivery at the Point of Use

The most common mistake I see is conflating the compressor’s rated CFM with the CFM delivered to the machine. A plasma torch is a high-consumption, intermittent-use device. When the arc initiates, it demands a sudden, high volume of air. For example, a Hypertherm Powermax105 requires 480 SCFH (Standard Cubic Feet per Hour), which translates to 8 CFM, at a flowing inlet pressure of 90 PSI.

If your system cannot supply this 8 CFM at that exact moment, the pressure will inevitably fall. This is a flow problem, not just a pressure problem. A large, 500-gallon receiver tank connected to a central compressor might seem sufficient, but long, undersized pipe runs, multiple elbows, quick-disconnect fittings, and coiled hoses all create restrictions that choke the airflow. The result is a 110 PSI static pressure that plummets to 80 PSI the second the torch fires, ruining your cut. A critical aspect of meeting your plasma cutter air compressor requirements is ensuring your delivery infrastructure can handle the required flow rate without significant friction loss.

The Hidden Costs of Oil Contamination

The second major failure point is air quality. Many shops run their entire plant, including their sensitive plasma cutters, off a single large, oil-flooded rotary screw or piston compressor. While these are workhorses for air tools, they are a disaster for plasma cutting. Oil, in aerosolized form, is introduced into the air stream. Even with coalescing filters and dryers, some oil inevitably gets through.

This oil contamination has several destructive effects:

1. Consumable Fouling: Oil coats the inside of the nozzle and electrode. This leads to poor arc initiation, a wandering or “sputtering” arc, and drastically reduced consumable life. You end up spending more on copper and hafnium than you should.
2. Cut Quality Degradation: The burning oil creates carbon deposits, which interfere with the plasma stream’s shape and velocity. This results in a beveled or angled cut edge instead of a clean, square one.
3. Safety Hazard: In high-amperage systems, oil vapor can create a flammable mixture inside the torch, leading to premature and sometimes violent failure of the torch head.

Strict plasma cutter air compressor requirements mandate clean, dry, oil-free air, typically meeting or exceeding ISO 8573-1 Class 1.2.1 standards. Relying on filtration to clean up dirty air from an oil-lubricated compressor is a reactive, expensive, and often ineffective strategy.

Undersized Piping and System “Sinks”

Think of your compressed air piping as a highway. If you have a 10-lane highway (your compressor) feeding into a one-lane dirt road (your 1/4-inch coiled hose), you will have a traffic jam. The volume of air simply cannot get to its destination fast enough.

Here is a quick reference for pressure loss in piping. A 100-foot run of 1/2-inch pipe flowing 10 CFM at 100 PSI will experience a pressure drop of approximately 3.4 PSI. If that pipe is 3/4-inch, the drop is only 0.7 PSI. Now, add in losses from elbows, valves, and quick-connects, and you can easily see how a 10-15 PSI drop accumulates. Furthermore, other intermittent high-demand air users on the same line (e.g., a sandblasting cabinet, large pneumatic actuators) act as “sinks,” momentarily stealing air volume and causing pressure sags that affect the plasma cutter. Fulfilling the plasma cutter air compressor requirements is as much about plumbing design as it is about the compressor itself.

Centralized vs. Point-of-Use: A Critical Decision for Plasma Cutter Air Compressor Requirements

The traditional approach of a single, large central compressor is being challenged by a more efficient and reliable model: dedicated, point-of-use compressors. For a sensitive application like plasma cutting, this is not just a preference; it’s a best practice.

A centralized system forces you to compromise. You buy a large, oil-flooded compressor to run everything from impact wrenches to the plasma table. The air quality is poor by default, requiring expensive and maintenance-heavy filtration and drying systems. The pressure is regulated plant-wide, often higher than needed, wasting energy. And as we’ve discussed, the extensive piping network is an inherent source of pressure drop and leaks.

A point-of-use system dedicates a smaller, purpose-built compressor directly to the plasma cutter. This solves the core problems:

• No Pressure Drop: The compressor is located within a few feet of the machine, connected with short, large-diameter hard piping. Frictional losses are virtually eliminated.
• Guaranteed Air Quality: Using an oilless compressor at the point of use ensures the air supply is free from oil contamination from the start. No complex filtration is needed.
• Energy Efficiency: The compressor only runs when the plasma cutter needs it, and it’s sized specifically for that load, eliminating the waste of running a massive central unit for a small-demand application.

This approach transforms the way you manage one of the most important plasma cutter air compressor requirements: consistent air delivery.

Feature	Centralized Oil-Flooded System	Dedicated Point-of-Use Oilless System
Location	Remote compressor room	Beside the CNC plasma table
Pressure Drop	High (5-20+ PSI) due to long pipe runs	Negligible (<1 PSI)
Air Quality (at source)	Oil-contaminated	Inherently oil-free
Required Filtration	Coalescing filters, oil separators, dryers	Particulate filter, optional membrane dryer
Energy Use	High; large motor runs for general plant use	Low; smaller motor runs only on demand
Installation Complexity	High; extensive plant-wide piping	Low; short run of pipe to the machine
Vulnerability	Entire plant air system can affect plasma	Isolated; unaffected by other air users

---

Case Study 1: Metal Fabrication Shop Overcomes Quality Issues

A mid-sized fabrication shop in Wisconsin was experiencing inconsistent cut quality on their 4’x8′ plasma table, used for cutting 1/2″ mild steel brackets. Their 50 HP central rotary screw compressor was set to 120 PSI, but they measured only 85-90 PSI at the torch during a cut. The result was heavy dross that required a full-time employee to grind off, adding significant labor cost.

After analyzing their plasma cutter air compressor requirements, they installed a dedicated point-of-use compressor next to the table. They chose a unit capable of delivering 10 CFM at a constant 100 PSI. The compressor was connected to the plasma cutter’s inlet with a 10-foot section of 3/4″ rigid pipe.

Outcome: The pressure drop was eliminated. The pressure at the torch held steady at 98 PSI during the entire cut. Dross was reduced by over 90%, eliminating the secondary grinding operation. They also reported a 25% increase in nozzle and electrode life, which they attributed to the cleaner, drier air from the new dedicated system. The ROI on the point-of-use compressor was calculated at just under 7 months.

---

Meeting ISO 8573-1: Why Oil-Free is a Core Plasma Cutter Air Compressor Requirement

For any high-precision thermal process, air purity is paramount. The international standard for compressed air quality is ISO 8573-1. This standard classifies air purity based on the concentration of three contaminant types: solid particles, water, and oil. Each is assigned a class number, from Class 0 (the most stringent) to Class X.

For plasma cutting, the recommended minimum air quality is typically ISO 8573-1:2010 [1:2:1].

• Class 1 (Particles): No more than 20,000 particles at 0.1-0.5 micron size per cubic meter.
• Class 2 (Water): A pressure dew point of -40°F (-40°C). This requires a desiccant or membrane dryer.
• Class 1 (Oil): No more than 0.01 mg/m³ of total oil (aerosol, liquid, and vapor).

Achieving Class 1 for oil with an oil-lubricated compressor is a constant battle. It requires an expensive and high-maintenance train of separators and multi-stage coalescing and activated carbon filters. Even then, filter performance degrades over time, and a catastrophic failure can send a slug of oil directly to your US$5,000 plasma torch.

The only way to definitively meet this critical plasma cutter air compressor requirement is to remove oil from the equation entirely. An oilless compressor, like our HC1500 Oilless Air Pump, uses permanently sealed bearings and PTFE or carbon-graphite piston rings that require no lubrication. The air it produces is inherently oil-free, easily meeting Class 1 and often approaching the more stringent Class 0.

Parameter	Oil-Lubricated Compressor System	Oilless Compressor System
Initial Cost	Lower for the base compressor	Higher for the base compressor
Downstream Costs	High: Oil separators, multi-stage filters, carbon towers, frequent filter element changes, condensate disposal	Low: Simple particulate filter
Maintenance	Oil changes, oil/air separator changes, filter element changes, condensate management	Piston seal/ring replacement (long intervals), bearing checks
Risk of Contamination	High and persistent	Virtually zero
Total Cost of Ownership	Higher over 3-5 years	Lower over 3-5 years

From a procurement manager’s perspective, focusing only on the initial purchase price of the compressor is a mistake. When you factor in the cost of filtration, maintenance, downtime, and ruined parts from oil contamination, the total cost of ownership for an oilless system is significantly lower. Fulfilling the plasma cutter air compressor requirements with an oil-free source is a smart long-term investment.

The VFD and 24V DC Advantage: Advanced Plasma Cutter Air Compressor Requirements

Modern manufacturing demands smarter, more integrated equipment. The air compressor is no exception. Two key technologies—Variable Frequency Drives (VFDs) and 24V DC controls—are essential for meeting advanced plasma cutter air compressor requirements in an automated environment.

VFD: The Ultimate Pressure Stabilizer

A traditional compressor uses a pressure switch. It runs at full speed until the tank reaches a high setpoint (e.g., 125 PSI), then shuts off. It doesn’t restart until the pressure drops to a low setpoint (e.g., 95 PSI). This creates a 30 PSI pressure band in the tank, which is then smoothed out by a regulator. However, during a long cut, the pressure can steadily fall, and if the torch’s demand is high, it can fall below the regulator’s setpoint, causing a pressure drop at the tool.

A VFD-controlled compressor, in contrast, modulates the motor’s speed to precisely match air demand. It aims to hold a single, constant pressure setpoint (e.g., 105 PSI). When the plasma torch starts cutting, the VFD instantly ramps up the motor speed to produce exactly the CFM being consumed. When the cut stops, it slows down.

This has two huge benefits:

1. Rock-Solid Pressure: It completely eliminates the pressure drop caused by compressor cycling. The pressure supplied to the regulator is constant, meaning the pressure at the torch is constant.
2. Energy Savings: Running the motor at the lowest required speed is far more efficient than the start/stop cycle of a fixed-speed machine. Energy savings can be as high as 30-50%.

A VFD is a powerful tool for satisfying the most stringent plasma cutter air compressor requirements for pressure stability.

24V DC Control: Smart Integration with your CNC

In a modern, automated shop, equipment should work together. Most CNC controllers operate on a 24V DC logic circuit. A compressor equipped with a 24V DC control input can be wired directly into the CNC’s auxiliary M-code functions.

This allows for smooth automation:

• The CNC program can issue an M-code (e.g., M08) to turn the compressor on just before the first cut.
• The compressor runs only during the cutting cycle.
• At the end of the program, another M-code (e.g., M09) turns the compressor off.

This level of integration ensures the compressor isn’t running needlessly between jobs or overnight, saving energy and reducing wear. It also simplifies operation for the machine tender. This is a forward-looking feature that addresses the evolving plasma cutter air compressor requirements of Industry 4.0 environments. The HCEM Pump HC1500 is specifically designed with these 24V DC control capabilities for easy integration.

---

Case Study 2: Aerospace Supplier Achieves ISO Compliance

An AS9100 certified aerospace supplier was using a 10-year-old, 15 HP oil-lubricated piston compressor with a refrigerated dryer to supply air to their high-definition plasma cutter. They were experiencing random cut failures and had to scrap several expensive titanium parts due to microscopic carbon inclusions traced back to oil in the airline. Their quality audit flagged the air system as a major risk.

Their engineering team determined that the plasma cutter air compressor requirements for their process demanded ISO 8573-1 Class 1.1.1 air quality, which was impossible with their current setup.

Solution: They installed a dedicated, point-of-use oilless scroll compressor with an integrated membrane dryer. The pump featured a VFD and was wired into the CNC’s 24V DC control panel.

Outcome: Post-installation air quality testing confirmed they were achieving Class 1.1.1. Part scrappage due to contamination dropped to zero. The VFD maintained pressure within a +/- 1 PSI band, improving cut angle consistency and allowing them to hold tighter tolerances. The integration with the CNC controller reduced the compressor’s daily runtime by 60%, leading to significant energy savings and extending the pump’s service life.

---

Implementation Guide: A 4-Step Plan to Eliminate Pressure Drop

Ready to solve your pressure problems for good? Follow this practical, four-step plan. This process is designed to systematically identify and correct the issues preventing you from meeting your plasma cutter air compressor requirements.

Step 1: Audit Your Current System & Measure Everything
Don’t guess. Get two reliable pressure gauges. Install one at the compressor’s discharge tank and the other directly at the air inlet of the plasma cutting machine. Record the static pressure (no air flowing) and the dynamic pressure (while the torch is cutting) at both locations. The difference between the compressor’s dynamic pressure and the plasma cutter’s dynamic pressure is your total system pressure drop. This number is your enemy.

Step 2: Calculate Your True CFM & Pressure Demand
Consult the operator’s manual for your specific plasma cutter model. Don’t use generic numbers. Find the manufacturer’s specified flow rate (often in CFM or SCFH) and the required minimum inlet pressure. For example, the manual might state “8.5 CFM at 90 PSI.” This is your target. Your air compressor solution must be able to deliver this, plus a 20-25% safety margin to account for wear and atmospheric conditions. When evaluating compressors, always refer to the “Delivered CFM” at your target pressure, not just the “Displacement CFM.” Reputable manufacturers provide performance data sheets, like those standardized by the CAGI Compressed Air Data Sheets.

Step 3: Design Your Plumbing for Flow, Not Convenience
If you are installing a point-of-use compressor, this is simple. Use a short (under 15 feet) length of rigid pipe, sized appropriately. A 3/4″ or even 1″ diameter pipe is not overkill; it’s insurance against friction loss. Avoid coiled plastic hoses and restrictive quick-disconnect fittings. Use smooth, full-bore ball valves. If you must stick with a central system, analyze your entire pipe run. Look for undersized sections, excessive 90-degree elbows, and unnecessary fittings that can be eliminated. Understanding the terminology can be helpful; the CAGI Glossary of Compressed Air Terms is a great resource.

Step 4: Select the Right Compressor Technology
Based on your audit and calculations, you can now select a compressor. For any precision plasma cutting application, the selection criteria should be:
1. Technology: Oilless (scroll or piston) to guarantee air purity.
2. Sizing: Capable of delivering your required CFM + 25% safety margin at your required pressure.
3. Location: Point-of-use to eliminate pressure drop.
4. Features: VFD for pressure stability and energy efficiency; 24V DC control for automation integration.

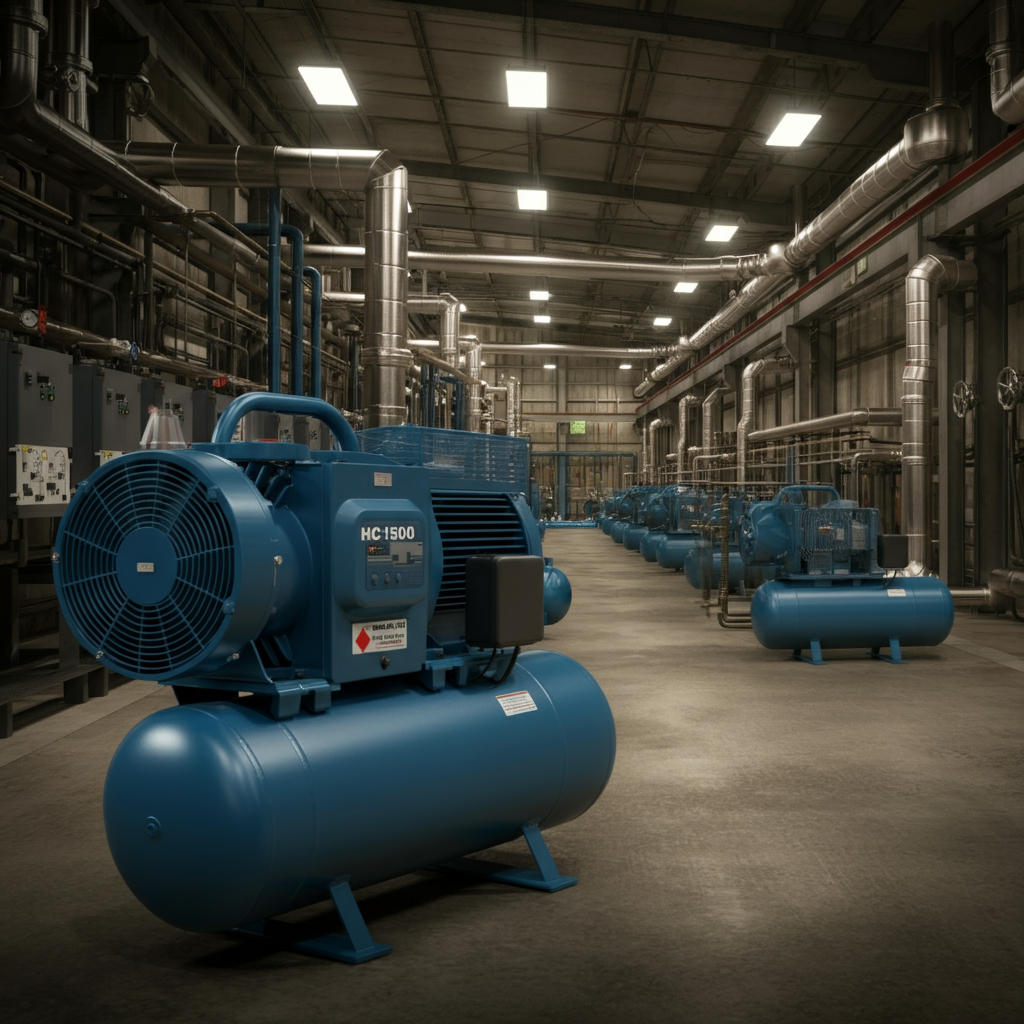

The HC1500 Oilless Air Pump is an example of a unit designed to meet these specific criteria. You can view full technical specifications to see how it aligns with the demanding plasma cutter air compressor requirements of modern fabrication.

Frequently Asked Questions

What’s the ideal pressure and CFM for a typical CNC plasma cutter?
There is no single “ideal” number, as it varies significantly by manufacturer and amperage. However, a common range for a mid-size machine (e.g., 80-130 amps) is 6-9 CFM at a flowing pressure of 90-100 PSI. It is absolutely critical to consult your plasma cutter’s manual for the exact specifications. Undersupplying by even 1 CFM or 5 PSI can degrade cut quality. Always size your compressor to exceed the manual’s stated plasma cutter air compressor requirements by at least 25% to ensure consistent performance.

Can I use my existing shop air compressor for a new plasma table?
While technically possible, it’s rarely advisable for high-quality, reliable cutting. Most general shop compressors are oil-lubricated, which introduces contaminants that foul consumables and ruin cuts. They also supply a large, shared network where other tools can cause pressure drops that affect the plasma cutter. Using a dedicated, oil-free, point-of-use compressor is the professional standard and ensures you consistently meet the specific plasma cutter air compressor requirements without interference, leading to a much lower total cost of ownership through better parts and longer consumable life.

How does ambient temperature affect my plasma cutter air compressor requirements?
Temperature has a significant impact. First, higher ambient temperatures reduce the density of the air, which can lower the mass flow rate from your compressor, effectively reducing its CFM output. Second, warmer air can hold more moisture. This places a much higher load on your air dryer. A dryer that works perfectly in winter may be overwhelmed on a hot, humid summer day, allowing water into your torch. When specifying your system, it’s crucial to consider the worst-case (hottest and most humid) conditions your shop will experience.

What does ISO 8573-1 Class 1.2.1 mean and why is it important for plasma cutting?
This is a compressed air purity standard. The three numbers refer to the maximum allowable contaminants for Solid Particles, Water, and Oil. Class [1.2.1] means: Class 1 for Particles (extremely few), Class 2 for Water (a very dry -40°F dew point), and Class 1 for Oil (practically oil-free at 0.01 mg/m³). This level of purity is vital because any particle, water droplet, or oil aerosol that enters the plasma torch can disrupt the arc, cause rapid consumable wear, and lead to poor, drossy cuts. Meeting this standard is a key plasma cutter air compressor requirement.

Is an oilless compressor really worth the extra initial cost?
Absolutely. From a total cost of ownership (TCO) perspective, an oilless compressor is almost always cheaper for a plasma cutting application. While the initial purchase price may be 15-25% higher, you eliminate the significant costs of multi-stage oil filtration systems, frequent filter element replacements, maintenance labor for oil changes, and contaminated condensate disposal. Most importantly, you eliminate the massive hidden costs of premature consumable wear, rejected parts, and production downtime caused by oil contamination, making the ROI on an oilless unit very rapid.

How much maintenance does an oilless pump like the HC1500 require?
Maintenance for a high-quality oilless pump is minimal and predictable compared to an oil-lubricated unit. There are no oil levels to check or oil to change. The primary service items are the piston seals and guide rings, which are long-life components typically replaced at intervals of 8,000-10,000 operating hours. Other maintenance includes periodically checking/cleaning the inlet filter and inspecting the sealed bearings. This predictable, low-touch maintenance schedule makes it ideal for busy production environments and supports a lower TCO.

Frequently Asked Questions

Conclusion

That 10 PSI pressure drop at your plasma table is more than a minor issue; it’s a clear signal that your compressed air system is failing to meet the machine’s demands. The solution is not to simply increase the pressure on your central compressor. The definitive, long-term fix is to address the problem at its source by adopting a system that is designed from the ground up to meet the rigorous plasma cutter air compressor requirements. This means moving to a dedicated, point-of-use, oilless air compressor. This approach eliminates pressure drop, guarantees the air purity needed for clean cuts and long consumable life, and offers superior energy efficiency and automation capabilities. By investing in the right air supply infrastructure, you transform compressed air from a chronic problem into a reliable, quality-enhancing asset. Stop chasing pressure drops and start implementing a solution that meets the true plasma cutter air compressor requirements of your precision equipment.
