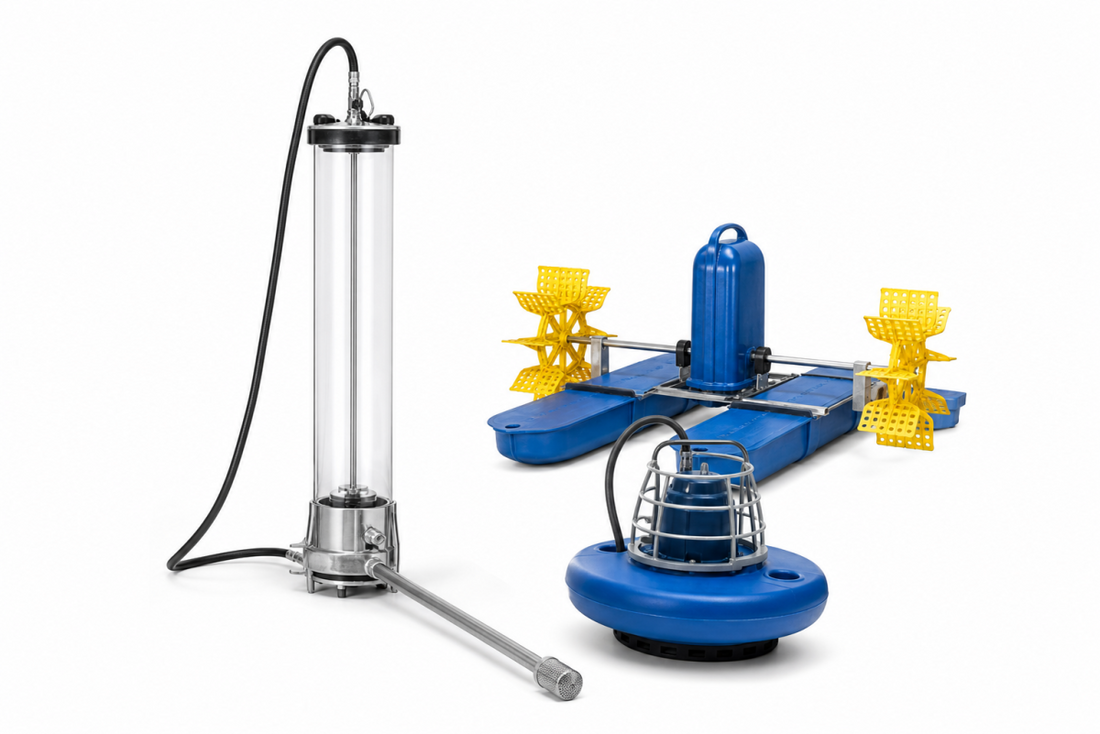

Why Did Our Fish Farm Vacuum Sampler Fail Beside Aerators?

I was standing on a wet concrete walkway outside a tilapia grow-out building near Fresno, California, listening to four paddlewheel aerators slap the water like somebody was beating laundry on a rock.

The sampler cart was parked maybe 6 ft from the tank edge. Hoses were zip-tied to a rail. The operator had a hand over one ear because the aerators were already making about 82 dB(A), and the pump cabinet added its own angry rattle on top.

The complaint was simple.

“It works in the lab. It dies out here.”

I’ve heard that sentence more times than I can count.

This setup was pulling small water samples through a wand and a suction cup pickup into a collection bottle. In the lab, it was clean water, short tubing, no splash, and a nice quiet bench. Out at the fish farm, it was warm air, wet mist, foam, fish feed dust, 30 ft of hose, and aerators kicking water sideways every few seconds.

That’s not the same job.

The pump they had was sold as a small fish farm vacuum pump, but it was really a light-duty unit meant for dry service. It could make vacuum on a gauge. It could move air on a bench. But beside aerators, it was breathing soup.

The first clue was the sound

I always listen before I touch anything.

That pump didn’t have a smooth piston rhythm. It had a wet cough. Every few cycles, the pitch changed like it was swallowing a teaspoon of water.

The nameplate said 120 V, 0.35 kW. The inline meter showed 0.52 kW during operation, then 0.68 kW when the pickup line started slugging water. That told me the motor wasn’t just moving air anymore. It was fighting restriction, liquid carryover, and probably a hot valve plate.

The vacuum gauge bounced between -12 inHg and -18 inHg. In the lab, they said it held -20 inHg steady.

That bounce mattered more than the number.

A sampler doesn’t just need a deep vacuum for one second. It needs stable airflow through the tubing while the suction cup pickup stays sealed and the water column behaves. If the flow pulses too hard, the cup chatters. If the vacuum dips, the cup lifts. If the cup lifts near aerated water, it pulls foam and spray instead of a clean sample.

That’s exactly what I saw.

The cup would seal, lift a slug, lose seal, inhale bubbles, and then the collection bottle would get a mix of water, foam, and air. The operator thought the pump was weak. I thought the system was lying to the pump.

Most engineers get CFM sizing wrong on these jobs.

They look at vacuum level first. I look at flow at the working vacuum, through the actual hose, with the actual pickup, in the actual wet place. A pump that shows 25 inHg on a plugged gauge can still be useless if it only moves 0.3 CFM once the line is wet and leaking around a suction cup.

On that farm, the sampler needed about 1.2 CFM at the tool end to stay stable. With 30 ft of 1/4 in ID tubing, two quick-connects, a small filter, and a wet cup seal, the pump needed closer to 2.0 CFM free air just to give us room.

The installed pump was rated 1.1 CFM, and that rating wasn’t at the vacuum point they were using.

That’s where the trouble started.

Lab vacuum sampling isn’t pond-side sampling

I don’t knock lab people. I’ve worked with some sharp ones.

But lab vacuum sampling makes everybody a little too comfortable. The bench is dry. The tube is short. The bottle sits lower than the wand. Nobody has a paddlewheel aerator throwing mist into the inlet. Nobody has fish feed oil coating the inside of the hose.

The farm had a 3/8 in sampling wand stepped down to 1/4 in tubing, then back up into a bottle cap fitting. Every adapter was a small loss. Every barb had a little trapped moisture. The line had a low spot, and that low spot became a water trap.

So the pump wasn’t seeing a clean air load. It was seeing a changing mix of air, vapor, foam, and slugs.

I pulled the hose off and blew it into a bucket. Brown water came out, then a piece of feed pellet, then more water. The operator just looked at me and said, “Well, that’s new.”

It wasn’t new. It was just hidden.

I’ve used the AVS Introduction to Vacuum Technology more than once when I’m explaining this to younger engineers, because it makes one thing clear without making a big speech out of it: vacuum work is gas flow work. The piping matters. Conductance matters. Restrictions matter.

A vacuum gauge at the pump doesn’t tell you what the pickup sees.

I taped a second gauge near the wand. At the pump, we saw -16 inHg. Near the pickup, it was only -8 inHg during the bad cycles. That’s a big difference for a small sampler.

And beside an aerator, -8 inHg at the cup isn’t much.

Oil-free helped, but it didn’t fix bad plumbing

They asked if they needed an oil-free piston compressor style unit.

For fish work, I usually like oil-free. I don’t want oil mist near sample bottles, sensor lines, or water quality checks. If the sample is going to a lab, oil contamination can turn a normal result into a long argument.

But “oil-free” doesn’t mean “water-proof.”

An oil-free piston compressor used for vacuum still needs inlet protection, drainage, and some respect. Valves don’t like sticky foam. Piston cups don’t like abrasive feed dust. Reed valves don’t like getting slapped with water slugs every minute.

I had an HC580A Vacuum Pump in the truck because I’d been testing one for small sampling and holding jobs. I didn’t tell them it would magically fix the site. I told them the pump had more useful flow for that kind of intermittent vacuum sampling, but only if we stopped feeding it pond mist.

So we moved the pump.

Not far. Just 14 ft back from the tank edge, up on a shelf, with the inlet line routed high before it dropped to the sample bottle. I added a clear moisture trap before the pump and swapped one ugly quick-connect that was leaking whenever the hose flexed.

Then we shortened the pickup line from 30 ft to 18 ft.

That one change did more than the customer expected.

The pump-side vacuum settled around -17 inHg. The pickup-side gauge stayed near -14 inHg during a sample pull. Flow at the line, measured with a rotameter I keep in a beat-up case, was about 1.6 CFM during steady draw.

The cup stopped chattering.

Not perfect. But honest.

The motor draw stayed around 0.44 kW after we cleaned up the line. Before that, I’d seen it hit 0.68 kW during wet restriction. If that sampler ran 10 hours a day, 300 days a year, and power cost $0.14/kWh, that little difference was around $100/year just in wasted electrical draw.

That’s not a huge utility bill story.

But it’s a good heat story. It’s a motor life story. It’s a “why does this pump smell hot every afternoon” story.

Noise told me where the next fight would be

Once the sampler worked, the supervisor asked about noise.

The aerators were the loudest thing out there, but the pump cabinet was close to the operator’s station. I measured 76 dB(A) at 3 ft from the pump after we moved it. At the operator’s normal spot, combined with aerator noise, the meter moved between 84 and 87 dB(A).

That got my attention.

OSHA’s hearing conservation action level is 85 dB(A) as an 8-hour time-weighted average under 29 CFR 1910.95. I’m not an industrial hygienist, and I don’t pretend to be one, but I know when to tell a plant manager to stop guessing and measure exposure the right way.

Small pumps get ignored because they’re small.

Then somebody parks one beside a blower, two aerators, a feed conveyor, and a pressure washer, and suddenly the operator’s ears are living in a bad neighborhood.

We added rubber feet and stopped the cabinet panel from buzzing against the frame. That only took maybe 3 dB off at the pump, but 3 dB is still real. It’s not just comfort. Noise often tells me when vibration is beating up fittings and making leaks worse.

That’s what was happening here. One tube barb had a shiny wear mark from rubbing on the rail.

I’ve learned not to separate dB(A) noise from vacuum reliability. On wet outdoor carts, vibration becomes leaks. Leaks become poor CFM at the pickup. Poor CFM becomes bad samples.

And then somebody blames the pump.

The rating sheet doesn’t sample the pond

I’m a big believer in data sheets, but I don’t worship them.

The CAGI Compressed Air Data Sheets are a good reminder that performance claims need common test points and clear conditions. The U.S. DOE Compressed Air Challenge says the same kind of thing in a broader way: compressed air and vacuum systems cost money when people ignore leaks, pressure drop, and demand.

That applies even on a fish farm with a little sampler cart.

The number on the box doesn’t know your hose is full of algae water. It doesn’t know your aerator throws spray every 4 seconds. It doesn’t know your suction cup pickup has a nick in the lip. It doesn’t know somebody coiled 20 extra feet of tube behind the tank because it looked tidy.

I’ve seen engineers size a fish farm vacuum pump like they’re picking a bench tool.

They’ll say, “We need -20 inHg.”

I’ll ask, “At what flow?”

Then the room gets quiet.

Vacuum level is only half the sentence. CFM sizing finishes it. If I don’t know the line length, tube ID, sample lift height, duty cycle, water carryover risk, and pickup geometry, I don’t really know the pump.

On this job, the vertical lift was only about 3 ft, so nobody thought it mattered. But the horizontal run, fittings, wet line, and aerator foam mattered more. The sampler failed sideways, not upward.

That’s a phrase I wrote in my notebook.

“Failed sideways.”

Because the pump could lift water. It just couldn’t keep a clean, steady sample path beside all that turbulence.

What I changed before I left

I didn’t leave them with a fancy skid or a big invoice.

I left them with a pump placed out of the spray zone, a high loop in the inlet, a drainable moisture trap, shorter tubing, fewer fittings, and a pickup cup that wasn’t half worn out. I marked the trap with a paint pen so the operator could see the normal water line at a glance.

I also told them to stop testing the system with a plugged hose.

A dead-head vacuum test is fine for checking whether the pump can pull down. It doesn’t prove the sampler works. For this setup, I wanted a timed pull of 250 mL, at the tank, with aerators running, with the bottle and tubing in their normal spots.

Their old setup took anywhere from 18 to 45 seconds to grab that sample, and sometimes it foamed over. After the changes, it stayed around 16 to 20 seconds without the nasty surging.

That’s the kind of number I trust.

I don’t care if a bench test looks pretty. I care if Maria on second shift can pull the same sample at 3 p.m. when it’s hot, loud, and wet.

Near the end of the visit, the supervisor asked if the HC580A was “the answer.”

I told him it was part of the answer. The rest was keeping water out of the inlet, giving the pump enough CFM margin, and not pretending a fish house is a laboratory.

If you’re comparing small vacuum pumps for this kind of job, don’t just stare at the maximum vacuum line. Look at flow, duty, power, noise, and how the pump behaves with real restrictions. You can view full technical specifications and then check those numbers against the tubing and pickup you actually plan to use.

I packed up while the aerators were still hammering the surface.

The sampler pulled three clean bottles in a row before I left. The operator held one up to the light, saw water instead of foam, and gave me the smallest nod in the world.
