Electronics Vacuum Pump Setup Guide: How to Replace the Portable Compressor Mistake

A correct electronics vacuum pump setup lets you run pick-and-place suction, tray handling, light packaging vacuum, and fixture hold-down without dragging a noisy portable compressor to the line. After reading, you should be able to size the pump, install tubing, set negative pressure kPa targets, verify CFM flow rate, and commission a 24V DC oil-free pump with less than 65 dB(A) at the operator station. For compact electronics workcells, the HC1500A Vacuum Pump is a practical reference point because it matches the flow and vacuum range used on many SMT support and test fixtures.

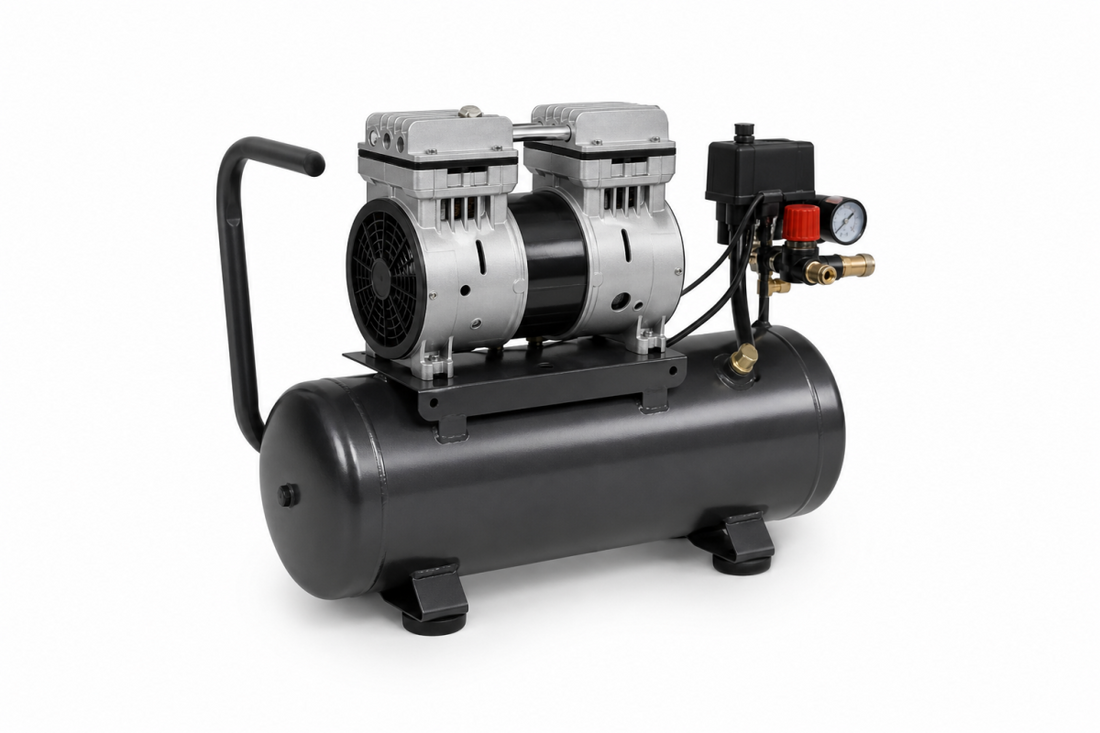

When I audited a 42,000 sq ft electronics assembly area in Suzhou last spring, three portable compressors were feeding venturi vacuum generators beside inspection benches. The plant was paying about $4,900/year in wasted compressed air and still losing 18–25 components per shift from unstable suction.

Before You Start: Prerequisites & Tools

Before starting an electronics vacuum pump setup, record the actual vacuum demand at the tool, not the catalog number on the end effector. Portable compressors often hide poor design because they make plenty of noise while feeding a small venturi, but they do not prove the vacuum circuit is stable.

Tools and instruments:

• Digital vacuum gauge, 0 to -100 kPa range, resolution 0.1 kPa
• Inline flow meter, 0 to 50 L/min or 0 to 2.0 CFM flow rate
• Sound meter, A-weighted, 30 to 100 dB(A)
• Multimeter rated for 24V DC circuits
• Tubing cutter for 4 mm, 6 mm, and 8 mm OD polyurethane tubing
• Torque screwdriver, 0.4 to 3.0 N·m range
• 10 mm and 12 mm open-end wrenches for common push-to-connect fittings
• Thread sealant approved for pneumatic service; avoid loose PTFE tape on miniature fittings
• 5 µm inlet filter for dusty paper-label or fiberboard packaging areas
• 24V DC power supply with 20% spare current capacity
• Mounting screws, M4 or M5, with vibration washers
• Optional: small vacuum reservoir, 0.25 L to 1.0 L, for intermittent pick cycles

Safety and facility checks:

• Lock out the old compressor branch if it is tied to plant air.
• Confirm the workcell electrical enclosure has a protected 24V DC circuit.
• Keep exhaust air away from solder fumes, conformal coating mist, and operator breathing zones.
• If compressed air remains nearby, check receivers and pressure vessels against OSHA 1910.169 requirements.
• If air quality is part of the product process, specify compressed air per ISO 8573-1. For electronics contact surfaces, I normally start discussions at ISO 8573-1 Class 2 for particles and Class 1 for oil, then confirm with the quality engineer.

Useful references for definitions and test language include AVS Introduction to Vacuum Technology, CAGI Compressed Air Data Sheets, and the CAGI Glossary of Compressed Air Terms.

Measurements to take before removing the existing setup:

1. Current vacuum at the suction cup during part contact: record the lowest stable value in negative pressure kPa.
2. Vacuum recovery time after a part is picked: target less than 250 ms for small SMT trays.
3. Open-flow demand at the tool: measure in L/min or CFM flow rate with the cup uncovered.
4. Noise at operator ear height: measure at 1 m from the source.
5. Duty cycle: record pick time, release time, and cycles per minute for 10 minutes.

For a typical small electronics line, a practical starting target is -55 kPa at the cup, 18 L/min open flow, less than 60 dB(A) at 1 m, and 24V DC supply voltage between 22.8 V and 25.2 V under load.

Step 1: Size the Electronics Vacuum Pump Setup at the Tool, Not the Compressor

The first action is to disconnect the portable compressor or venturi vacuum generator from the end-use point and measure the tool directly. Install the vacuum gauge within 150 mm of the suction cup or fixture port. Use the same tubing size the machine will run in production. For a pick-and-place suction nozzle, 4 mm OD tubing is common; for a fixture plate or packaging vacuum cup manifold, 6 mm or 8 mm OD tubing may be required.

Set the target vacuum based on the part and cup area. A useful field calculation is:

(F = \Delta P \times A)

Where (F) is holding force in newtons, (\Delta P) is pressure differential in pascals, and (A) is cup area in square meters.

Example: a 10 mm diameter cup has area (A = 7.85 \times 10^{-5}\,m^2). At -55 kPa, theoretical holding force is:

(55{,}000 \times 7.85 \times 10^{-5} = 4.32\,N)

That equals about 0.44 kgf before safety factor. For a 35 g module, this looks generous, but acceleration, cup wear, solder-mask texture, and air leakage can cut real holding force by 50%. I prefer at least a 4:1 margin on fast pick-and-place suction.

But the common portable compressor mistake is using 6 bar compressed air through a venturi to create only -45 kPa at the cup.

A small venturi can consume 1.2 CFM of compressed air at 6 bar to create a vacuum flow that a local oil-free pump can produce with about 28 W of electrical input. If the compressed air system costs $0.028 per 100 scf and runs 4,000 hours/year, one “temporary” venturi point can cost more than $1,450/year in air. That number surprises procurement teams because the portable compressor was purchased as a low-cost workaround.

Use this comparison before committing to the layout:

Vacuum Source	Typical Input	Measured Output at Tool	Installation Risk
Portable compressor + venturi	6 bar air, 1.2 CFM	-42 kPa, 12 L/min	High noise, water carryover, unstable flow
Central compressed air + venturi	6.5 bar air, 0.9 CFM	-48 kPa, 15 L/min	Hidden energy cost, depends on header pressure
Local 24V DC oil-free pump	28 W electric	-55 kPa, 18 L/min	Needs correct wiring and inlet filtration
Oversized vacuum pump	90 W electric	-70 kPa, 35 L/min	Excess heat, part bruising, higher noise

For most electronics vacuum pump setup work, do not size only on maximum negative pressure kPa. A pump that reaches -80 kPa but has poor flow at -40 kPa may recover too slowly after a leak. Check the curve at your working point.

Step 2: Mount the Pump and Route Tubing for the Electronics Vacuum Pump Setup

Mount the pump close to the point of use. Keep suction tubing under 1.5 m where possible. Every extra meter of 4 mm OD tubing adds internal volume and slows vacuum recovery, especially on high-cycle pick-and-place suction. For a 6 mm OD by 4 mm ID tube, one meter holds about 12.6 mL of air; five meters adds 63 mL. On a 15 L/min pump, evacuating that added volume from 0 to -55 kPa can add roughly 150–220 ms once leakage and valve restriction are included.

That delay causes a strange failure mode I have seen on electronics trays: the first pick after a long idle succeeds, then the third or fourth pick fails. The pump itself tests fine. The real cause is a long soft tube acting like a spring, so the vacuum sensor sees a good value while the cup pressure lags during rapid motion.

Mounting procedure:

1. Position the pump on a rigid bracket at least 50 mm from heat sinks, servo drives, and enclosure walls.
2. Use M4 screws tightened to 1.2 N·m, or M5 screws tightened to 2.4 N·m, unless the equipment drawing states otherwise.
3. Install vibration washers if the bracket is thinner than 3 mm.
4. Place the inlet filter upstream of the pump, not at the suction cup, so cup response is not restricted.
5. Route suction tubing with a bend radius of at least 25 mm for 4 mm OD tubing and 40 mm for 6 mm OD tubing.
6. Keep tubing away from moving cable carriers unless it is rated for continuous flexing.

For packaging vacuum near electronics final pack stations, use a short manifold and equal-length branches to each cup. If one branch is 300 mm and another is 1,200 mm, the shorter branch grabs first and may skew a tray or label. Equal branch length within 100 mm is a good target.

Noise also belongs in the installation plan. If the old portable compressor measured 78 dB(A) at 1 m and the local pump measures 58 dB(A), the operator hears a large difference because dB(A) is logarithmic. Mounting the pump inside a thin sheet-metal panel can add a 2–4 dB(A) resonance penalty, so test with the door closed.

Step 3: Wire Controls, Sensors, and Release Valves

Connect the 24V DC supply after confirming polarity and voltage under load. A pump drawing 1.4 A at 24V DC needs a supply and wiring that can handle startup current. I normally allow 2.0 A available current for one small vacuum pump and solenoid valve. Use 20 AWG wire for short control-panel runs up to 3 m; use 18 AWG if the run is longer or bundled with other loads.

Install a vacuum switch near the process, not only at the pump inlet. Set the switch-on threshold at -45 kPa and the good-pick confirmation at -50 kPa for small components. For heavier fixtures, use the holding-force calculation instead of copying these values.

Typical wiring sequence:

1. 24V DC positive to protected output or relay contact.
2. Relay output to pump positive.
3. Pump negative to 0V common.
4. Vacuum switch signal to PLC input.
5. Release solenoid output wired separately from pump power.
6. Flyback suppression fitted on relay coils and solenoids if not built in.

For pick-and-place suction, add a release valve when cycle time matters. Relying on natural leakage to drop a part is inconsistent. Set blow-off pressure carefully: 0.2 bar is often enough for small IC trays; 0.5 bar may scatter light labels or flip flexible circuits. Use a needle valve and start at 0.1 bar, then increase in 0.05 bar steps.

For packaging vacuum, use a vacuum reservoir if the seal or cup array has intermittent high demand. A 0.5 L reservoir can stabilize a four-cup carton pick where leakage varies between 6 L/min and 14 L/min. Add a check valve between the pump and reservoir if backflow during release causes slow recovery.

Do not use an oil-lubricated pump for direct electronics handling unless contamination controls have approved it. Oil aerosol can migrate through exhaust routing, settle on ESD mats, and cause poor label adhesion or inspection rejects. An oil-free pump also avoids oil disposal and reduces the chance of mist reaching optical sensors.

Step 4: Commissioning / Testing the Electronics Vacuum Pump Setup

Commissioning proves the electronics vacuum pump setup works under production timing, not just during a bench test. Start with the machine disabled and the pump energized manually. Confirm the pump pulls down to the specified vacuum with all cups blocked. Then test with the smallest, lightest, and most porous parts used on the line.

Acceptance checks:

• Static vacuum with cups blocked: -58 kPa to -65 kPa for a -60 kPa target
• Working vacuum during pick: minimum -50 kPa for small components already validated by force calculation
• Open flow at tool: at least 18 L/min, or 0.64 CFM flow rate, for a two-cup tray pick
• Recovery time from release to -50 kPa: less than 250 ms
• Voltage at pump terminals while running: 22.8 V to 25.2 V
• Surface temperature after 30 minutes: less than 65°C on pump housing
• Noise at 1 m: less than 62 dB(A) with guards closed
• Exhaust direction: not pointed at solder paste, conformal coating, label feed, or operator face

Run 100 production-speed cycles. Record any missed picks, delayed releases, and vacuum alarms. If failures occur only at maximum machine speed, log the vacuum trace if your PLC or sensor supports analog output. A falling waveform during motion usually points to leakage or undersized tubing. A slow waveform that eventually reaches target points to excess volume, a clogged filter, or a pump with insufficient flow at the working vacuum.

Commissioning Checklist

Check	Target Value	Pass/Fail
Static vacuum, cups blocked	-58 to -65 kPa
Working vacuum during pick	Minimum -50 kPa
Open flow at tool	18 L/min / 0.64 CFM
Recovery time to -50 kPa	Under 250 ms
Pump terminal voltage	22.8 to 25.2 V DC
Noise at 1 m	Under 62 dB(A)
Housing temperature after 30 min	Under 65°C
Tubing length, pump to tool	Under 1.5 m preferred

Common Mistake: The #1 error is leaving the venturi-sized tubing and fittings in place after replacing a portable compressor. A 2.5 mm internal restriction can make a correctly sized pump look weak, causing slow pick confirmation, false vacuum alarms, and extra reject handling.

Case Study: A contract electronics manufacturer had 11% missed picks on a shield-can placement station after replacing worn suction cups. We found 4.8 m of 4 mm tubing coiled behind the machine and a clogged 20 µm inlet filter. Shortening the tube to 1.2 m, fitting a 5 µm filter at the pump, and setting good-pick at -52 kPa cut missed picks to 0.6% and saved $3,800/year in rework labor.

Troubleshooting This Installation

Problem 1: Vacuum reaches target slowly.
Fix: Measure vacuum at the pump and at the cup. If the pump reaches -60 kPa in 120 ms but the cup takes 520 ms, reduce tubing length, increase tube ID, remove unnecessary elbows, or move the vacuum switch closer to the cup. Replace push-in fittings with full-flow fittings where the bore is visibly smaller than the tube ID.

Problem 2: Vacuum is stable during idle but drops during machine motion.
Fix: Inspect flexible tubing in the moving axis. Micro-cracks at the gripper bend point often leak only when the head accelerates. Replace with continuous-flex tubing and clamp it so the bend radius stays above 25 mm. Also check that the cup face is not sliding across solder mask texture during acceleration.

Problem 3: The pump overheats after lunch break production.
Fix: Check duty cycle and ambient temperature. A pump mounted beside a 45°C drive heat sink may exceed a 65°C housing target even if flow sizing is correct. Add 50 mm clearance, move exhaust air out of the enclosure, and confirm the inlet filter pressure drop has not increased. If duty cycle is above 80%, consider a reservoir and pressure switch control.

Problem 4: Parts release late or stick to the cup.
Fix: Add a release valve or tune blow-off. Start at 0.1 bar and raise in 0.05 bar steps. For small labels or flexible circuits, shorten blow-off duration to 40 ms before increasing pressure. A 200 ms blow-off pulse can disturb nearby parts even when the pressure is low.

Problem 5: Noise improved at first, then increased after installation.
Fix: Check bracket resonance. A pump rated at 58 dB(A) on a bench can measure 64 dB(A) on a thin side panel. Add a 3 mm steel reinforcement plate or rubber isolation mounts. Confirm no tubing is touching a guard panel and transmitting vibration.

Frequently Asked Questions

Q: How much negative pressure kPa do I need for pick-and-place suction on small electronics parts?
A: Start with the holding-force calculation rather than a fixed vacuum number. For many small SMT support tasks, -50 to -60 kPa at the cup works well when the cup diameter and acceleration are correct. Use at least a 4:1 safety factor between calculated holding force and part weight under motion. If parts have rough surfaces, vent holes, labels, or curved covers, test at production speed and watch recovery time, not just peak vacuum.

Q: Can I keep my existing portable compressor as backup for the electronics vacuum pump setup?
A: You can keep it for maintenance recovery, but do not leave it permanently connected through a venturi unless the energy and contamination risks are accepted. A 6 bar portable compressor can add water, oil mist, heat, and 75–80 dB(A) noise near the operator. If backup is required, use a valved connection, label it clearly, and test both modes. Make sure the PLC vacuum thresholds are valid for each source because venturi flow behavior differs from a local oil-free pump.

Q: What CFM flow rate should procurement specify for an oil-free pump?
A: Specify flow at the working vacuum, not only open flow. For example, “18 L/min at -50 kPa, 24V DC, less than 62 dB(A) at 1 m” is much more useful than “high vacuum pump.” Open flow can be converted using (1\,CFM = 28.3\,L/min), so 18 L/min equals 0.64 CFM. Also ask for duty rating, inlet filter recommendation, and the vacuum curve so engineering can confirm recovery time before purchase.

After installation, inspect suction cups weekly, replace inlet filters every 1,000 operating hours or sooner in paper-dust areas, verify good-pick threshold monthly, and recheck noise and housing temperature after any tooling change. A stable electronics vacuum pump setup is usually quiet and boring: -50 kPa or better during the pick, less than 250 ms recovery, correct 24V DC voltage, and no portable compressor sitting under the bench. For model-specific curves, dimensions, electrical ratings, and installation limits, view full technical specifications before releasing the work order.
