Does a Pond Aerator Really Work? How Aeration Keeps Fish and Water Healthy
HCEM Engineering TeamShare
Yes, a pond aerator really works: a diffuser on the bottom releases a column of bubbles that lifts low-oxygen bottom water to the surface, where it takes up oxygen from the air and releases trapped gases. The bubbles themselves add only part of the oxygen. Most of the benefit comes from the circulation they drive, which stops the pond from settling into a warm, oxygen-rich top layer over a cold, oxygen-starved bottom.
This guide covers how aeration works, the signs a pond is short of oxygen, how much dissolved oxygen fish need, how to size an aerator by pond area and depth, when to run it (including winter), and how to install and look after it. It is written for fishery lakes, estate and farm ponds and larger garden ponds in the UK, and the sizing examples use listed values from our own pond aerator pumps.
How does a pond aerator work?
A diffused (bottom) aeration system has three parts: an air pump on the bank, a weighted airline laid across the pond floor, and one or more diffusers at the deepest points. The pump pushes air down the line; the diffuser breaks it into fine bubbles; the rising bubbles drag water up with them.
- Lift. The bubble plume carries cold bottom water upwards, a far larger volume of water than the air itself.
- Exchange at the surface. The lifted water spreads out across the surface, takes up oxygen from the air and gives off gases such as carbon dioxide and hydrogen sulphide.
- Return. The re-oxygenated water sinks back down at the edges of the plume, so the whole water column keeps turning over.
Without that mixing, a still pond in summer stratifies: sunlight warms the top layer, which floats on colder, denser water below. The top layer stays in contact with the air and the algae in it make oxygen during the day. The bottom layer is cut off, while dead leaves and waste on the floor keep using oxygen as they rot. Over a warm spell the bottom can run out of oxygen completely.
Surface aeration or diffused aeration: which works better?
Both add oxygen. They differ in how deep their effect reaches.
| Type | How it works | Best suited to | Limits |
|---|---|---|---|
| Fountain or surface spray | A water pump throws water into the air; droplets pick up oxygen as they fall | Shallow ponds, ornamental water, visual effect | Mixes mainly the top layer; uses a water pump in the pond |
| Waterfall or stream return | Water tumbling over stones takes in air | Garden ponds with a filter loop | Little effect on deep water away from the return |
| Bottom diffused aeration | Air pump on the bank feeds diffusers on the pond floor | Ponds deeper than about 1.5–2 m, fishery lakes, irregular shapes | Less effective in very shallow water, where each plume lifts less water |
As a rule, the deeper the pond, the stronger the case for diffused aeration, because it is the only one of the three that reaches the bottom. Our bubbler vs aerator comparison goes into the differences in more detail.
What are the signs a pond needs more oxygen?
- Fish gasping at the surface at dawn. Oxygen is lowest just before sunrise, because algae and plants use oxygen all night and only make it again once the light returns. Fish "piping" at the surface early in the morning is the classic warning sign.
- Fish crowding at the inflow, waterfall or fountain, where the water is better oxygenated.
- Sluggish fish that stop feeding during warm weather.
- A rotten-egg smell when the bottom is disturbed. That is hydrogen sulphide, made by decay without oxygen.
- Thick black sludge building up on the floor.
- Algae blooms that suddenly die off. Dying algae use up oxygen as they rot, and a crash after a bloom is a common cause of fish losses.
- Losses after hot, still, overcast weather or a thunderstorm. Warm water holds less oxygen, cloud cuts the oxygen made by algae, and a storm can mix oxygen-free bottom water through the pond all at once.
If you see fish gasping, act at once: start any aeration you have, or use a fountain or pump to spray water across the surface, and stop feeding until the fish recover.
How much dissolved oxygen do fish need?
Dissolved oxygen (DO) is measured in milligrams per litre (mg/L). As a general guideline, many warm-water pond fish start to show stress when DO stays below about 5 mg/L, and levels of 2–3 mg/L and lower can kill them. Tolerance varies with the species, its size, the water temperature and how long the low level lasts, so treat these figures as a guide, not a limit for every pond. A handheld DO meter or a test kit, used at dawn, tells you where your pond actually stands.
Warm water simply cannot hold as much oxygen as cold water. These are the approximate saturation values for fresh water at sea level, the most a pond can hold when it is in balance with the air:
| Water temperature | Oxygen at saturation |
|---|---|
| 5 °C | about 12.8 mg/L |
| 10 °C | about 11.3 mg/L |
| 15 °C | about 10.1 mg/L |
| 20 °C | about 9.1 mg/L |
| 25 °C | about 8.3 mg/L |
| 30 °C | about 7.6 mg/L |
At 25 °C a pond holds at most about 8 mg/L, and fish, plants and the bottom all draw on that overnight. That is why the risk of an oxygen crash is highest on a warm summer night.
Will a pond aerator clear algae and sludge?
It helps, but it is not a cure on its own. When the pond floor stays oxygenated, less phosphorus is released from the sediment into the water, and bacteria that need oxygen break down soft organic sludge faster and without the smell. Both work in your favour. But algae feed on nutrients from all sources, so a pond that receives fertiliser run-off, too much fish feed or a heavy leaf fall will still grow algae. Combine aeration with cutting the nutrients coming in, and expect sludge to reduce gradually over seasons, not weeks. Aeration does nothing for sand, silt or clay that has washed in.
What size pond aerator do I need?
Start from the pond's surface area and depth. Area decides how many diffusers you need to keep the whole pond turning over; depth decides the pressure the pump must overcome to push air out of the diffuser.
Our aerator ratings are given in acres, so here is the conversion:
| Acres | Square metres | Hectares |
|---|---|---|
| 0.5 | about 2,000 m² | 0.2 ha |
| 1 | about 4,050 m² | 0.4 ha |
| 2 | about 8,100 m² | 0.8 ha |
| 3 | about 12,100 m² | 1.2 ha |
| 5 | about 20,200 m² | 2.0 ha |
Here is how coverage, diffusers and power line up across our range. These values come from our current product listings and are still being confirmed model by model, so check the figures for your exact version when you enquire.
| Model | Supply | Power | Diffusers | Max pond size | Weight |
|---|---|---|---|---|---|
| HC100A-1 | 220 V/50 Hz or 110 V/60 Hz | ≤130 W | 1–2 | 0.5 acre | 4.3 kg |
| HC280A-1 | 220 V/50 Hz or 110 V/60 Hz | ≤220 W | 2–3 | 1 acre | 6.0 kg |
| HC480A-1 | 220 V/50 Hz or 110 V/60 Hz | ≤340 W | 3–4 | 2 acres | 10 kg |

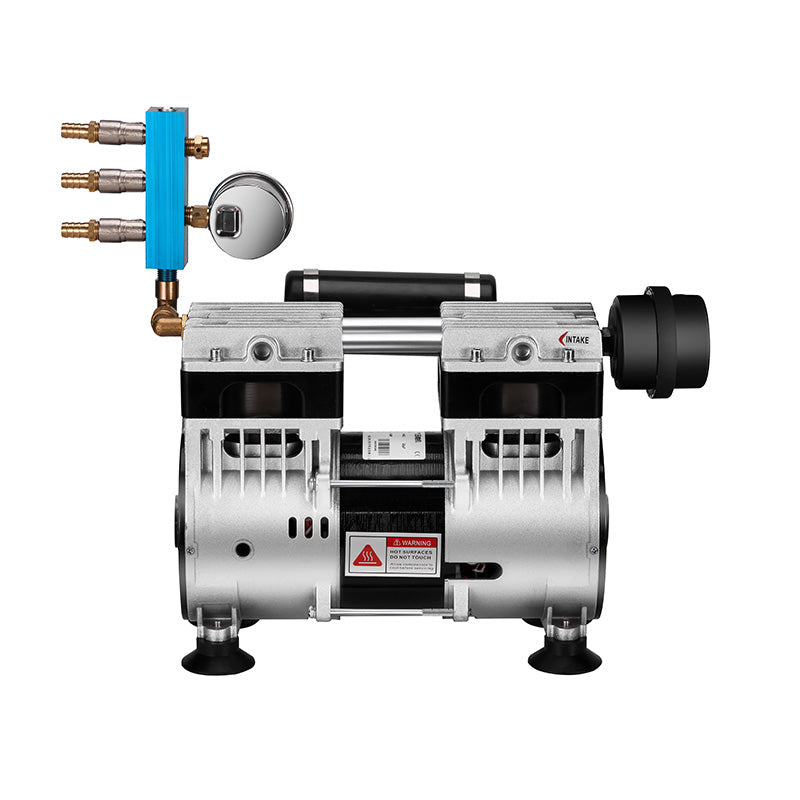

| HC580A-1 | 220 V/50 Hz or 110 V/60 Hz | ≤420 W | 5–6 | 3 acres | 10.8 kg |
| HC1500A-1 | 220 V/50 Hz or 110 V/60 Hz | ≤700 W | 8–10 | 5 acres | 17.5 kg |
| HC100D-1 | 24 V DC | ≤150 W | 1 | 0.5 acre | 3.2 kg |
| HC280D-1 | 24 V DC | ≤340 W | 2 | 1 acre | 5.0 kg |
| HC580D-1 | 24 V DC | ≤600 W | 6 | 3 acres | 10.5 kg |
| HC480A-CAB (cabinet kit) | 220 V/50 Hz or 110 V/60 Hz | ≤340 W | 3 | 2 acres | 28.28 kg |
| HC1500A-CAB (cabinet system) | 220 V/50 Hz | ≤700 W | not listed | up to 5 acres, diffusers down to 15 m | 39.7 kg |
Read across the table and the pattern is roughly one diffuser for every half acre or so. Three things move you up a size:
- Shallow water. A diffuser at 1 m lifts far less water than one at 3 m, so a shallow pond needs more diffusers for the same area.
- An awkward shape. Long, narrow lakes and ponds with bays need a diffuser in each section, whatever the total area.
- A heavy load. High fish stocks, heavy feeding or a lot of leaf fall all use more oxygen.
Depth sets the back pressure. Each metre of water above the diffuser adds about 0.1 bar (9.8 kPa, 1.42 psi) that the pump must beat before any air comes out, plus the opening pressure of the diffuser membrane and the losses along the airline:
| Diffuser depth | Water pressure at the diffuser |
|---|---|
| 1 m | about 0.10 bar (1.4 psi) |
| 2 m | about 0.20 bar (2.8 psi) |
| 3 m | about 0.29 bar (4.3 psi) |
| 5 m | about 0.49 bar (7.1 psi) |
| 10 m | about 0.98 bar (14.2 psi) |
A pump's free-air flow falls as the pressure rises, so the air reaching a deep diffuser is less than the figure on the box. For working out flow per diffuser and checking a pump against depth, see our engineering selection guide for pond aerators. To convert between flow units, use the CFM to L/min converter, and our guide to CFM explains why rated and delivered flow differ.
For a small garden pond of a few square metres, our smallest model, rated for half an acre, is far more than you need. Our range is built for fishery lakes, farm reservoirs, estate ponds and aquaculture, and for pond-equipment brands that fit an aerator pump into their own kits.
Should I run a pond aerator all the time?
In the warm months, running it day and night gives the most stable oxygen level, and most bottom aeration systems are designed for long running hours. Check the duty rating of the pump you choose; our guide to compressor duty cycle explains continuous and intermittent ratings.
If you have to limit the hours, run it at night and through the early morning, when oxygen is falling towards its dawn low. Turning an aerator off at night is the wrong way round: the daytime is when algae are adding oxygen anyway.
Two points on power:
- Running cost is power × hours. At its maximum rated power, a ≤130 W pump uses up to about 3.1 kWh a day running round the clock; a ≤700 W pump up to about 16.8 kWh. Multiply by your tariff. Our fish hatchery aeration energy article looks at running costs on a larger site.
- Solar or DC systems that run straight off a panel only work while the sun shines, which is when oxygen is already high. For night running, a 24 V DC pump needs a battery or a mains backup. Our 12 V vs 24 V DC aeration setup article covers DC wiring.
If a deep pond has never been aerated and is already stratified in summer, start gradually: a short run on the first day, then longer runs over a week or two. Switching straight to full mixing can bring a large volume of oxygen-free bottom water to the surface at once and briefly lower oxygen across the whole pond.
Can you use a pond aerator in winter?
Yes, with care. In a cold spell the warmest water in a pond, at about 4 °C, sits on the bottom, and fish rest there. A diffuser running at the deepest point mixes that water up to the surface and can cool the whole pond. Where hard frosts are likely:
- Move the diffuser into shallower water, part way up the slope rather than at the deepest point, so the bottom layer stays undisturbed.
- Use it to keep a hole open in the ice, so gases from decay can escape. Do not smash ice on a fish pond: the shock stresses fish.
- Keep people and animals off the ice. Ice near an aeration hole is thin and unsafe.
- Protect the airline where it leaves the water, as condensation inside the line can freeze.
Across much of the UK, ponds freeze only for short periods, and many owners run their aerators at a shallower depth or for fewer hours from late autumn to early spring rather than switching off completely.
How do you install a bottom diffused aerator?
- Site the pump on the bank on a firm, dry, ventilated spot above any flood level, shaded and sheltered from rain. A cabinet kit, such as the -CAB models above, houses the pump in a cabinet.
- Fit a check valve in the airline near the pump, so water cannot siphon back into the pump when it stops. This matters most when the pump sits lower than the water surface.
- Lay weighted (self-sinking) airline from the pump to each diffuser. Keep runs as short as you can, avoid kinks, and bury or protect the line where it crosses the bank.
- Place diffusers at the deepest areas, spread across the pond rather than bunched together, and on their base so they sit slightly above the sludge instead of sinking into it.
- Balance the flow with the valves on the manifold when you run more than one diffuser, so that each one gives a similar boil at the surface.
- Power it safely. Use an RCD-protected outdoor supply, installed or checked by a qualified electrician.
How do you maintain a pond aerator?
| Part | What to check | How often |
|---|---|---|
| Air intake filter | Clean or replace; a blocked filter cuts flow and makes the pump run hot | Monthly in the warm season, more often in dusty spots |
| Diffusers | Look at the boil on the surface. A weaker or uneven boil means a fouled or damaged membrane | Watch weekly; lift and clean at least once a year |
| Airline and check valve | Leaks, kinks, damage from animals or mowers on the bank | Every few months |
| Pump | Falling flow, rising temperature or new noises; replace wear parts at the interval in the manual | Per the manufacturer's service interval |
| Cabinet or housing | Ventilation openings clear, no water inside | Every few months |
If flow drops or oxygen stays low despite the aerator running, work through our aerator troubleshooting guide for lost flow and low DO.
Common questions
Do pond aerators really work in shallow ponds?
Yes, but less efficiently. Below about 1.5 m each bubble plume lifts a smaller volume of water, so you need more diffusers for the same area, or a surface method such as a fountain or waterfall.
Should I turn my pond aerator off at night?
No. Night and early morning are when oxygen falls lowest, so that is when the aerator does most good. If you must cut hours, cut them in the afternoon.
Can you over-aerate a pond?
An air diffuser in an ordinary pond is very unlikely to push oxygen to harmful levels. The real risks of too much air are a strong current that stirs up sediment or tires small fish, and, in winter, mixing out the warmer bottom water.
Is a fountain or waterfall enough?
For a shallow garden pond with a modest fish stock, often yes. In a deeper pond, a fountain or waterfall mixes the top layer but leaves the bottom cut off, so a bottom diffuser is the more reliable choice.
Do I still need a filter if I have an aerator?
An aerator adds oxygen and circulation. It does not catch solid waste the way a filter does. In a heavily stocked garden pond, the two do different jobs and work best together.
Browse our pond aerator pumps, or send us the pond area, depth, number of diffusers, supply (AC mains, 24 V DC or solar) and how many hours a day it will run, and our engineers will suggest a model, including OEM versions for your own aeration kits.
