Dental Air Compressor Guide: Sizing, Dryers, Air Quality and Noise
HCEM Engineering TeamShare
A dental air compressor has one job: to deliver oil-free, dry and clean compressed air, at a steady pressure, to every chair in the surgery for as long as the surgery is open. Handpieces, the three-in-one syringe, air scalers and polishers and the chair's own pneumatic functions all run on it, and the air from the syringe goes straight into the patient's mouth. So the choice comes down to five things: oil-free compression, a dryer, the right flow for the number of chairs, low noise and a maintenance routine someone will actually follow.
This guide covers each of them, with the numbers to check on a datasheet. The sizing examples use values from our own oil-free dental compressors.
What does a dental air compressor need to deliver?
Compressed air in a dental surgery does three kinds of work:
- Driving instruments: air turbine handpieces, air scalers, air polishers and some air motors.
- Treating the patient directly: the air-water syringe dries and cleans tooth surfaces, so its air touches the mouth and the bonding surface.
- Moving the chair: on many dental units, air also operates valves, the cuspidor and other pneumatic functions.
That sets four requirements. The air must be free of oil, because oil on a tooth surface weakens adhesive bonds and oil in a turbine shortens its life. It must be dry, because water in the lines corrodes, carries debris into handpiece bearings and gives microbes somewhere to grow. It must be clean, filtered of particles drawn in with the room air. And it must arrive at a steady pressure with enough flow for the chairs that are working at the same time.
Why must a dental compressor be oil-free?
In an oil-lubricated compressor, oil seals and cools the piston, and a small amount always leaves with the air as aerosol and vapour. Filters can remove most of it, but they need changing, and if one is neglected or saturated, oil goes down the line to the chair.
An oil-free compressor has no oil in the compression chamber at all: the piston seals against the cylinder with a self-lubricating ring. Nothing the compressor adds has to be filtered out again, which is why oil-free piston compressors are the normal choice for dental surgeries and dental labs. The air is only as clean as the room air it draws in, though, so an oil-free compressor still needs its intake filter and, downstream, a dryer and fine filters. For the difference between "oil-free" and "oil-free air", see what makes an oil-free air compressor truly oil-free; for the long-term cost of each choice, see the TCO mistake dental clinics make with oiled compressors.
What size dental compressor do I need?
Size by delivered flow at working pressure, matched to the number of chairs that can draw air at the same time. Tank size and motor power come second.
Air consumption per chair
The best figure is the one in your dental unit's installation manual, which states how much air the unit needs and at what pressure. Where you do not have it, compressor suppliers' sizing guides commonly quote somewhere around 30 to 70 L/min per chair (roughly 1 to 2.5 cfm). Treat that as a guideline, not a standard: the low end assumes general dentistry where chairs rarely draw at once, the high end suits busy surgeries using air scalers, air polishers or air motors for long periods. To convert between units, use our CFM to L/min converter or read what CFM means.
Working pressure
Most dental compressors switch on and off somewhere between about 5 and 8 bar (roughly 70 to 115 psi). The dental unit is fed through a regulator at a lower, steady pressure, usually stated in its installation manual. The compressor's cut-in pressure must stay above what the chair needs, plus the pressure lost in the dryer, filters and pipework.
Max flow and flow at pressure are not the same number
Datasheets often show two flows. Max air flow (sometimes called displacement) is measured with no back pressure; air flow at 7 bar is what the compressor actually delivers when it is working. For a piston compressor the second figure is much lower, so compare models on flow at working pressure. Here is how that looks on our oil-free dental compressors (datasheet values; each model number in a pair is a separate model):
| Model | Dental chairs (our rating) | Flow at 7 bar | Max air flow | Tank | Power | Noise | Weight |
|---|---|---|---|---|---|---|---|
| HC4801 / HC5801 | 1–2 | 40 / 60 L/min | 115 / 152 L/min | 30 L | 0.55 / 0.75 kW | 61 / 63 dB | 24.9 / 25.2 kg |

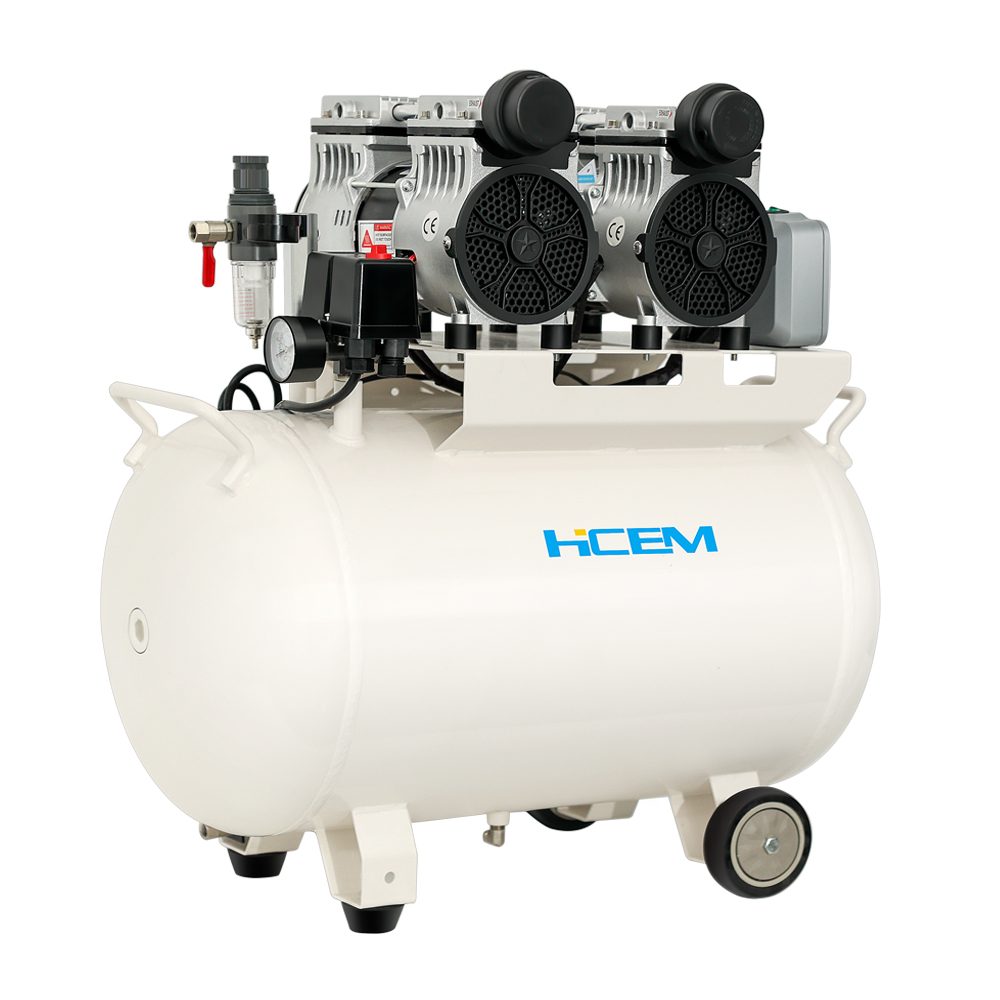

| HC4802 / HC5802 | 3–4 | 80 / 120 L/min | 230 / 304 L/min | 70 L | 1.1 / 1.5 kW | 63 / 66 dB | 51.8 / 52.4 kg |
| HC4803 / HC5803 | 5–6 | 120 / 180 L/min | 345 / 456 L/min | 90 L | 1.65 / 2.25 kW | 66 / 69 dB | 61.1 / 62 kg |
| HC4804 / HC5804 | 7–8 | 160 / 240 L/min | 460 / 608 L/min | 120 L | 2.2 / 3 kW | 71 / 72 dB | 79.4 / 80.6 kg |
All four run on 220 V or 110 V, 50/60 Hz. Noise is as listed on the datasheet; ask us for the measurement distance when you compare it with another make. Our HC5501 / HC6801 to HC5504 / HC6804 series covers the same flows and tank sizes with lower motor power (0.48 kW to 2.44 kW) and about 1 dB less noise, and the HC1509M / HC1609M puts the 40 / 60 L/min pump on a compact 9 L tank. The whole range is in our oil-free air compressor collection.
A worked example
A four-chair surgery whose dental units each need 50 L/min, with up to three chairs drawing air at once, has a peak demand of 3 × 50 = 150 L/min. Add 20 to 30 % for dryer purge air, small leaks and a fifth chair later, and the target is about 180 to 195 L/min at working pressure. That points to the HC5803 (180 L/min at 7 bar), or the HC5804 (240 L/min) for more headroom. Our own chair ratings in the table assume typical general dentistry; when you know your chairs' consumption, size from that instead. Undersizing is the costlier mistake: the compressor runs almost all the time, gets hot and wears faster.
Does a dental compressor need a dryer?
Yes. Room air always contains water vapour, and compressing it concentrates that water. When the hot compressed air cools in the tank and the lines, the vapour condenses into liquid. Without a dryer, that water ends up in the tank, the pipework and eventually the handpieces and the syringe.
Dryness is measured as pressure dew point: the temperature at which water starts to condense at line pressure. The lower it is, the drier the air. It must sit comfortably below the coldest temperature the pipework will ever see, including lines that run through an unheated loft or plant room.
| Dryer type | How it works | Typical pressure dew point | Notes for dental use |
|---|---|---|---|
| Membrane | Hollow fibres let water vapour pass out through their walls; a small part of the dried air sweeps it away | Below 0 °C, depending on design and flow | No power or moving parts; suits small compressors; uses some air continuously |
| Desiccant (adsorption) | Air passes through a bed of drying material; the bed is regenerated, usually with part of the dried air | Down to around −20 °C or lower | The common choice built into dental compressors; desiccant needs replacing on schedule |
| Refrigerant | Cools the air to condense water, then drains it | About +3 °C | Fine for warm, indoor pipework; cannot dry below freezing |
Whichever type you choose, remember that membrane and desiccant dryers consume part of the air to purge or regenerate, so allow for it when sizing the compressor. For sizing a dryer in detail, see our air dryer and dew point guide.
What filtration does dental compressed air need?
Filtration works in stages, each catching what the last one cannot:
- Intake filter on the compressor, to keep dust and particles out of the cylinder.
- Dryer, often with a pre-filter to protect the desiccant or membrane.
- Fine particle filter after the dryer, to catch fine dust, including any desiccant dust.
- Filters at the dental unit, which many chair makers fit as standard. Some systems add a bacterial filter at the point of use.
Air purity for compressed air is usually written as ISO 8573-1 classes for particles, water and oil, for example [1:4:1]. The classes and what "Class 0" really means are explained in our ISO 8573-1 air purity classes guide. Separately, ISO 7494-2 deals with the air, water, suction and wastewater systems of dental units themselves; it is written mainly for dental unit makers, so the chair maker's installation manual is the practical reference for the air quality and pressure its unit expects.
How quiet should a dental compressor be?
Compressor noise is given in dB(A), and the figure only means something with a distance, usually 1 m. A compressor in the surgery itself, or behind a thin wall, should be as quiet as you can get; one in a plant room matters less. Two rules of thumb help when comparing datasheets: an increase of 3 dB(A) is a doubling of sound power, and about 10 dB(A) sounds roughly twice as loud.
The usual ways to bring noise down are:
- A sound-insulated cabinet, lined with absorbent material and fitted with a fan, because a closed box traps heat. Cabinets must never block the cooling air.
- Placement: a separate room, a cupboard with ventilation, or a basement, with the pipework doing the travelling.
- Vibration isolation: rubber feet or mounts and a flexible hose to the pipework, so the floor and walls do not carry the sound.
For more on enclosures and isolation, see reducing compressor noise with enclosures and vibration isolation.
Duty cycle and air receiver: why do they matter?
Oil-free piston compressors are designed to run, stop and cool. Duty cycle is the share of time the compressor runs. If the compressor is running nearly all day, it is too small for the surgery, or the pipework is leaking. Both lead to heat, worn piston rings and a short life. How to work out the load is covered in our air compressor duty cycle guide.
The air receiver (the tank) is the buffer between the compressor and the chairs. It covers short peaks, so the compressor does not start each time someone uses the syringe, and it gives the air time to cool, so condensate collects in the tank instead of the lines. A bigger tank does not create more air: it only stores what the pump makes. If average demand exceeds the pump's delivered flow, the tank will just empty more slowly. See receiver sizing for intermittent demand and tank versus tankless compressors.
How do you maintain a dental air compressor?
The manufacturer's schedule comes first. A typical routine looks like this:
| How often | Task |
|---|---|
| Daily | Drain condensate from the tank, unless an automatic drain is fitted; check that the pressure gauge reads normally at start-up |
| Weekly | Check that the automatic drain is working; listen for leaks and unusual noise |
| Monthly | Inspect and clean the intake filter; check the safety valve operates |
| As scheduled by the maker | Replace intake and fine filter elements, dryer cartridges or desiccant; inspect piston rings and valves |
| Periodically | Inspection of the pressure vessel and safety devices by a competent person |
In the UK, compressed air systems come under the Pressure Systems Safety Regulations 2000; ask your insurer or service engineer whether your installation needs a written scheme of examination. For a fuller routine, read our oil-free compressor maintenance guide.
What about the dental suction side?
Suction (high-volume evacuation and saliva ejectors) is a separate system: it runs on a vacuum pump or suction motor, not on the compressor, and it is sized in flow at a given vacuum rather than at a given pressure. Many surgeries buy both together, but they solve different problems. For how vacuum pumps work in general, see how do vacuum pumps work. For the dental side specifically, see oil-free vacuum pumps for dental suction and the most common dental vacuum pump setup mistake. Our oil-free vacuum pumps are listed separately.
Common questions
Can I use a workshop compressor in a dental surgery?
Not without changes. Most workshop compressors are oil-lubricated, have no dryer, and are loud. Even an oil-free workshop unit still needs a dryer and fine filtration before its air is fit for handpieces and the syringe.
How many chairs can one dental compressor supply?
As many as its delivered flow at working pressure covers, for the chairs that draw air at the same time, plus a margin. In our range that is from 1 chair (40 L/min at 7 bar) to 8 chairs (240 L/min at 7 bar) on our own ratings. Larger practices often use two compressors, which also keeps the surgery running if one is being serviced.
Where should a dental compressor be installed?
Somewhere cool, dry, ventilated and accessible for draining and servicing, ideally away from the treatment rooms. Hot rooms reduce output and make the dryer work harder.
How long does a dental compressor last?
It depends mainly on how hard it works. A correctly sized oil-free compressor that runs with rest periods, breathes clean air and has its filters and dryer serviced on time lasts far longer than an undersized one running continuously. Piston rings and valves are wear parts and can be replaced.
Browse our oil-free dental compressors, or send us the number of chairs, the flow and pressure your dental units need, your supply voltage and the expected duty cycle, and our engineers will suggest a model, including OEM versions for dental equipment makers.
