How to Select a 100 CFM Oil-Free Compressor for Metal Fab Sandblasting

In my 20-plus years as a Senior Applications Engineer, I have walked through countless metal fabrication facilities and witnessed the exact same bottleneck: the sandblasting bay. More often than not, the root cause of production delays, compromised surface profiles, and skyrocketing maintenance costs isn’t the abrasive media or the blast pot—it is an undersized, improperly specified air compressor.

For plant engineers and procurement managers, specifying a continuous duty sandblasting compressor is one of the most critical infrastructure decisions you will make. Sandblasting is a relentless, high-demand pneumatic application. Unlike intermittent tools, a blast nozzle demands a massive, unwavering volume of air. When you are looking to support a standard industrial blasting setup, targeting a 100 CFM (Cubic Feet per Minute) oil-free system is often the sweet spot for medium-to-heavy fabrication work.

In this comprehensive guide, we will break down the engineering physics and the economic realities of selecting the right compressor. We will explore airflow dynamics, the critical nature of duty cycles, the necessity of oil-free air, and how to evaluate long-term energy costs to ensure your facility remains both productive and profitable.

The Mathematics of the Blast: Sizing CFM Flow Rate and Nozzles

The fundamental rule of sandblasting is that the nozzle orifice dictates your air demand. The compressor’s job is simply to keep up with that demand while maintaining optimal pressure. If your compressor cannot sustain the required volume, the pressure drops, the abrasive velocity plummets, and your operational efficiency grinds to a halt.

To understand why a 100 CFM system is the industry standard for many fabrication shops, we have to look at the math. A standard #4 nozzle (which has a 1/4-inch orifice) requires approximately 81 CFM to maintain a constant 100 PSI at the nozzle. This 100 PSI threshold is critical; operating below this pressure drastically reduces the kinetic energy of your abrasive media, slowing down rust, scale, and old coating removal exponentially. For every 1 PSI drop below 100 PSI, you lose approximately 1.5% of your blasting productivity.

However, sizing a compressor perfectly to 81 CFM is an engineering mistake. As abrasive media flows through the ceramic or tungsten carbide nozzle, it gradually wears away the inner lining, widening the orifice. A 1/4-inch nozzle will eventually wear down closer to a 5/16-inch opening. As the orifice grows, so does the CFM demand.

Therefore, a strict engineering best practice is to build in a 10% to 15% safety buffer. Adding a 15% buffer to an 81 CFM base requirement brings your target CFM flow rate right up to roughly 94 CFM. By specifying a 100 CFM system, you guarantee that even as your nozzles wear and minor pressure drops occur across your hoses and fittings, you will maintain that critical 100 PSI at the blast surface.

Why a Continuous Duty Cycle is Non-Negotiable

When a fabricator pulls the trigger on a deadman valve, they aren’t just using air in short bursts—they are opening a massive leak in your pneumatic system for minutes or hours at a time. This requires a continuous duty cycle rating from your compressor.

The duty cycle is the percentage of time a compressor can safely operate under full load within a given time period without overheating. Standard commercial compressors often feature intermittent duty cycles (e.g., 50% or 70%). If you attempt to run a 50% duty cycle compressor on a sandblasting rig, the motor and pump will generate excessive heat, eventually tripping thermal overloads or causing catastrophic mechanical failure.

A true continuous duty sandblasting compressor is engineered to run at 100% capacity, 24 hours a day if necessary. These systems feature robust cooling mechanisms, oversized heat exchangers, and heavy-duty bearings designed to dissipate the immense thermal loads generated by non-stop air compression. For plant engineers, ensuring the nameplate explicitly states a 100% continuous duty rating is the first line of defense against costly downtime.

The Shift to Oil-Free Air: Meeting the ISO 8573-1 Class 0 Standard

In metal fabrication, the primary goal of sandblasting is surface preparation. You are creating an anchor profile so that industrial coatings, powder coats, or paints can adhere perfectly to the bare metal. This is where standard lubricated compressors introduce a fatal flaw: oil carryover.

Traditional oil-flooded compressors inherently pass trace amounts of lubricating oil downstream into the compressed air network, even when equipped with high-end coalescing filters. Over time, filter elements degrade, and vaporized oil can bypass the filtration system entirely, exiting through the blast nozzle and depositing a microscopic hydrocarbon film onto your freshly blasted metal.

When that part moves to the paint booth, this invisible oil layer becomes a disaster. It causes fisheyes, blistering, and catastrophic coating adhesion failures, leading to expensive rework and scrapped parts. To eliminate this risk entirely, plant engineers are increasingly specifying systems that meet the rigorous ISO 8573-1 Compressed Air Purity Classes, specifically targeting iso 8573-1 class 0. This stringent classification guarantees that the air is 100% free of liquid oil, oil aerosol, and oil vapor. By utilizing an intrinsically oil-free compressor, you remove the filtration guesswork, reduce ongoing maintenance costs on filter replacements, and safeguard your entire finishing process.

Evaluating Piston Compressor Alternatives

When evaluating the market for oil-free air, procurement managers often encounter traditional reciprocating systems. However, in heavy-duty sandblasting applications, you must actively explore piston compressor alternatives. Standard oil-free pistons often struggle with the thermal management required for a true 100% continuous duty cycle. The immense heat generated by constant operation leads to accelerated wear of Teflon rings, premature valve failure, and shortened maintenance intervals.

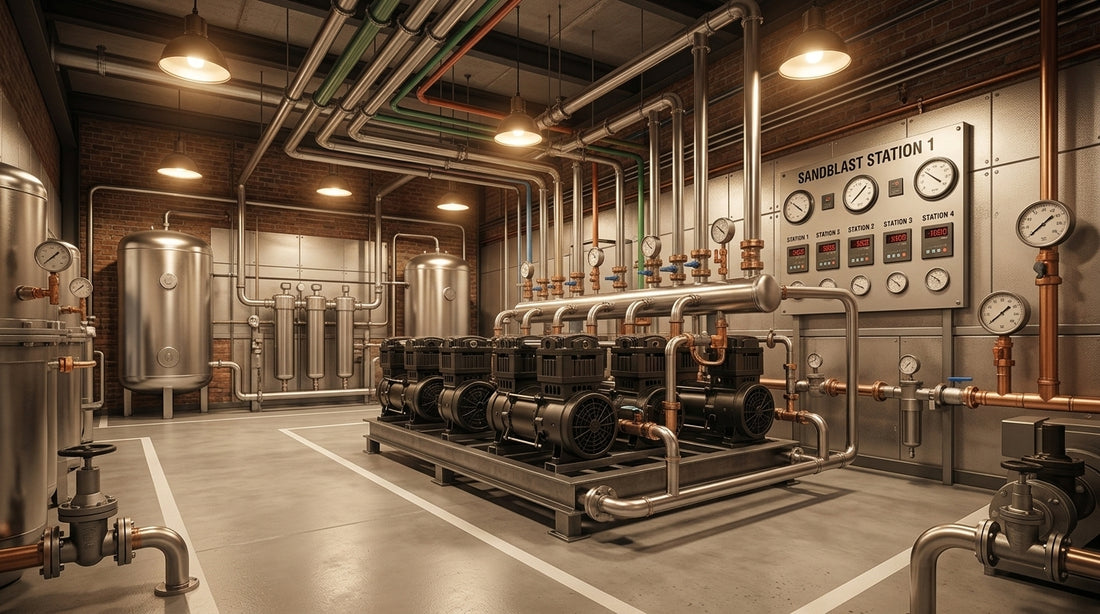

Instead, modern metal fabrication facilities are turning to advanced oilless technologies—such as specialized high-performance rocking piston designs or rotary scroll systems—which offer superior longevity and thermal stability. For instance, integrating robust, purpose-built core pumps like the HC1500 Oilless Air Pump into a multi-pump manifold system provides fabricators with highly scalable, continuous oil-free air. This modular approach not only delivers the necessary CFM flow rate but also offers built-in redundancy, ensuring that a single pump maintenance cycle does not shut down your entire blasting bay. I highly recommend that your engineering team view full technical specifications to see how modern oilless pump engineering handles intense thermal and mechanical loads without faltering.

The Economics of Air: kW Energy Consumption and Efficiency

Next, we must address the total cost of ownership (TCO). A common pitfall in procurement is focusing solely on the initial capital expenditure. In reality, the purchase price of an industrial compressor typically represents only 10% to 20% of its lifetime cost. The vast majority of the financial burden is tied directly to electricity.

When selecting a 100 CFM continuous duty sandblasting compressor, carefully analyzing the specific kW energy consumption is paramount. Energy efficiency in compressed air systems is not just a corporate sustainability buzzword; it directly impacts your facility’s bottom line. A compressor that requires more kilowatts to produce the same 100 CFM will cost you tens of thousands of dollars in wasted electricity over its operational lifespan.

For an objective, third-party baseline on how different models perform, procurement managers should consistently review CAGI Compressed Air Data Sheets. These standardized sheets allow you to compare the specific power (expressed as kW/100 CFM) of various units on an apples-to-apples basis. Furthermore, to maximize your investment, I advise plant engineers to participate in educational programs like the U.S. DOE Compressed Air Challenge. This initiative equips technical teams with the strategies needed to optimize system architecture, identify hidden pressure drops, and significantly reduce operational overhead.

The Crucial Role of Air Treatment and Infrastructure

Beyond oil-free purity and energy efficiency, we cannot ignore moisture control and piping infrastructure. Compressing 100 CFM of ambient air at 100 PSI generates a massive amount of condensate. If this water makes its way into your blast pot, it will cause the abrasive media to clump, clogging the metering valve, accelerating wear on your deadman controls, and halting production.

Your oil-free compressor must be paired with an appropriately sized air-cooled or water-cooled aftercooler and an industrial air dryer. For standard heavy-duty blasting, a refrigerated air dryer is usually sufficient to knock the dew point down to 38°F (3°C). However, if you are blasting outdoors in freezing conditions or preparing surfaces for highly sensitive specialty coatings, a desiccant dryer may be required to achieve a sub-zero dew point. Delivering dry, Class 0 oil-free air ensures that your abrasive flows smoothly and your bare metal surface remains completely free of flash rust.

Furthermore, maximizing energy efficiency requires looking beyond the compressor room. Pushing 100 CFM through undersized hoses or restrictive fittings creates massive friction loss. If you lose 15 PSI across 100 feet of narrow blast hose, your compressor has to work significantly harder—driving up your kW energy consumption—just to maintain that critical 100 PSI at the nozzle. Always use properly sized bull hose (typically 1.25-inch to 1.5-inch inner diameter for a 100 CFM setup) and utilize wide-throat, internally expanded fittings to minimize pressure drop.

Final Thoughts for Facility Leaders

Specifying the right compressor for your sandblasting operations is a delicate balancing act of fluid dynamics, air purity standards, and long-term economics. Undersizing the unit leads to a sluggish, inefficient blast, while ignoring air purity leads to disastrous coating failures.

By anchoring your specification around a 100 CFM flow rate, demanding an unwavering continuous duty cycle, and utilizing advanced piston compressor alternatives to achieve true oil-free air, you set your fabrication shop up for long-term success. Prioritize energy efficiency, scrutinize the kW energy consumption on your data sheets, and invest in the reliable pneumatic infrastructure that keeps your blasters working efficiently, your painters painting flawlessly, and your production lines moving forward without interruption.
