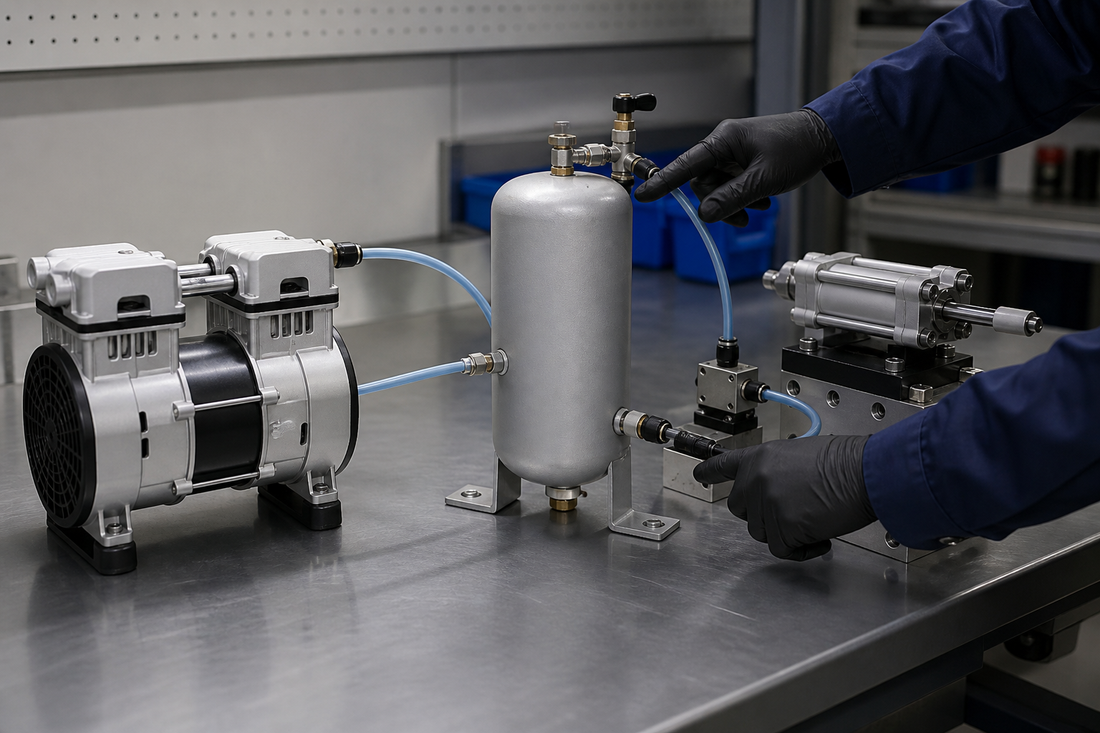

Compressed Air Receiver Sizing for Intermittent OEM Demand

Compressed air receiver sizing for intermittent OEM demand starts with the air volume required during each event, the allowable pressure drop, refill time, controls, and installed losses. A receiver cannot be selected from pump title data alone; buyers should use documented assumptions, exact-model curves, permissible cycling limits, vessel documentation, and validation in the finished equipment.

Quick Facts

• Best use case: An intermittent air demand receiver helps cover short demand peaks when the compressor or pump is not intended to supply the full instantaneous flow directly.
• Core sizing inputs: Required air per event, starting pressure, minimum usable pressure, refill window, ambient conditions, tubing losses, valve losses, and allowable cycling.
• Catalog context: HCEM's current Shopify catalog includes AC AIR COMPRESSOR PUMP, DC AIR COMPRESSOR PUMP, and OIL FREE PORTABLE AIR COMPRESSOR collections, plus HC680 Oilless Air Pump and HC580 Oilless Air Pump product pages.
• Evidence limit: Product and page titles prove that listings exist. They do not prove flow at pressure, receiver volume, pressure limits, cycling behavior, duty rating, compliance, service life, MOQ, lead time, warranty, or suitability for a buyer's equipment.
• Procurement rule: Treat every worksheet result as a starting point, then request exact-model curves, controls information, vessel documentation, and installed-system validation.

Define the Intermittent Demand Case Before Sizing

Intermittent OEM demand is not the same as steady plant air demand. A pneumatic clamp, sampling device, door actuator, purge pulse, small blow-off operation, or test fixture may need a short burst of air followed by a pause. The receiver's job is to store enough usable air so the point of use sees acceptable pressure during the burst while the compressor refills the storage volume within a practical recovery window.

For B2B buyers, the important question is not whether a pump listing exists. The question is whether the selected pump, receiver, controls, tubing, valves, fittings, and duty pattern can work together inside the buyer's equipment. An OEM air receiver sizing worksheet should therefore begin with the machine sequence, not with a desired tank size.

List each demand event in plain engineering terms: what moves, how often it moves, how much air it consumes, what pressure the actuator or nozzle requires, and how much time is available before the next event. If pneumatic cylinders are involved, HCEM's Pneumatic Cylinder Air Consumption Calculator can help estimate consumption from cylinder dimensions and cycle assumptions. Calculator outputs still remain assumptions until checked against the actual components and operating sequence.

Procurement teams should also separate normal operation from edge cases. Startup purge, end-of-line test mode, maintenance jog mode, low-temperature operation, clogged filters, undersized tubing, and simultaneous actuator events can change receiver behavior. If these conditions are plausible in the installed machine, they should be represented in the worksheet or explicitly excluded with a documented reason.

Use a Transparent Receiver Sizing Worksheet

A practical worksheet converts event demand into receiver volume using stated assumptions. For teaching purposes, the following example uses hypothetical assumptions only. The numbers are not product claims for any HCEM pump, receiver, or installed system.

Simple idealized sizing relationship: usable stored air is related to receiver volume and the permitted pressure band. In a simplified form, receiver volume can be estimated from the air required during the event and the difference between starting and minimum acceptable absolute pressure. Engineering teams should use consistent units, convert gauge pressure to absolute pressure where required, and apply a margin only after the base case is understood.

One worksheet method is to calculate the free air consumed during the event, then estimate how much receiver volume is needed across the permitted pressure drop. The permitted pressure drop should be based on the point-of-use requirement after installed losses, not only on the pressure switch setting. For example, if the point of use needs the hypothetical 5 bar gauge and the installed loss is the hypothetical 0.5 bar, the receiver-side minimum may need to be higher than 5 bar gauge.

Actionable worksheet steps:

1. Define the demand event in free-air volume or calculate it from component data and cycle count.
2. Set the minimum acceptable pressure at the actual point of use.
3. Estimate tubing, valve, fitting, regulator, filter, and check-valve losses during peak flow.
4. Convert gauge pressure assumptions to absolute pressure if the selected formula requires it.
5. Calculate the receiver volume needed for the event without refill, then compare with refill during the event if controls allow it.
6. Check whether the compressor can restore the receiver within the available recovery time.
7. Review permissible starts, stops, duty behavior, heat, noise, vibration, and control logic for the exact model and configuration.
8. Validate the result in the installed machine over normal, low-line, high-temperature, and worst-case sequence conditions.

The worksheet should remain traceable. A buyer should be able to see which inputs came from component data, which came from a supplier curve, which came from a lab measurement, and which are conservative assumptions. That traceability is often more useful than a single tank-volume answer because it shows where risk remains.

Review Pressure Limits, Controls, and Installed Losses

Compact compressed air storage is attractive in OEM equipment because cabinet volume, weight, acoustic treatment, and service access may be constrained. Compact storage also gives the worksheet less room for error. A small change in allowable pressure drop, tubing length, event duration, or refill time can move the design from acceptable to unstable.

Pressure settings should be reviewed as a system. The receiver, compressor outlet, check valve, relief device, regulator, tubing, fittings, valve manifold, and actuator may not share the same pressure rating or pressure behavior. Never infer the allowable pressure of a complete assembly from a product title or collection title. Request current documentation for the exact model and configuration, and verify which component or assembly the document actually covers.

Controls matter as much as volume. A receiver that looks adequate on paper may cause poor operation if the pressure switch band is narrow, if the compressor is started too often, if the pump cannot restart against the expected pressure, or if the control algorithm does not allow enough recovery time. Exact-model flow curves, pressure curves, thermal behavior, and permissible cycling information should be reviewed before the design is released for procurement.

Installed losses deserve special attention in small OEM packages. Short tubing can still create meaningful loss when fittings are restrictive, flow is pulsed, filters load over time, or valves are selected for package size instead of flow. Regulators and check valves can also introduce pressure drop that is easy to miss in an early spreadsheet. For intermittent demand, the peak flow during the event is more important than the average flow over a minute.

Oil-free air and vacuum pump buyers may review HCEM's listed categories, including the AC air compressor pump collection and DC air compressor pump collection, to identify relevant listing areas for discussion. A product page such as HC680 Oilless Air Pump confirms that a listing exists, but it should not be treated as proof of suitability for an intermittent receiver application without exact-model evidence and installed testing.

Compressed Air Receiver Sizing and RFQ Checklist

A disciplined RFQ should ask suppliers for the evidence needed to confirm the worksheet, not only for a quote. This is especially important when the receiver is part of an OEM product that may ship into different markets, operate at different duty patterns, or be serviced by third parties.

• Demand sequence: Provide each air event, free-air use, duration, frequency, simultaneous events, and recovery window.
• Pressure band: State the required point-of-use pressure, receiver start pressure, receiver stop or restart pressure, and expected pressure loss between receiver and use point.
• Exact-model curves: Request flow versus pressure information for the exact pump model and configuration under relevant electrical and ambient assumptions.
• Cycling and controls: Request permissible start-stop behavior, duty-related limits, restart conditions, control recommendations, and any required protection devices for the exact configuration.
• Receiver documentation: Request current vessel documentation for the exact receiver, including rated pressure, scope, issuer or lab where applicable, issue date, and covered configuration.
• Compliance evidence: Do not accept broad compliance statements. Verify applicable market, document scope, issuer or lab, issue date, and exact configuration. Compliance should never be assumed from a catalog title.
• Installed losses: Include tubing, fittings, filters, regulators, check valves, mufflers, manifolds, and expected contamination or filter-loading conditions.
• Validation plan: Define how the final machine will be tested across normal operation, worst-case sequence, low and high supply conditions, temperature range, and service conditions.

The final sizing decision should be made with engineering, purchasing, quality, and service requirements visible at the same time. A receiver that solves pressure sag but creates unacceptable cycling, heat, package volume, service access, or documentation gaps is not a complete purchasing answer. For an RFQ discussion based on your worksheet and exact demand sequence, contact HCEM through the Contact HCEM page.

FAQs

Can receiver size be selected from compressor flow alone?

No. Compressor flow is only one input. Receiver sizing also depends on event air use, allowable pressure drop, recovery time, controls, installed losses, and permissible cycling for the exact model and configuration.

What makes intermittent air demand different from continuous demand?

Intermittent demand is driven by short events and recovery windows. The peak event may require more instantaneous air than the compressor supplies directly, so the receiver covers the event while the compressor restores pressure between events.

Is a larger receiver always better for an OEM machine?

Not automatically. More storage can reduce pressure sag and cycling frequency, but it can also add package volume, weight, fill time, cost, and documentation requirements. The correct volume is tied to the machine sequence and validation results.

Can compact compressed air storage be used in oil-free OEM equipment?

It can be considered when the worksheet, exact-model evidence, controls, receiver documentation, and installed validation support the design. Oil-free pump listing titles alone do not prove suitability for a specific OEM receiver application.

What evidence should procurement request before approval?

Request exact-model performance curves, permissible cycling and control information, receiver documentation, pressure ratings for the relevant configuration, compliance evidence for the applicable market, and installed-system test results from the buyer's equipment.
