Air Compressor for Laser Cutting: CFM Sizing Spec Guide
Every facility manager operating high-wattage fiber lasers eventually encounters the same operational bottleneck: inconsistent assist gas pressure resulting in poor edge quality and excessive dross. When relying on standard shop air for assist gas, a minor pressure drop at the cutting nozzle translates directly into rejected parts and wasted material. Specifying the correct air compressor for laser cutting is critical to eliminating these thermal inconsistencies. The engineering decision extends far beyond simply matching the manufacturer's maximum flow rate; it requires a rigorous analysis of transient demand, piping friction losses, and specific energy consumption. As a baseline for specialized applications requiring stringent purity and consistent volumetric flow, engineers often look to systems like the HC1500 Oilless Air Pump to maintain process stability. This guide breaks down the technical specifications necessary to size and select the optimal pneumatic generation system for your fabrication floor.

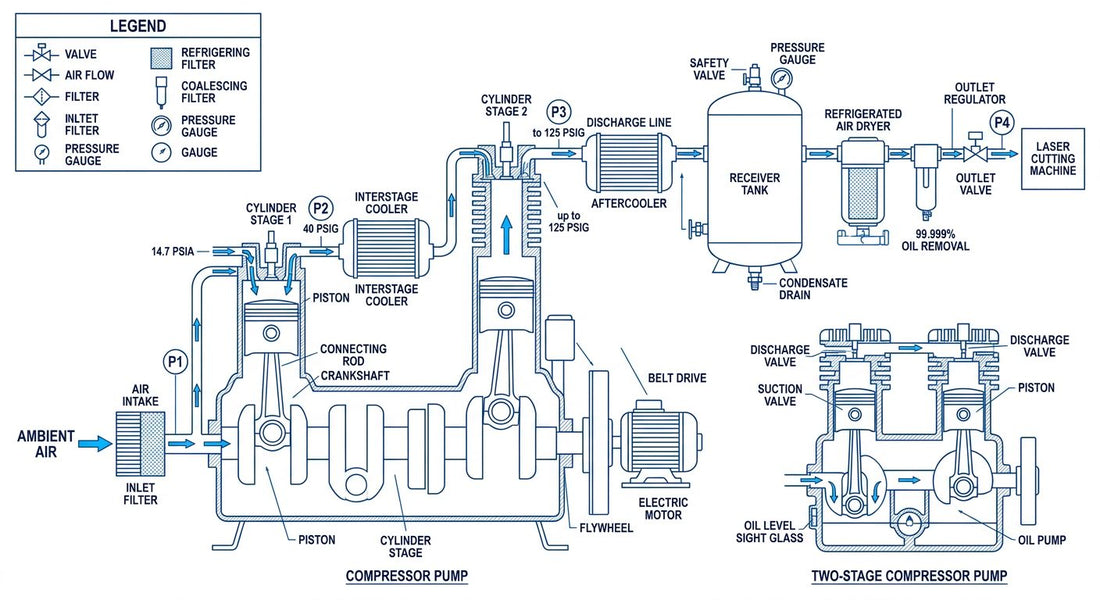

Sizing an Air Compressor for Laser Cutting: CFM vs. FAD
The relationship between pressure and volume is the foundation of pneumatic system design, governed fundamentally by Boyle's Law ($P_1V_1 = P_2V_2$). When specifying an air compressor for laser cutting, application engineers must distinguish between theoretical displaced volume and actual Free Air Delivery (FAD). The Required CFM (cubic feet per minute) stated by the laser OEM represents the actual volume of air consumed at the cutting nozzle under specific environmental conditions, not the theoretical output of the compressor block.
NOTE: Never size a generation system based solely on the laser's peak consumption rate. Always calculate the total system demand, incorporating a 15% to 20% safety factor to account for future volumetric degradation, piping leaks, and accessory consumption (e.g., pneumatic loading tables and automation fixtures).
To calculate the actual flow rate required to fill a receiver tank and maintain system pressure during rapid demand spikes, engineers utilize the pump-up time formula: $t = \frac{V(P_2 - P_1)}{P_{atm} \times FAD}$ Where $t$ is time in minutes, $V$ is receiver volume, $P_1$ and $P_2$ are initial and final pressures, and $P_{atm}$ is atmospheric pressure.
For precise benchmarking of equipment performance, refer to the CAGI Compressed Air Data Sheets, which provide verified third-party testing metrics for volumetric efficiency and specific power.
Understanding Operating PSI and Required CFM in Laser Systems
Fiber lasers typically demand an Operating PSI between 150 psi (10.3 bar) and 250 psi (17.2 bar) when utilizing compressed air as an assist gas. Cutting thicker materials like mild steel or aluminum demands higher kinetic energy from the assist gas to evacuate the molten pool effectively. Therefore, the air compressor for laser cutting must sustain this Operating PSI at the nozzle, not just at the discharge valve. Friction loss through desiccant dryers, particulate filters, and distribution piping means the compressor discharge pressure must often be 15 to 25 psi higher than the tool's minimum requirement. If the Required CFM is 45 at 200 psi, your generation system must comfortably exceed these metrics at a 100% continuous Duty Cycle.
Air Quality Specs: ISO 8573-1 Class Standards
Introducing contaminated compressed air into a laser cutting head is mechanically catastrophic. Moisture and aerosolized oil will immediately foul the protective windows and internal optics. This contamination causes beam deflection, severe thermal lensing, and eventual catastrophic failure of the optical carriage. Consequently, meeting the appropriate ISO 8573-1 Class rating is just as vital as hitting the pressure and flow specifications.
For laser cutting assist gas, the industry standard mandates an ISO 8573-1 Class 1.2.1 or strictly Class 1.4.1 purity level. This specifies strict limits on solid particulates, water vapor (requiring a desiccant dryer to achieve a -40°C pressure dew point), and total oil concentration (≤ 0.01 mg/m³).
When selecting an air compressor for laser cutting, the primary architectural choice is between oil-free and oil-injected technologies.
| Specification Category | Oil-Free Compressor | Oil-Injected Rotary Screw |
|---|---|---|
| ISO 8573-1 Class (Oil) | Class 0 (Inherent) | Class 1 (Requires multi-stage filtration) |
| Maintenance Complexity | Lower (No oil separators/filters) | Higher (Frequent filter and oil changes) |
| Capital Expenditure | Higher initial cost | Lower initial cost |
| Risk of Optics Fouling | Zero | Moderate to High (if filtration fails) |
| Typical dB(A) Rating | 65 - 75 dB(A) | 68 - 78 dB(A) |
While heavily filtered oil-injected systems are common, specifying a truly oil-free air compressor for laser cutting eliminates the risk of hydrocarbon carryover entirely, mathematically safeguarding your optical investment from aerosolized lubricants.
Energy Efficiency and System kW Considerations
Compressed air is historically one of the most expensive utilities in any fabrication facility. The System kW (kilowatt) rating dictates your baseline electrical operating costs. Engineers evaluate compressor efficiency using the specific power metric: kW/100 cfm. A lower number indicates a more thermodynamically efficient machine.
Because laser cutting is rarely a continuous steady-state process (due to loading, unloading, and piercing pauses), the demand profile fluctuates continuously. A fixed-speed compressor operating at partial load wastes massive amounts of energy venting, blowing off, or idling. Here, Variable Speed Drive (VSD) technology is highly recommended. A VSD air compressor for laser cutting adjusts its motor speed dynamically to match real-time demand, significantly reducing System kW draw during non-cutting phases.
NOTE: Pay close attention to the machine's Duty Cycle. Standard reciprocating compressors often have a 60% to 75% Duty Cycle, meaning they must rest to dissipate heat. Laser cutting requires a 100% continuous Duty Cycle, making rotary screw or industrial continuous-duty scroll compressors the superior engineering choice.
For technical clarification on specific power metrics and drive topologies, consult the CAGI Glossary of Compressed Air Terms.
Mini Case Study: Optimizing an Air Compressor for Laser Cutting
Problem: A high-volume metal fabricator operating a 6kW fiber laser experienced severe striations and dross on 3/16-inch aluminum parts. The machine was repeatedly faulting due to low assist gas pressure. Their existing 15 HP reciprocating compressor was rated for 175 psi, but the tool required a sustained Operating PSI of 160 at the nozzle. During long continuous nesting runs, the pressure would dynamically drop to 135 psi.
Technical Solution: A pneumatic energy audit revealed the reciprocating unit was exceeding its maximum Duty Cycle and experiencing thermal fade. Additionally, a restrictive coalescing filter caused a 15 psi pressure drop across the air treatment skid. The facility replaced the unit with a 20 HP VSD rotary screw air compressor for laser cutting, paired with a 400-gallon high-pressure receiver tank and a high-flow heatless desiccant dryer. They also upsized the distribution piping from 1/2-inch to 3/4-inch smooth-bore aluminum tubing to minimize friction losses.
Outcome: The new pneumatic system delivered a continuous 65 Required CFM at a 190 psi discharge, ensuring a highly stable 170 psi at the nozzle. The VSD technology reduced their specific energy consumption from 22.4 kW/100 cfm to 18.5 kW/100 cfm. Reject rates dropped by 94%, and edge quality rivaled that of bulk nitrogen assist. For further reading on process gas parameters, refer to the AWS Laser Cutting Assist Gas Technical Reference.
Sourcing Your Next Generation System
Proper sizing of an air compressor for laser cutting requires balancing thermodynamic principles with real-world production demands. By accurately mapping your Required CFM against your target Operating PSI and selecting a unit capable of a true 100% Duty Cycle, you ensure maximum uptime and precise cut quality. Furthermore, adhering strictly to ISO 8573-1 Class standards protects your sensitive laser optics from catastrophic moisture and hydrocarbon contamination.
Whether you are retrofitting an existing fabrication shop or specifying utility requirements for a new automated laser cell, focusing on System kW efficiency will yield immediate and measurable operational savings. For facilities requiring pristine, high-pressure air generation without the liability of oil carryover, take the time to explore technical specifications of specialized oil-free equipment to perfectly match your specific production parameters.
Frequently Asked Questions (FAQ)
What is the optimal Operating PSI for an air compressor for laser cutting?
The optimal Operating PSI depends entirely on the material type, material thickness, and the laser's wattage output. Generally, cutting thin gauge sheet metal requires pressures between 115 psi (8 bar) and 150 psi (10.3 bar). However, for thicker materials or high-speed fiber lasers, the system often demands 200 psi (13.8 bar) to 250 psi (17.2 bar) to effectively clear molten material from the kerf. When specifying an air compressor for laser cutting, you must engineer the system to generate at least 20 to 30 psi above the tool's maximum requirement to compensate for pressure drops across dryers, filters, and facility piping.
