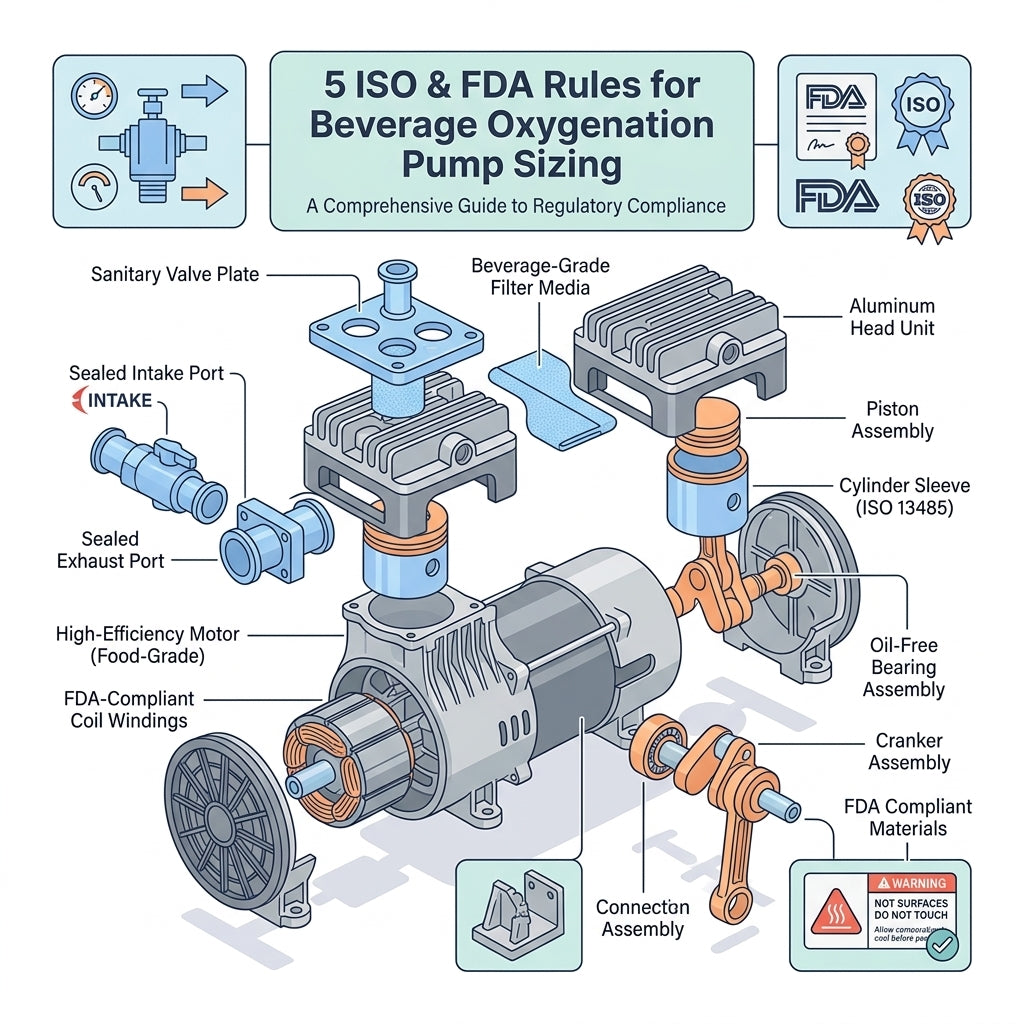

5 ISO & FDA Rules for Sizing an FDA Compliant Oxygenation Pump: Compliance Requirements

Specifying an FDA compliant oxygenation pump requires strict adherence to sanitary mandates and compressed air purity standards. If your facility fails an SQF or FDA audit due to contaminated aeration lines, the financial penalties are severe. Product recalls in the beverage and food processing sectors average $10 million in direct costs, while unmitigated contamination introduces immense legal liability. An undersized or improperly filtered aeration system creates condensation and oil carryover, directly promoting microbial growth in process piping.

When evaluating equipment for critical processes like yeast propagation or wort aeration, plant engineers must verify the unit meets FDA Title 21 material constraints. For high-purity applications, integratinga certified unit like the HC580 Medical Oxygenation Pump is often the most direct path to compliance.

Regulatory Warning: A widespread misunderstanding that causes compliance failures is the assumption that an "oil-free compressor" automatically guarantees ISO 8573-1 Class 1 or Class 0 air. ISO 8573-1 Class 1 refers to oil aerosol and vapor limits, but particulates and water are separate classes. An oil-free compressor pulling ambient air from a humid, dusty plant floor will still fail a food safety audit if the downstream desiccant dryer and sterile particulate filters are undersized or unmaintained.

Step-by-Step Compliance Checklist

To ensure your facility avoids costly audit failures and maintains the highest standards of product safety, plant managers and sanitation engineers must approach compressed air systems with the same rigor as direct ingredient handling. The following checklist provides a foundational roadmap for assessing your current aeration infrastructure against modern regulatory expectations.

Requirement	Standard Reference	Your Current Status	Action Needed
Material Test Reports (MTRs)	FDA Title 21 CFR 177.2600	[ ] Pending Review	Verify all wetted elastomers are GRAS (Generally Recognized As Safe) and certified.
Oil and Particulate Filtration	ISO 8573-1 Class 0	[ ] Incomplete	Install sterile depth filters rated for 0.01 µm upstream of the injection point to capture any remaining sub-micron anomalies.
System Pressure Rating	ASME Section VIII / OSHA 1910.169	[ ] Verified	Ensure air receiver tanks undergo ultrasonic thickness testing every 3 years to prevent catastrophic failure.
Noise Exposure Limits	OSHA 29 CFR 1910.95	[ ] Exceeds 85 dB(A)	Specify an acoustic enclosure or install vibration isolators to reduce operational noise below the continuous exposure threshold.
Energy Efficiency & Performance	CAGI / ENERGY STAR	[ ] Under Review	Consult the CAGI Compressed Air Data Sheets to compare specific power (kW/100 cfm) and ensure operational overhead is minimized.

Calculations and flow dynamics are critical when sizing your system. A common oversight is ignoring the gas density changes under pressure, which drastically alters the actual delivered CFM (Cubic Feet per Minute) at the point of injection. Engineers must account for pressure drops across the filtration cascade, ensuring the pump is sized to deliver the required mass flow rate at the sparger, not just at the discharge valve.

To fully grasp the regulatory landscape, we must outline the specific compliance frameworks that dictate equipment selection. Ignorance of these standards is never an acceptable defense during anFDA or SQF audit.

Which Standards Apply to You?

Navigating industrial regulations requires mapping your specific application to the correct governing body. Different industries have uniquely stringent requirements for how gases interface with consumable products.

Industry / Application	Applicable Standard	Key Requirement
Beverage Carbonation & Aeration	FDA Title 21 CFR 177	Food-grade elastomers, non-toxic wetted paths, zero shedding materials.
Biopharmaceutical Fermentation	ISO 8573-1 Class 0	Zero measurable oil aerosol, vapor, or liquid; sterile biological filtration.
General Food Packaging	SQF Code / BRCGS	Requires HACCP risk assessments for all compressed air contacting food surfaces.
Wastewater Treatment (Food Plant)	EPA / Local Municipal Codes	Sufficient dissolved oxygen transfer efficiency, robust continuous operation.

Deep Dive: FDA Title 21 and Material Compliance

When selecting an FDA compliant oxygenation pump, the internal construction of the pump is just as critical as the air it pushes. FDA Title 21 CFR 177.2600 specifically governs rubber articles intended for repeated use in producing, manufacturing, packing, processing, preparing, treating, packaging, transporting, or holding food. This means that every diaphragm, O-ring, gasket, and valve flapper inside the pump that comes into contact with the air stream must be certified as GRAS (Generally Recognized As Safe).

If a non-compliant elastomer begins to degrade due to friction, heat, or ozone exposure, it can shed microscopic particulate matter directly into the aeration line. In sensitive applications like yeast propagation, these synthetic hydrocarbons can inhibit cellular growth, taint flavor profiles, and result in catastrophic batch loss. Always demand Material Test Reports (MTRs) from your equipment manufacturer to keep on file for your next Hazard Analysis and Critical Control Point (HACCP) review.

Decoding ISO 8573-1 Class 0 and Food-Grade Air

The term "food-grade air" is frequently thrown around in marketing literature, but from an engineering standpoint, it must be quantified. The international standard for compressed air quality dictates exactly what constitutes clean air. To truly understand these metrics, facility managers should reference the official ISO 8573-1 Compressed Air Purity Classes.

ISO 8573-1 measures three specific contaminants: solid particulates, water (humidity/liquid), and oil (aerosol/vapor). A rating of [1:2:1] means Class 1 for particulates, Class 2 for water, and Class 1 for oil. However, for critical food and beverage aeration where the air is directly injected into the consumable product, ISO 8573-1 Class 0 for oil is the absolute gold standard. Class 0 does not mean zero contamination absolute; rather, it means the contamination level is lower than the strictest Class 1 limits (which is <0.01 mg/m³ of oil) and must be mutually agreed upon by the manufacturer and the user. Achieving this level of food-grade air requires a combination of oil-free pump technology, refrigerated or desiccant air dryers, and a cascade of coalescing and sterile depth filters right at the point of use.

Energy Efficiency and the VFD Air Compressor

Aeration is traditionally one of the most energy-intensive processes in any manufacturing facility. Historically, plants utilized fixed-speed compressors that operated on a simple on/off duty cycle or used blow-off valves to regulate pressure, wasting immense amounts of electricity. Today, integrating a VFD air compressor (Variable Frequency Drive) into your oxygenation strategy is a crucial step for modern plant optimization.

A VFD air compressor dynamically adjusts the motor's RPM to match the real-time pneumatic demand of the facility. If your fermentation tanks only require 40% of their maximum CFM capacity during a specific phase of cellular respiration, the VFD slows the pump down, slashing energy consumption proportionally. To explore the financial impacts of variable speed technology and system optimization, engineers should review the resources provided by the U.S. DOE Compressed Air Challenge.

Pros and Cons of VFD Oxygenation Pumps

Before retrofitting your facility, it is important to weigh the advantages and limitations of VFD technology compared to traditional fixed-speed units.

• Pros:
  • Energy Savings: Eliminates the massive energy spikes associated with motor start-ups and reduces overall kilowatt-hour consumption.
  • Precise CFM Control: Delivers exact volumetric flow rates, preventing over-aeration or excessive foaming in bioreactors.
  • Lower Operating dB(A): Because the motor frequently runs at lower RPMs, the ambient noise level (dB(A)) is significantly reduced, improving worker safety and OSHA compliance.
  • Increased Equipment Lifespan: Soft-starting capabilities reduce mechanical stress on bearings, belts, and diaphragms.
• Cons:
  • Higher Initial Capital Cost: VFD controllers and inverter-duty motors require a larger upfront investment.
  • Harmonic Distortion: Improperly installed VFDs can introduce electrical noise into the plant's power grid, requiring line reactors or harmonic filters.
  • Complexity: Requires trained maintenance personnel who understand both pneumatics and advanced motor control electronics.

Application Spotlight: Wort Aeration in Commercial Brewing

One of the most critical applications for an FDA compliant oxygenation pump is wort aeration in the brewing industry. After the boiling process, the wort is completely stripped of dissolved oxygen. However, brewer's yeast (Saccharomyces cerevisiae) requires an initial surge of oxygen to synthesize sterols and unsaturated fatty acids, which are vital for healthy cell wall construction and rapid reproduction.

Injecting ambient air into cooled wort is a massive contamination risk. The sugary, nutrient-rich liquid is the perfect breeding ground for wild yeast and spoilage bacteria like Lactobacillus. Utilizing a fully compliant, sanitary oxygenation pump ensures that the air passing through the sintered stainless steel sparging stone is biologically sterile and free of lubricating oils.

When calculating the required CFM for wort aeration, brewers must account for the hydrostatic head pressure of the fermentation vessel. A tall cylindroconical tank exerts significant backpressure at the bottom injection port. If the pump is undersized, the required CFM will drop drastically as pressure increases, leading to sluggish fermentations, off-flavors (like diacetyl), and poor attenuation. An accurately sized pump, coupled with a precision rotameter, ensures the exact milligrams per liter (mg/L) of dissolved oxygen is achieved consistently, batch after batch.

Comparing Aeration Technologies: Fixed Speed vs. VFD

To assist plant engineers in specifying the correct equipment, the following comparison table contrasts standard aeration compressors with advanced VFD configurations specifically tailored for food and beverage applications.

Feature / Metric	Traditional Fixed Speed Pump	Advanced VFD Oxygenation Pump
Flow Control (CFM)	Mechanically throttled (wasteful)	Electronically matched to demand
Energy Efficiency	Low (runs 100% when on)	High (reduces speed during low demand)
Acoustic Profile (dB(A))	Consistently loud (often >85 dB(A))	Variable, generally much quieter at part-load
System Wear & Tear	High mechanical stress from hard starts	Low stress due to soft-start/stop cycling
Ideal Application	Constant, unchanging base-load demands	Fluctuating demands like batch fermentation

Comprehensive Aeration and Compliance FAQ

Implementing sanitary pneumatic systems generates numerous technical questions. Below is a thorough FAQ addressing the most pressing concerns for plant engineers and QA managers.

1. What exactly defines an FDA compliant oxygenation pump?

An FDA compliant oxygenation pump must meet several intersecting criteria. First, all wetted materials (any part of the pump that touches the air stream) must comply with FDA Title 21 CFR 177 standards for food contact. Second, it must not introduce any hazardous contaminants into the air stream, meaning it typically utilizes an oil-free compression mechanism. Finally, it must be capable of integrating with sanitary process piping (such as Tri-Clamp fittings) and downstream sterile filtration to achieve the required food-grade air purity.

2. How do I calculate the correct CFM for my specific vessel?

Sizing the CFM (Cubic Feet per Minute) requires understanding your target dissolved oxygen level, the volume of the liquid,the hydrostatic head pressure of the tank, and the oxygen transfer efficiency (OTE) of your sparging stone. For example, if you need 10 mg/L of dissolved oxygen in a 100-barrel fermenter, you must calculate the total mass of oxygen required, then divide by the OTE percentage (often only 10-20% for ambient air). Finally, you must convert this mass requirement back into CFM, factoring in the ambient temperature and the discharge pressure required to overcome the liquid's depth. Using a VFD air compressor allows you to fine-tune this CFM precisely during different phases of the biological process without over-pressurizing the system.

3. Can I use a standard oil-lubricated compressor if I use enough filters?

No, this is a dangerous and often non-compliant practice for direct food contact. While a robust cascade of coalescing filters and activated carbon towers can theoretically reduce oil vapor to ISO 8573-1 Class 1 levels, the risk of a filter failure is too high. If a filter ruptures, catastrophic oil carryover will contaminate the entire batch, leading to millions of dollars in lost product and severe FDA penalties. For direct aeration applications, an inherently oil-free FDA compliant oxygenation pump is the only fail-safe method to guarantee ISO 8573-1 Class 0 food-grade air.

4. How does noise level (dB(A)) impact equipment placement?

The acoustic footprint of your equipment dictates where it can be legally and safely installed. OSHA regulations (29 CFR 1910.95) require hearing conservation programs if workers are exposed to an 8-hour time-weighted average of 85 dB(A) or higher. Traditional piston compressors often exceed 90 dB(A), necessitating remote installation in dedicated, sound-dampened utility rooms, which subsequently increases piping costs, leak potential, and pressure drops. A modern, acoustically insulated pump operating below 75 dB(A) can be installed directly on the production floor closer to the point of use, improving system efficiency and simplifying maintenance access.

5. How frequently should sterile air filters be replaced in an aeration system?

Sterile depth filters, typically rated at 0.01 µm or 0.2 µm, should be replaced based on pressure drop or a strict calendar schedule, whichever comes first. Most sanitary equipment manufacturers recommend replacing the sterile element every 6 to 12 months, or after a specific number of sterilization-in-place (SIP) cycles. Monitoring the differential pressure across the filter housing is critical; an increase in pressure drop not only wastes energy by forcing the pump to work harder, but also indicates that the filter is nearing its holding capacity and could compromise your biological safety.

Engineering Insight: Future-Proofing Your Facility

The financial implications of an undersized, non-compliant, or inefficient aeration system extend far beyond the initial purchase order. Wasted electricity, frequent maintenance downtime, and the looming threat of an FDA or SQF audit failure can cripple a processing facility's profitability. By prioritizing FDA Title 21 material compliance and ISO 8573-1 Class 0 air purity from the very beginning of the design phase, plant engineers can safeguard their product integrity and their bottom line.

Upgrading to modern, variable-speed pneumatic technology not only ensures regulatory peace of mind but also provides unparalleled control over critical biological processes like yeast propagation and wort aeration. For plant managers ready to upgrade their sanitary infrastructure and eliminate contamination risks, evaluating advanced, oil-free solutions is the crucial next step. To see how modern equipment meets these rigorous industrial demands, explore the high-performance capabilities of the HC580 Medical Oxygenation Pump and ensure your facility remains audit-ready year-round.
